SQLC-214-097
66

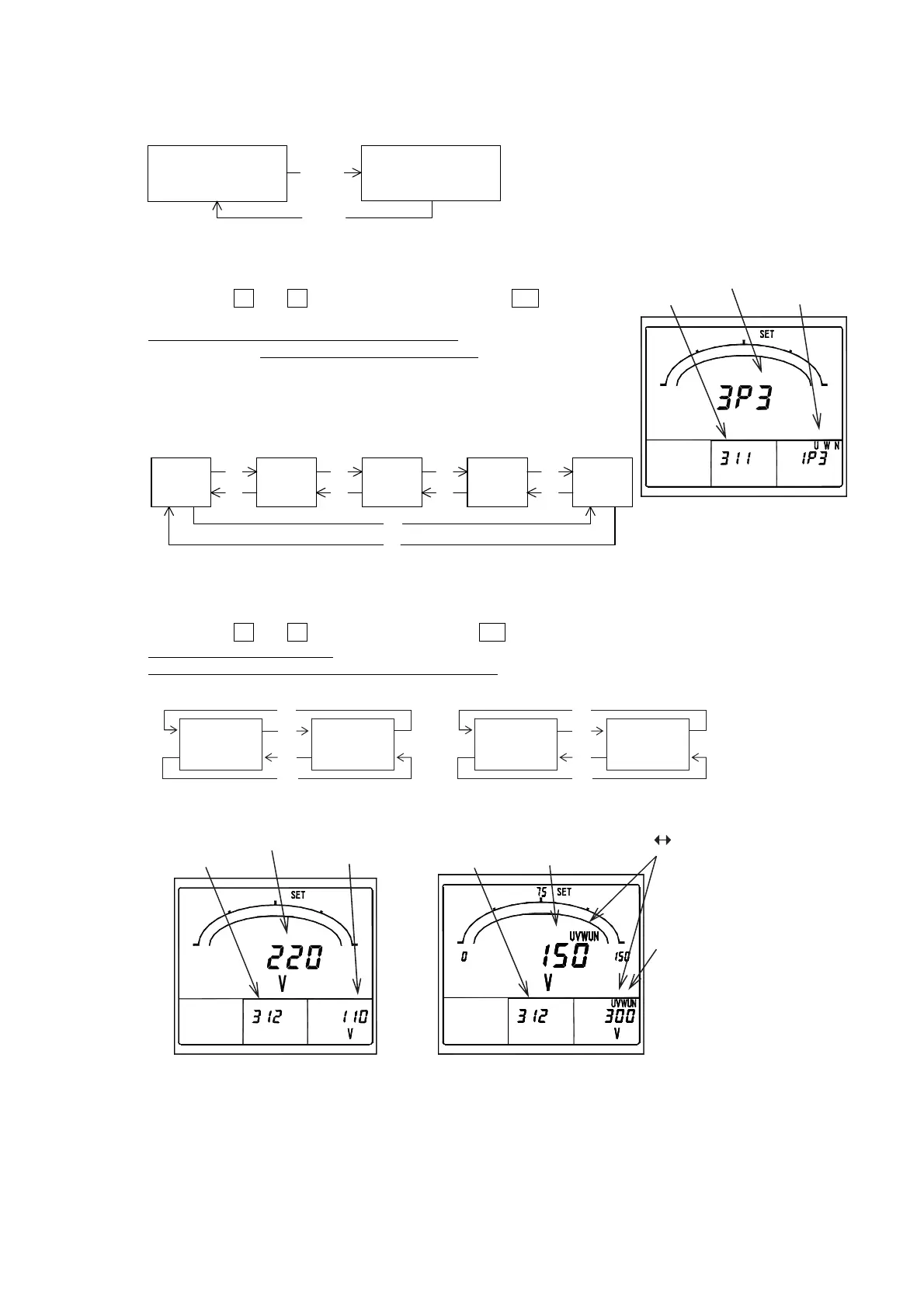

(1) 311 to 312 Input circuit setting 【All models】
Set the input circuit and phase wire and input voltage / phase-voltage full scale.
311
Input circuit and
phase wire change
RESET/
SHIFT
RESET/
SHIFT
312
Input voltage
◆ 311 Input circuit and phase wire change
Set the input circuit and phase wire (1φ3W).
Selection by
＋
and
－
, set value will be updated if
SET
is
pushed for 3 seconds.
Default setting：3φ3W(3φ3W, No designation),
1φ3W[U-N-W](1φ3W), 1φ2W(1φ2W)
<Caution>
・When this setting is changed, it will become the default setting of the
input circuit after all set values changing.
・The right measurement cannot be performed if setting of actual connection
and phase wire are different.
3φ3W
＋
－
1φ3W
(U-N-W
)
－
＋
1φ3W
(U-N-V)
＋
－
＋
－
1φ3W
(V-N-W)
＋
－
1φ2W
◆ 312 Input voltage
Set the input voltage (3φ3W, 1φ2W) or phase-voltage full scale (1φ3W).
In 3φ3W/1φ2W and 1φ3W, the contents of a setting are different.
Selection by
＋
and
－
, set value is updated by
SET
.
Default setting：300V(1φ3W)
Default setting：110V(3φ3W，1φ2W or no designation)
・3φ3W，1φ2W ・1φ3W
Setting of 300V, Output is AC0‐150V/DC4‐12mA.
Setting of 150V, Output is AC0‐150V/DC4‐20mA.
Input-voltage rating (3φ3W) Phase-voltage full scale (1φ3W)
UN WN alternate display
(Phase display U-W-N)
110V
＋
－
220V
－
＋
150V
＋
－
300V
－
＋
Input circuit and
phase wire change
Current setting
Setting No.
New setting
Current setting Setting No.
New setting
Current setting
Setting No. New setting
To Next Page
