Environmental Limits
Operang 32 to 120°F (0 to 49°C)
Shipping -40 to 140°F (-40 to 60°C)
Humidity 0-95% relave humidity (non-condensing)
Installaon
Supply Voltage
24 volts AC (-15%, +20%), 50-60 Hz, 12 VA, Class 2
only, non-supervised. All circuits, including supply
voltage, are power limited circuits.
Weight Approx 6 ounces (170 grams)
Case Material Flame retardant plasc
Dimensions

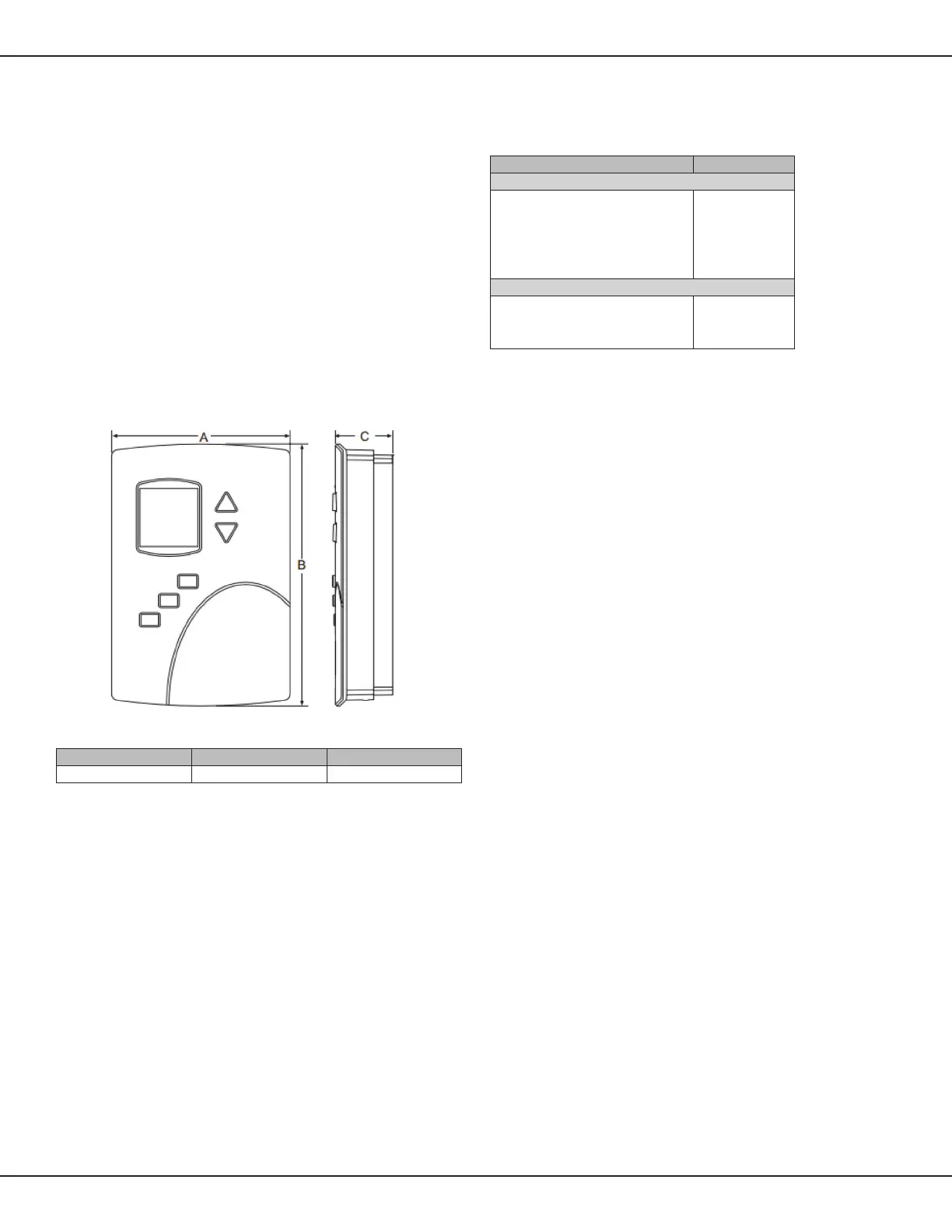

Figure 1: BACnet Thermostat Dimensions
Table 1: BACnet Thermostat Dimensions
A B C
3.50 in (89 mm) 5.12 in (130 mm) 1.12 in (29 mm)
BACnet™ Thermostat Product Numbers
Descripon Product Number
Roof Top Unit
Modulang or ON/OFF valves
One or two-stages heat
One or two stages cooling
Fan control
Economizer
2508034
Heat Pump Unit
3 heat, 2 cool
Fan Control
Economizer
2508036
Specicaons
