20 Installation Manual 3P581074-2D
DGE601A52
English

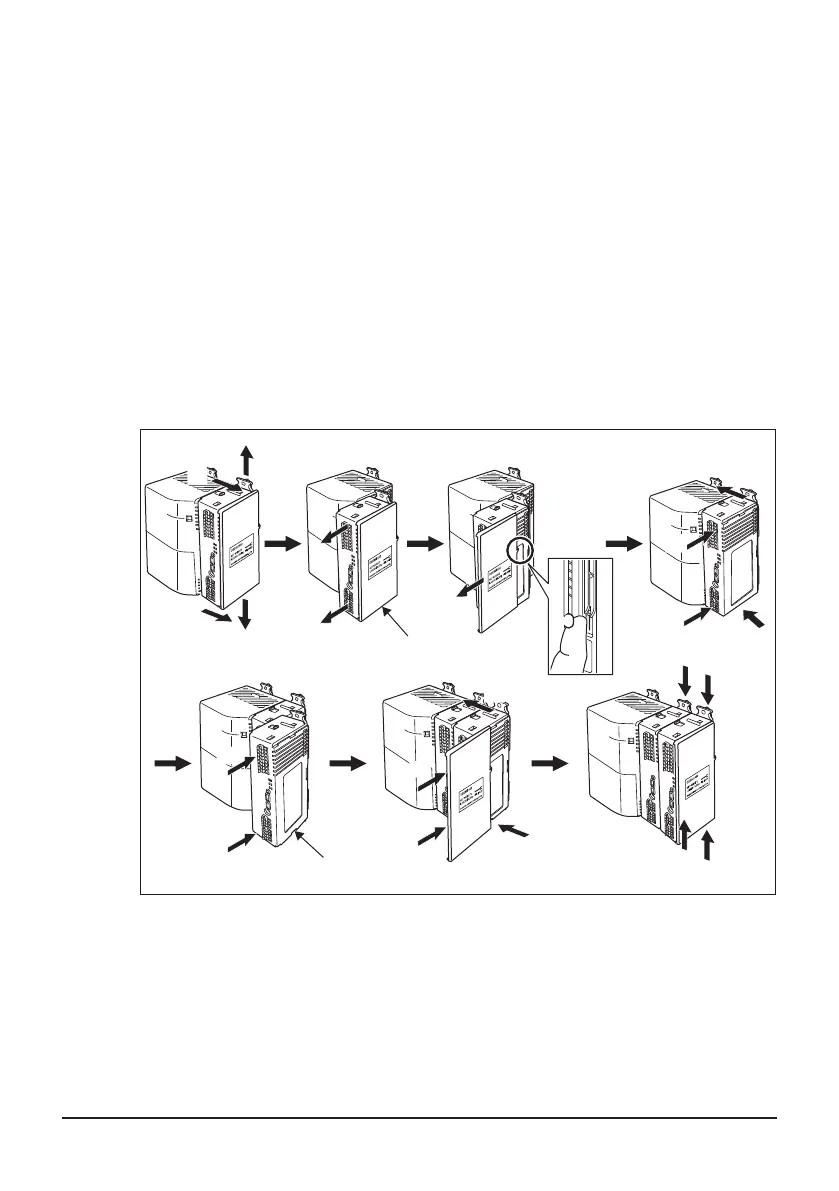

Steps for adding the DGE601A53
DIN rail mounting
(1) Set the upper and lower DIN rail locks to the “Open” position on the DGE601A53
which is furthest from the DGE601A51 or iTM.
(2) Set the upper and lower inter-unit locks to “UNLOCK”.
(3) Pull out the DGE601A53 a little bit.
(4) While pushing the knob attached to the edge of the end cover outward with your
nger, pull the end cover off and remove it.
(5) Return the DGE601A53 to the original position.
(6) Set the upper and lower inter-unit locks to “LOCK”.
(7) Slide in the DGE601A53 to be added along the SLOT rail.
(8) Set the upper and lower inter-unit locks to the “LOCK” position.
(9) Attach the end cover.
(10) Set all the upper and lower DIN rail locks to the “Closed” position.
Steps for adding the SLOT
(5)
(6)
(10)
(10)
(10)
(10)
(8)
(8)
(9)
(9)
(6)
(3)
(2)
(3)
(7)
(4)
(2)
(1)
(1)
(7)
(5)
“Open”
“Open”
End cover
DGE601A53
“UNLOCK”
“LOCK”
“UNLOCK”
“LOCK”
“LOCK”
“LOCK”
“Closed”
“Closed”
