Daikin DGE601A52 - DIII-NET Terminals and Wiring Diagram

Installation Manual 3P581074-2D
DGE601A52
29English

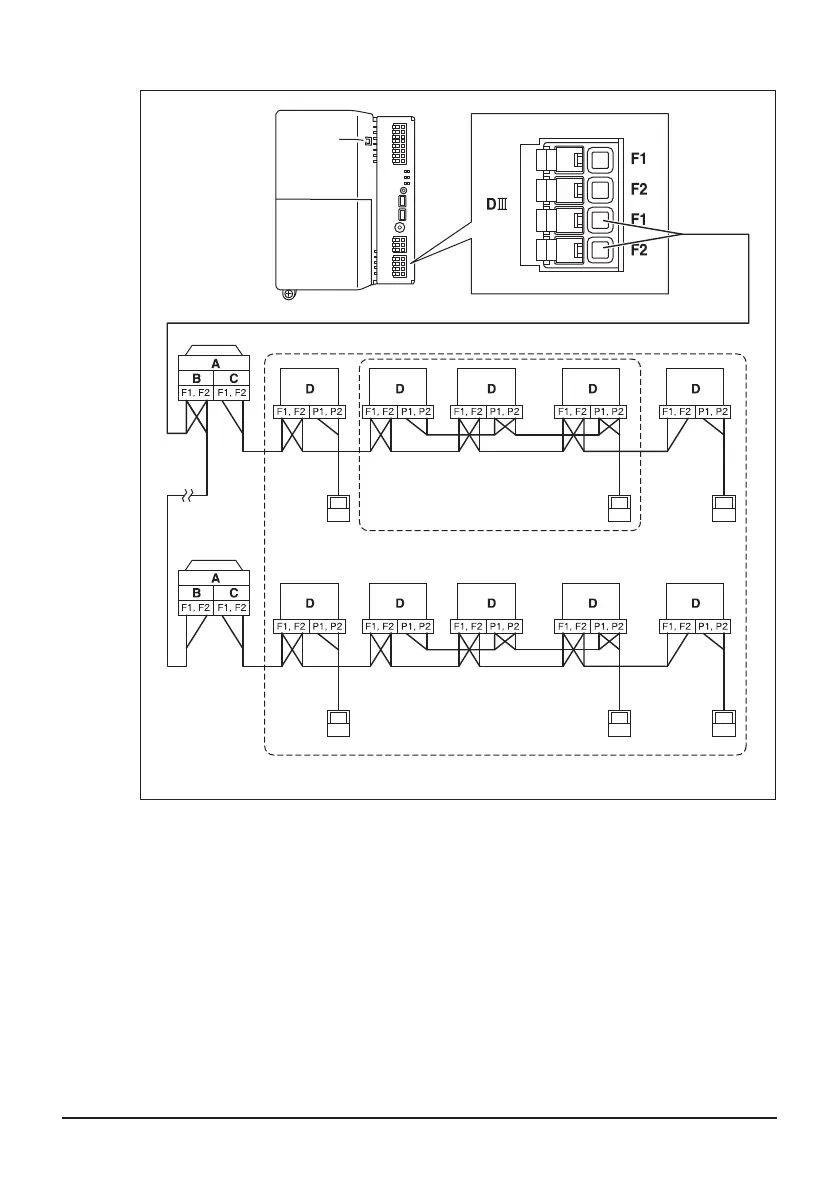

<Schematic connection diagram with air conditioners>
E
F
A Outdoor unit
B OUT - OUT communication (terminal)
C IN - OUT communication (terminal)
D Indoor unit
E A maximum of 16 indoor units can be connected to 1 remote controller group.
F A remote controller group can connect a maximum of 64 groups (64 indoor units) to
each DIII-NET communication line.
