30 Installation Manual 3P581074-2D
DGE601A52
English
NOTE
• What’s a remote controller group?
1 remote controller can simultaneously control a maximum of 16 indoor units.
This capability is referred to as group control. A remote controller group is a group
of indoor units controlled under the same remote controller.

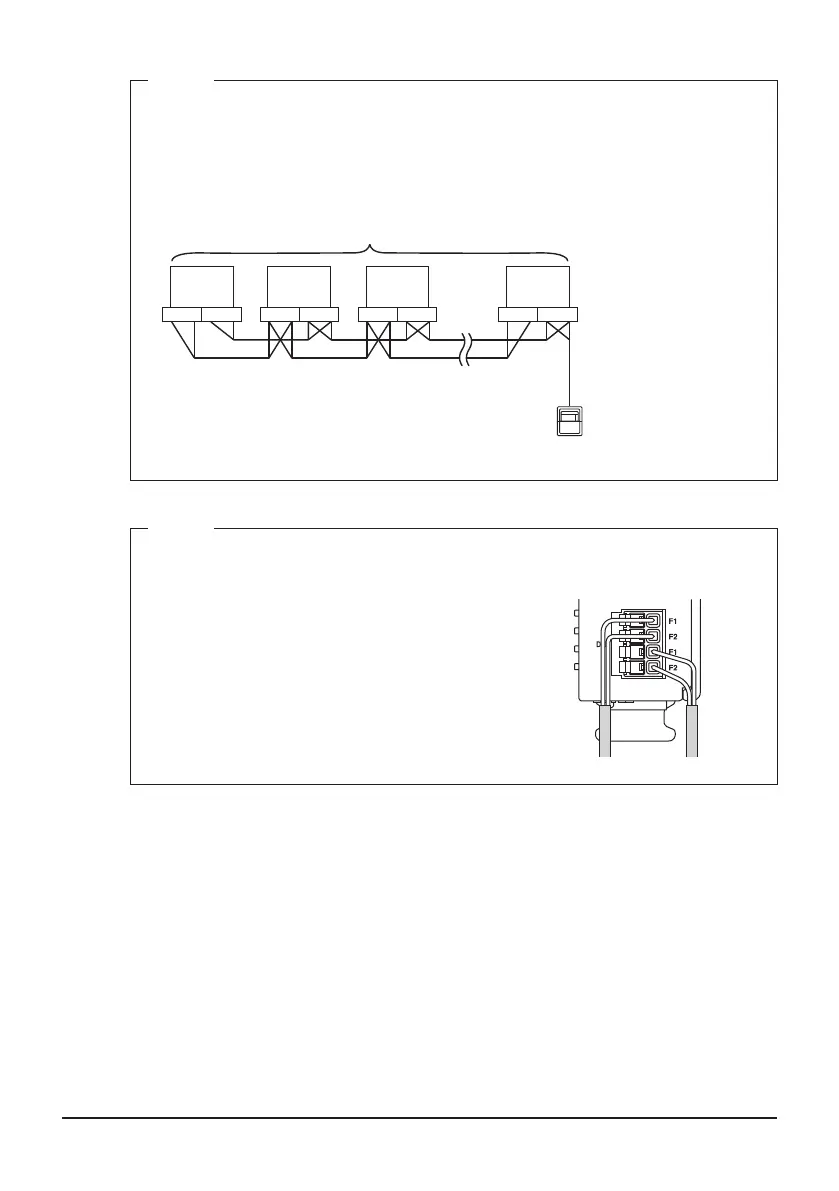

<Schematic drawing of a remote controller group>
F1, F2 P1, P2 F1, F2 P1, P2 F1, F2 P1, P2
F1, F2 P1, P2
A
A Max. 16 indoor units
NOTE
<DIII-NET connecting>
• When connecting multiple wires to the termi-
nal of DIII-NET
Connecting multiple wires to 1 terminal on
the DGE601A52 terminal block is not possi-
ble.
If you want to connect multiple wires, connect
the mark (F1 or F2) you want to connect to
the terminal with the same mark as shown in
the gure on the right.
