Installation Manual 3P581074-2D
DGE601A52
39English

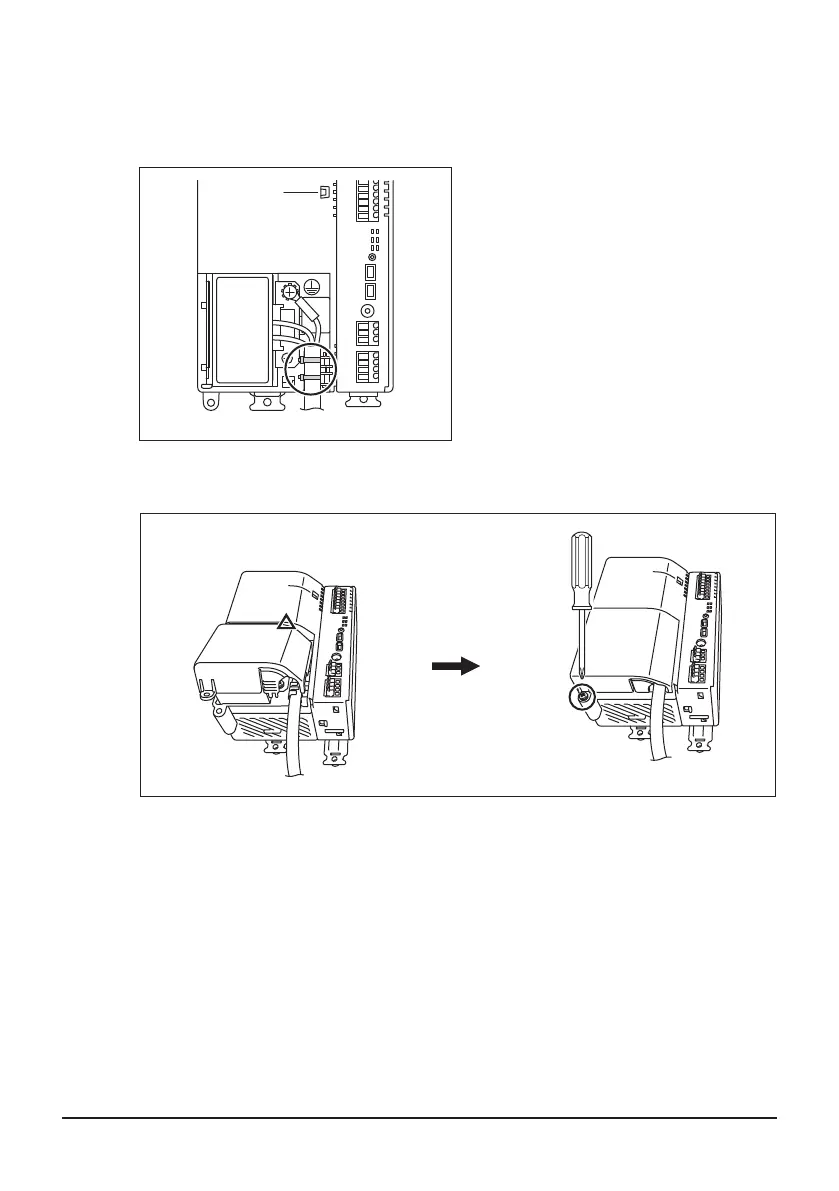

(4) Secure the sheath portion in 2 places with clamps.
Facing the front of the unit, insert the clamps from the right side and secure.
Firmly tighten until the power wire does not move anymore.
<Secure with clamps>
(5) Hook the power supply cover onto the tab in the area marked with a triangle, close
the cover, and secure it with the screw.
01_EN_3P581074-2D.indd 39 2021/06/25 14:12:12
