OM 1263 • MICROTECH UNIT CONTROLLER 16 www.DaikinApplied.com

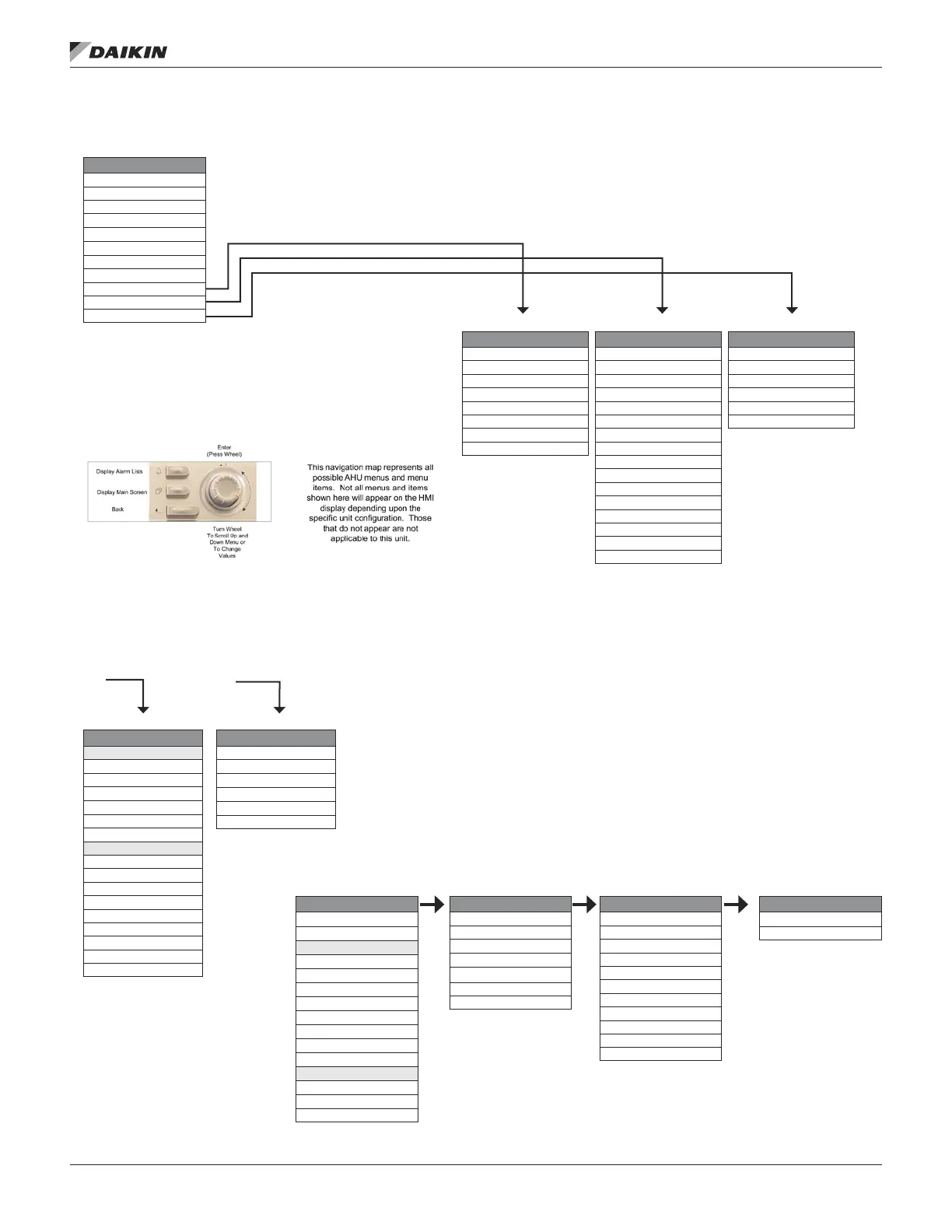

Figure 11: Trending – Keypad/Display Menu Structure
Figure 12: Expansion Information – Keypad/Display Menu Structure
See page 38
Trending
Trending Ena= No
Apply Chgs= No
Sample Time= 300s
TrendOnO= O
Export Data= No
Clear Trend= Done
TrendFull= Wrap
DefaultTrend= No
Points 1–8
Points 9–24
Points 25–30
Points 1–8
Point 1= INV%
Point 2= STDOut
Point 3= SAF%
Point 4= EF%
Point 5= OAD%
Point 6= RH%
Point 7= H/C Out
Point 8= OAT
Points 9–24
Point 9= Clg St
Point 10= Htg St
Point 11= Cap%In
Point 12= INVCmd
Point 13= CmpInLk
Point 14= PTD
Point 15= PTS
Point 16= EVI%
Point 17= EVO%
Point 18= OAFCmd
Point 19= OF1Spd
Point 20= OF2Spd
Point 21= Tc
Point 22= TcSpt
Point 23= DSH
Point 24= Teg
Points 25–30
Point 25= SSH
Point 26= SSHSpt
Point 27= HDRT1
Point 28= HDRT3
Point 29= OilSts
Point 30= OilMng
1 2
3 4
See page 42
IFB Comm Status
IFB SW Vers= VP0329008
IFBCommStatus=____
PrvCommStatus=_______
MM/DD/YYYY HH:MM:SS
ACS1 DataRcvd=_______
ACS3 DataRcvd=_______
See page 100
Fault Code Details
ACTIVE FAULT CODES
INVAlarmCode=______
Code Text
OF1AlarmCode=_______
Code Text
OF2AlarmCode=_______
Code Text
PREVIOUS FAULT CODES
PrvINVAlmCode=_______
Code Text
MM/DD/YYYY HH:MM:SS
PrvOF1AlmCode=______
Code Text
MM/DD/YYYY HH:MM:SS
PrvOF2AlmCode=______
Code Text
MM/DD/YYYY HH:MM:SS
See page 33
Active Alarms
Alm Count: xx Clr Alms= No
+Alarm 1: Alarm Type
+Alarm 2: Alarm Type
●
●
●
+Alarm 10: Alarm Type
See page 33
Alarm Lists
Active Alarms
Alarm Log
Event Log
LogCt:** Clr Log= -:No
+Event 1
+Event 2
●
●
●
+Event 49
+Event 50
Event Details
+Alarm: Alarm Type
Alarm Date
Alarm Time
Alarm Details
+/-Alarm 1: Alarm Type
MM/DD/YYYY HH:MM:SS
See page 33
Alarm Log
Log Count: xx Clr Log= No
+/-Alarm 1: Alarm Type
+/-Alarm 2: Alarm Type
●
●
●
+/-Alarm 10: Alarm Type
●
●
●
+/-Alarm 50: Alarm Type
To Next Page
