www.DaikinApplied.com 95 OM 1263 • MICROTECH UNIT CONTROLLER

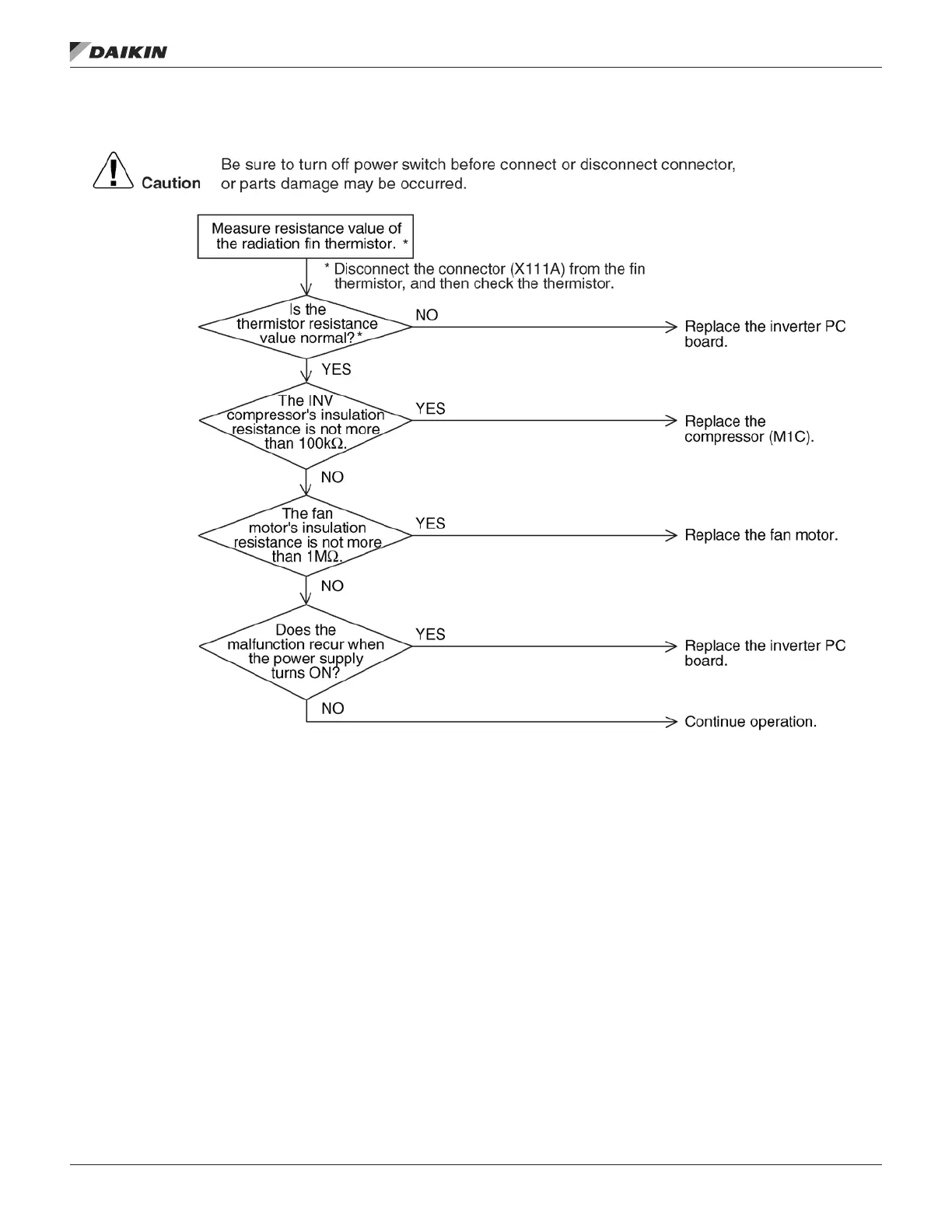

Figure 29: P4 – Malfunction of Inverter Radiating Fin Temperature Rise Sensor

See Figure 30 on page 96
