Daikin One+ - Page 15

15
1 2 R C
1 2 R C G W1 W2 Y1 Y2 O
DE
HUM
1 2 R C
1 2 R C W1 Y1 Y2 L O
2 C R
Daikin One +
4 pin
4 pin
Indoor Unit
Outdoor Unit
1
INSTALLING

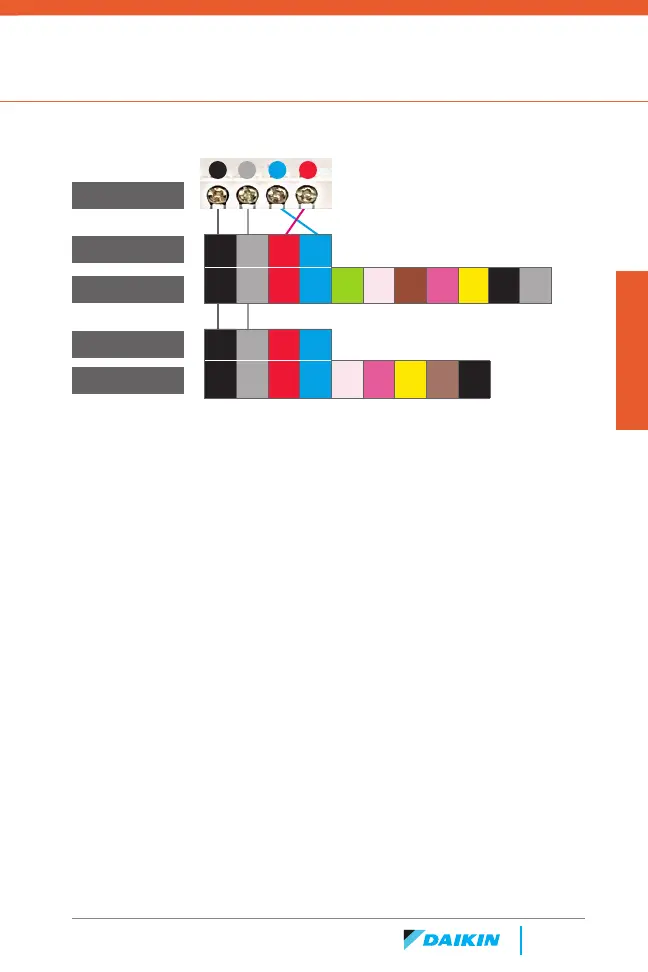

» Communicating indoor units with a 4 pin
connector supplied, will match 1, 2, R,
C on the 4 pin with 1, 2, R, C on the
indoor PCB.
» Communicating outdoor units with a
4 pin connector supplied, will match
1, 2 on the 4 pin with 1, 2 on the
outdoor PCB.
Note: The Daikin One+ is labeled 1, 2, C, R.
If wired incorrectly you will receive a
communication error, or your equipment may
not be recognized and displayed.
