Daikin One+ - Wiring Diagrams

14
R C G W1 W2 Y1 Y2 O
DE
HUM
1 2 R C G W1 W2 Y1 Y2 O
DE
HUM
R C W1 Y1 Y2 L O
1 2 R C W1 Y1 Y2 L O
2 C R
Daikin One +
9 pin
7 pin
Indoor Unit
Outdoor Unit
1

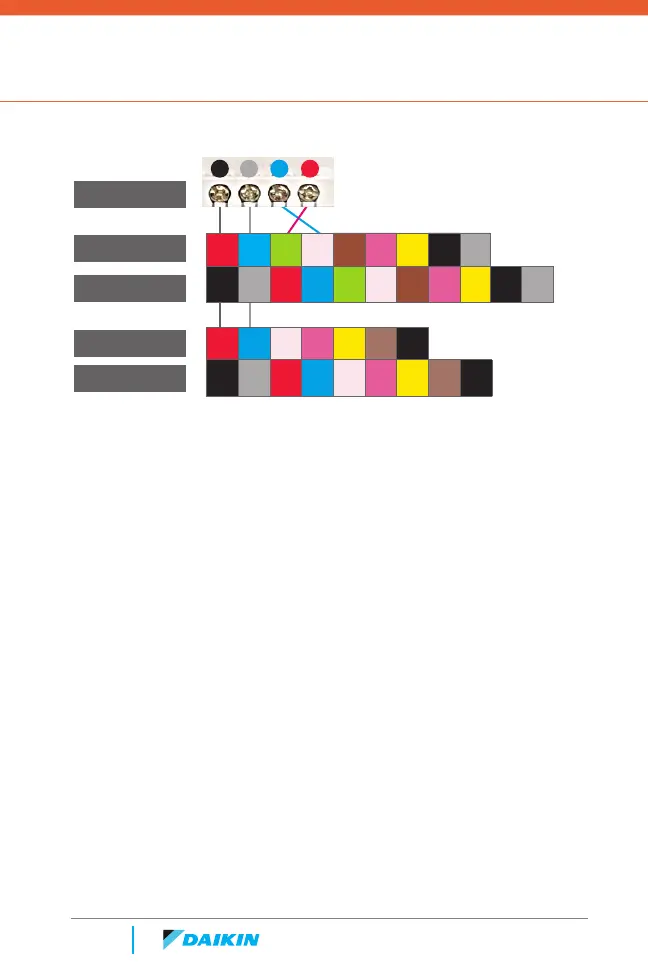

» Communicating indoor units supplied with
a 9 pin connector only, will move the connector
to the far left to pair R, C, G,
W1 on the 9 pin with 1, 2, R, C on the
indoor PCB.
» Communicating outdoor units supplied with a
7 pin connector only, will move the connector
to the far left to pair R, C on the 7 pin with
1, 2 on the outdoor PCB.
Note: The Daikin One+ is labeled 1, 2, C, R.
If wired incorrectly you will receive a
communication error, or your equipment may
not be recognized and displayed.
Wiring Diagrams
