Dalsa Spyder3 SG-11-01k80-00-R User Manual

Spyder3 GigE Vision User Manual
03-032-20027-02 DALSA
16

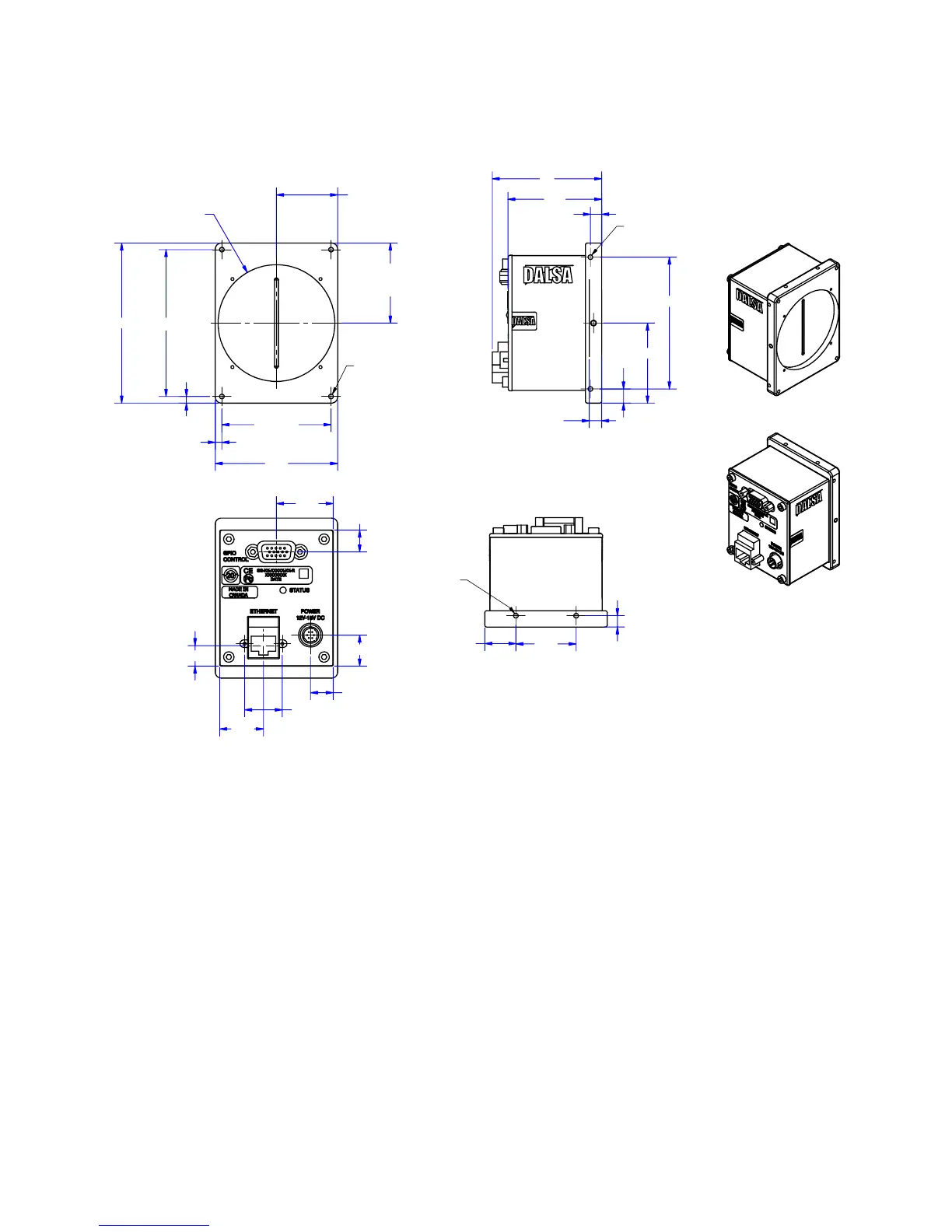

Figure 9: Spyder3 4k GigE Vision Camera Mechanical Dimensions
ø 62.0 - 4.5 DEEP
M3X0.5 THREAD
DEPTH 7.0 (4X)
85.0
78.0 (2X)
3.5
3.5
58.0 (2X)
65.0
42.500 ± 0.050
CCD IMAGING
CENTRE
32.500 ± 0.050
CCD IMAGING
CENTRE
M3X0.5 THREAD
DEPTH 5.0 (4X)
16.5
32.0
6.0 (2X)
M3X0.5 THREAD
DEPTH 5.0 (4X)
6.56
± 0.25
TO CCD
IMAGING
SURFACE
60
58
(50)
6.0 (2X)
7.5
70.0
42.5
UNITS: mm
30.1
11.6
16.5
12.0
23.2
10.9
20.0
