DeviceReset
5.9 Diagnostics
Generating a Test Pattern

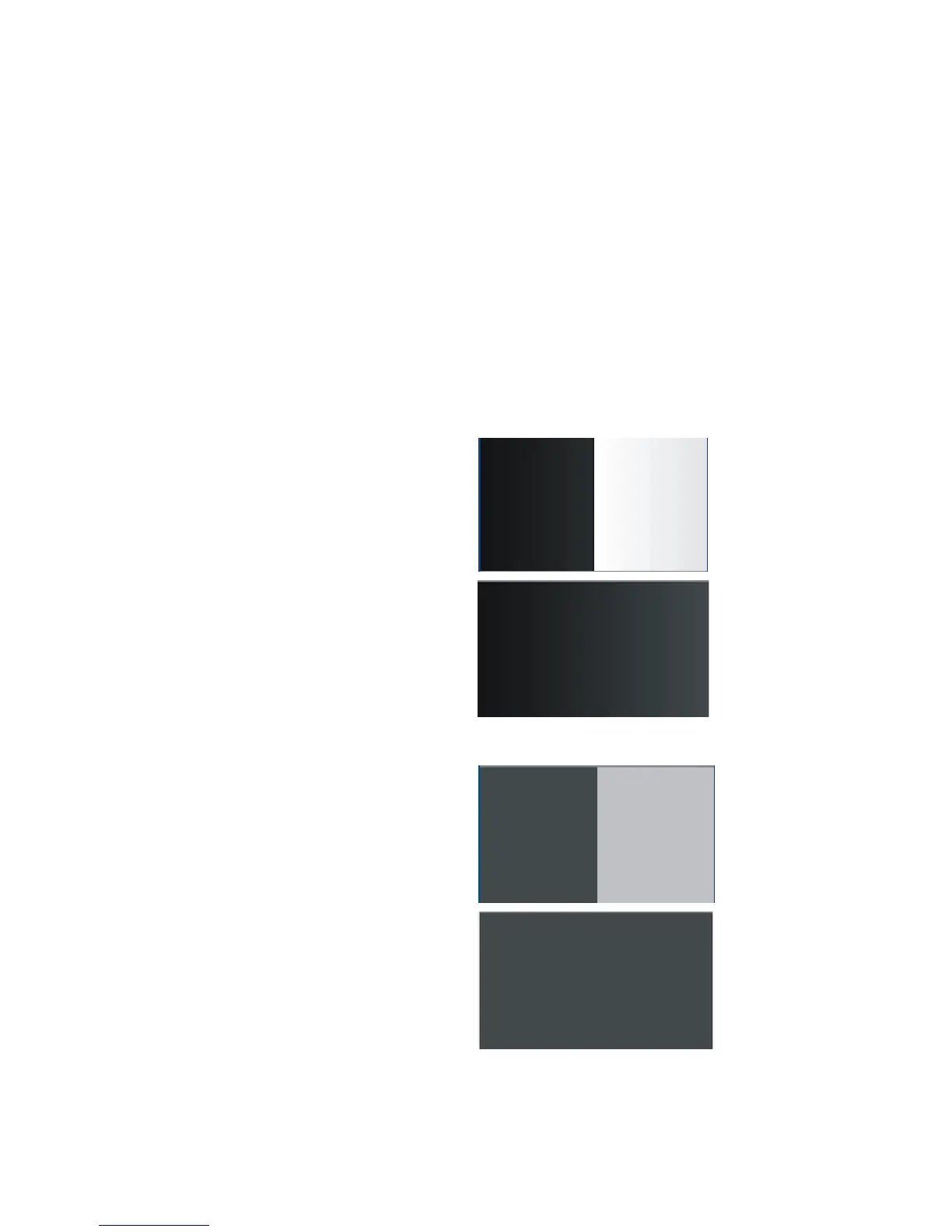

Generates a test pattern to aid in system debugging. The test patterns are useful for
verifying camera timing and connections. The following tables show each available test
pattern.
TestImageSelector
{Ramp12bits, Step8bits, iPORTTestPattern}
0
Video.
1
12 bit ramp test pattern.
2 tap model
1 tap model
2
8 bit step test pattern.
2 tap model
1 tap model
