Sensor Shift Direction
When in high sensitivity mode, you can select either forward or reverse CCD shift
direction. Selectable direction accommodates object direction change on a web and allows
you to mount the camera “upside down”.

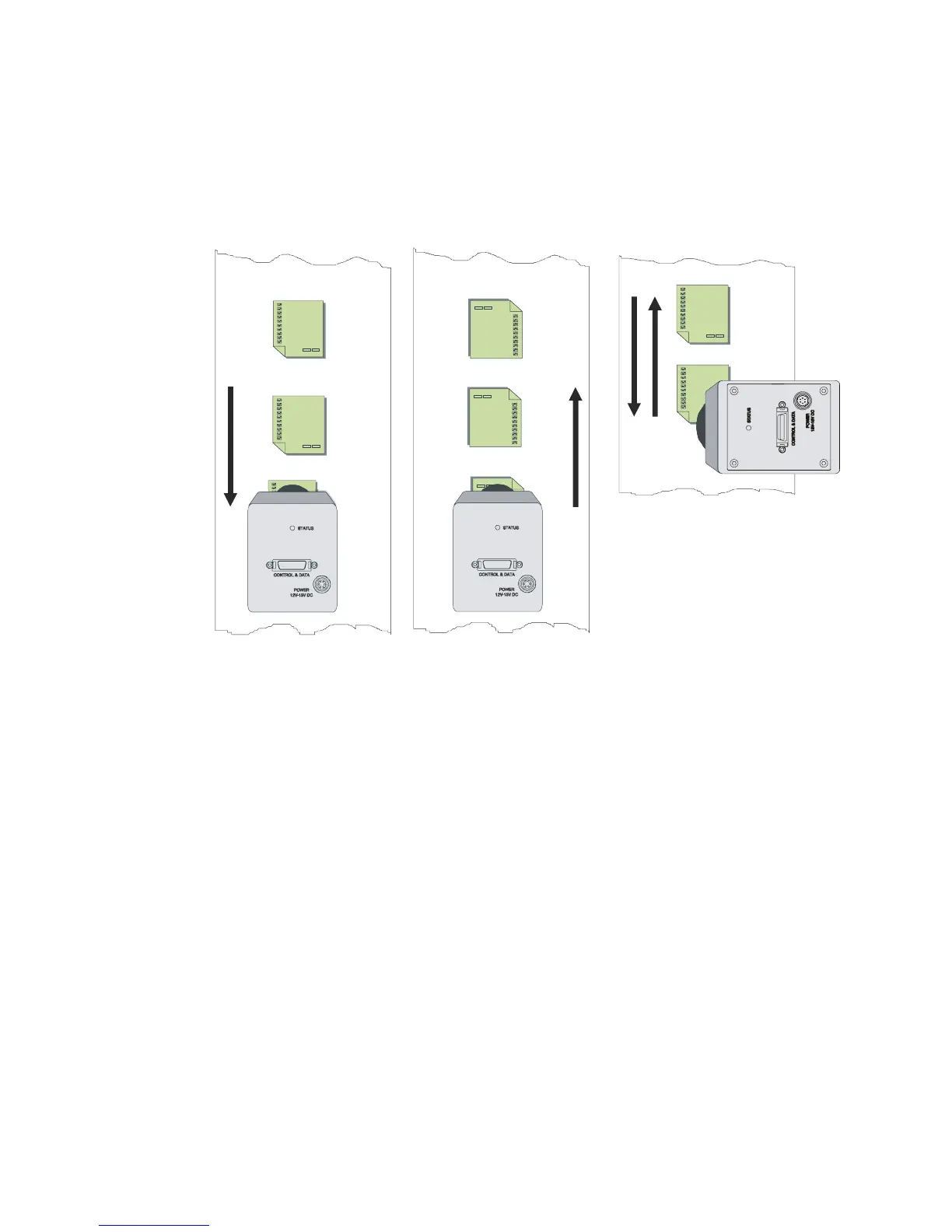

Figure 17: Object Movement and Camera Direction Example using an Inverting Lens
4k camera orientation
Camera should operate in
shift direction:
Se
n
so
r
S
hiftDir
ec
ti
o
n
1
reverse
Camera should operate in
shift direction:
Se
n
so
r
S
hiftDir
ec
ti
o
n
0
forward
Arrows denote
direction of
object movement
Pixel Format
Selects the camera’s bit depth.
PixelFormat = {Mono8, Mono12}
