98
DISASSEMBLY
Dana Incorporated TSM-0238 - 6000 Transmission Service Manual

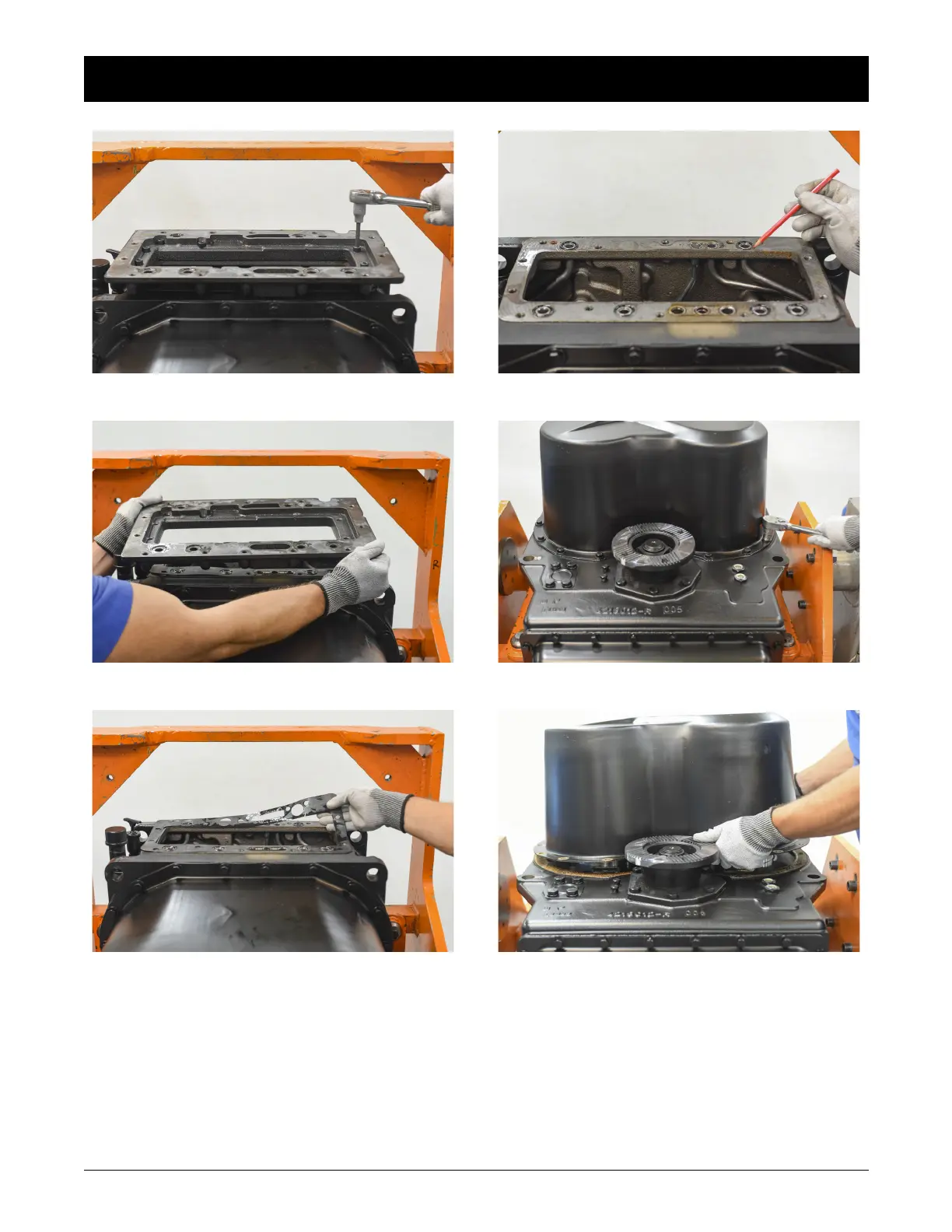

FIGURE 6: Remove 12x cap-screws (size 8).
FIGURE 7: Remove adaptor plate.
FIGURE 8: Remove gasket.
FIGURE 9: Remove 6x O-rings.
FIGURE 10: Remove 26x cap-screws + washers (size 9/16).
FIGURE 11: Remove cover.
