The hollow/recess on the individual half-globes in the centring
tool set, must ALWAYS face towards the grinder. Were the
spotfacings are tapped into the Half-Globes. This is especially
7.2.1 Installation of centring
tool set w/ brushes
important for the unit mounted at the rotation point (8.4), as
it would otherwise tighten and prevent the smooth rotation of
the grinder.

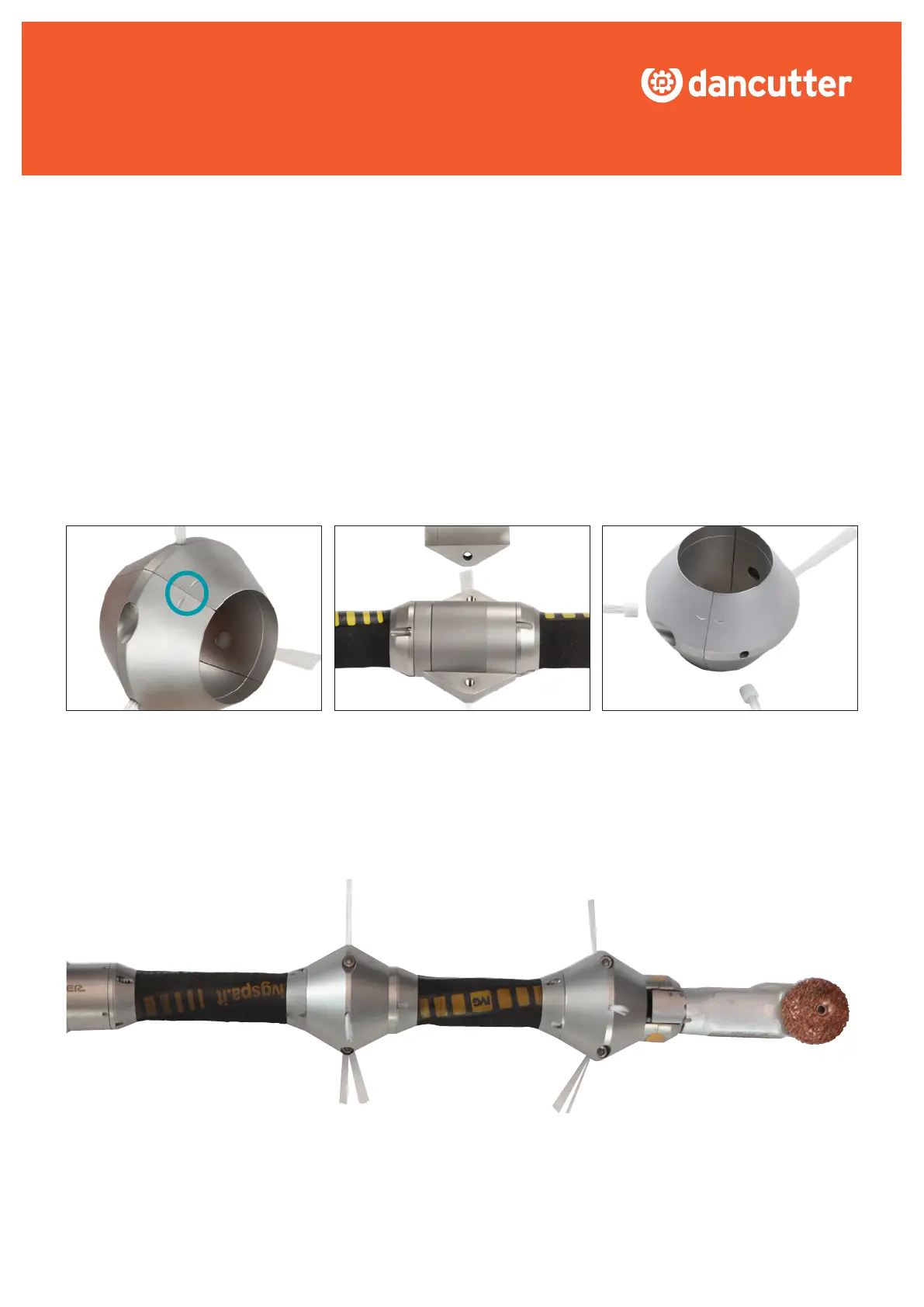

Position the spotfacings facing forwards.
Installation of centring tool set
The centring kit must be tightened so
that the increase on the trailing edge
of the individual places on the cutter is
continued up the individual blocks.
When operating in the downpipes, mount
the supplied brushes into the holes on the
individual blocks in the centring tool set.
