7.2.2 Installation of centring tool set
w/ wheels

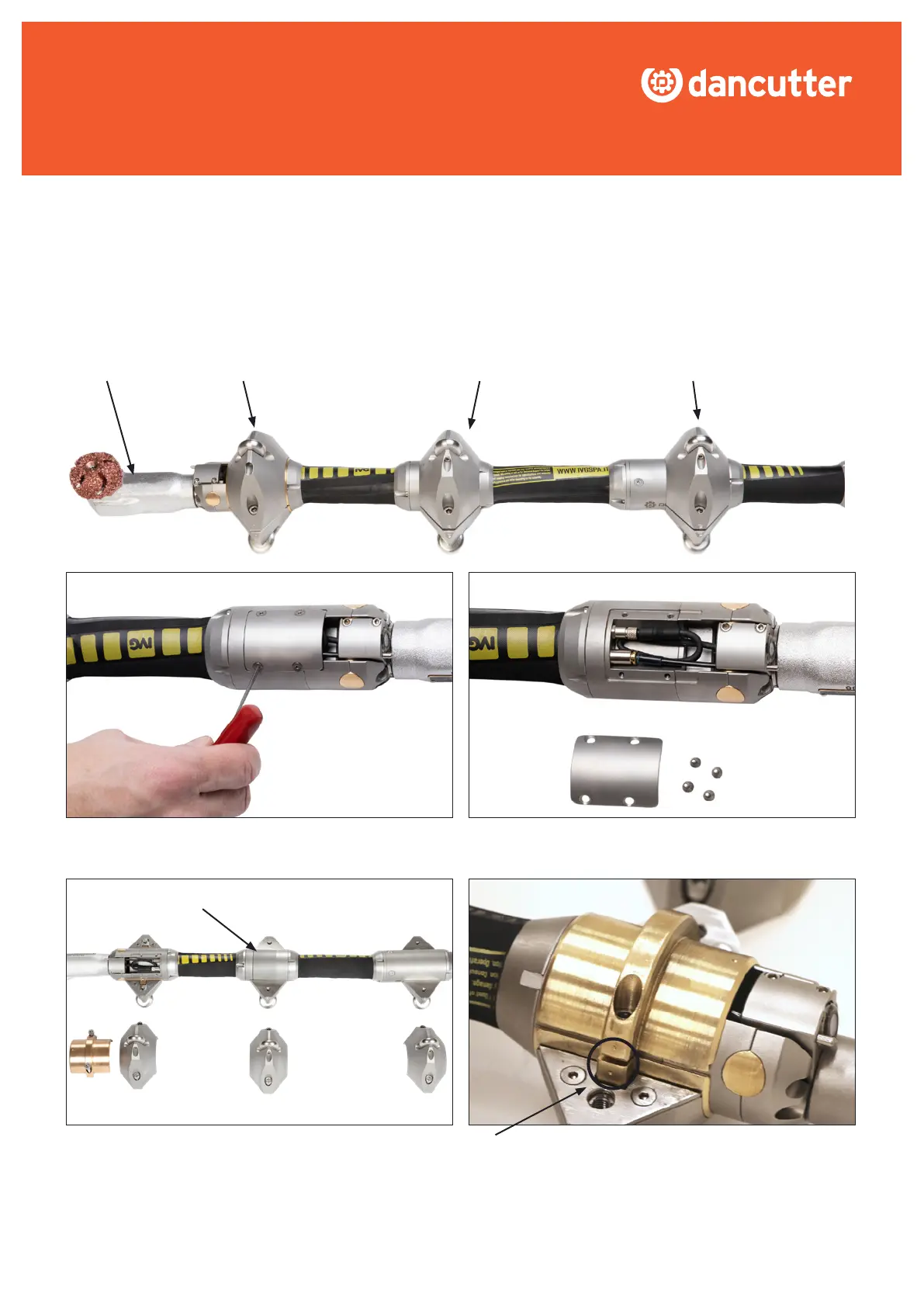

Place the cutter underneath the three centrings rings so that
therotarycentringringisushwiththegrinder.
NOTE! Place the middle centring ring so that the internal clear-
ance allows the slip ring system to rotate.
Slip ring
Rotary Grinder Fixed Fixed
IMPORTANT! Remove the cover before installing the centring
tool set.
There is a spotfacing on the periphery of each part of the cen-
tring tool set. When installing, it is VERY IMPORTANT that the
spotfacings are positioned one on top of the other.
