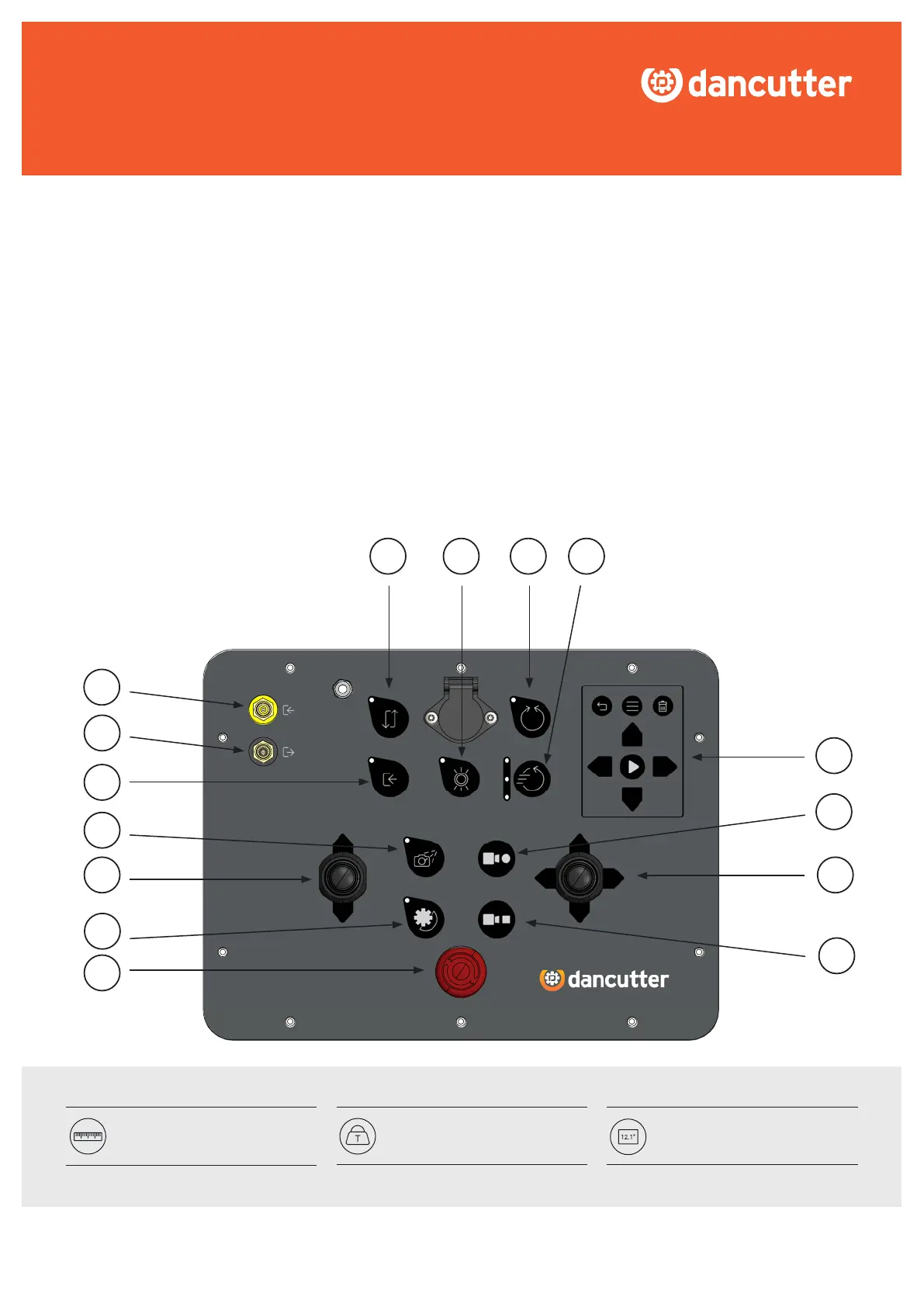

7.4 DC Control Unit 2.0
7
8 9 10 11
12
13
14
15
6
1
2
3
4
5
With the DC Control Unit 2.0 you can control your DC SUPER FLEX and DC MAXI FLEX. Attach the cable from the coiler and the
power cable to the control unit and it will power up. Please protect your control unit from water as it is not waterproof when open.
The following will describe the function of each button/joystick on the control unit.
L: 350MM - B: 300 MM -
H: 150 MM
WEIGHT: 7 KG, 15.4 LB
DISPLAY: 12.1”
A A
B B
C C
D D
E E
F F
G G
H H
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Rev. No.:
R01
Kontrol panel, komplet
Dwg. No.:
F89030
Angle:
Surface treatment: None
Material:
Unspecified tolerances according to DS/ISO 2768: m
Remove burrs & break sharp edges
Unspecified surface roughness:
Ra 1.6
LV
LV
02-05-2023
Date
Revised
Drawn
Scale
1:1
A2
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLO PROPERTY OF
DANCUTTER A/S. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DANCUTTER
A/S IS PROHIBITED.
Y:\Produktion\Dancutter\Dokumentation\DC SUPER FLEX\Produktions tegning\6-DC SUPER FLEX CONTROL UNIT\Ny SF styrepult\
1. STOP
2. GRINDER
3. LEFT JOYSTICK
4. CAMERA CLEAN
5. EXTERNAL VIDEO SOURCE
6. VIDEO IN
7. VIDEO OUT
8. REVERSE FORWARD/BACKWARD
9. LIGHT
10. REVERSE ROTATION
11. ROTATION SPEED
12. PLAYBACK CONTROL PANEL
13. START RECORDING
14. RIGHT JOYSTICK
15. STOP RECORDING
