VI.KT
.G6.02
44 | © Danfoss | 2016.05
*

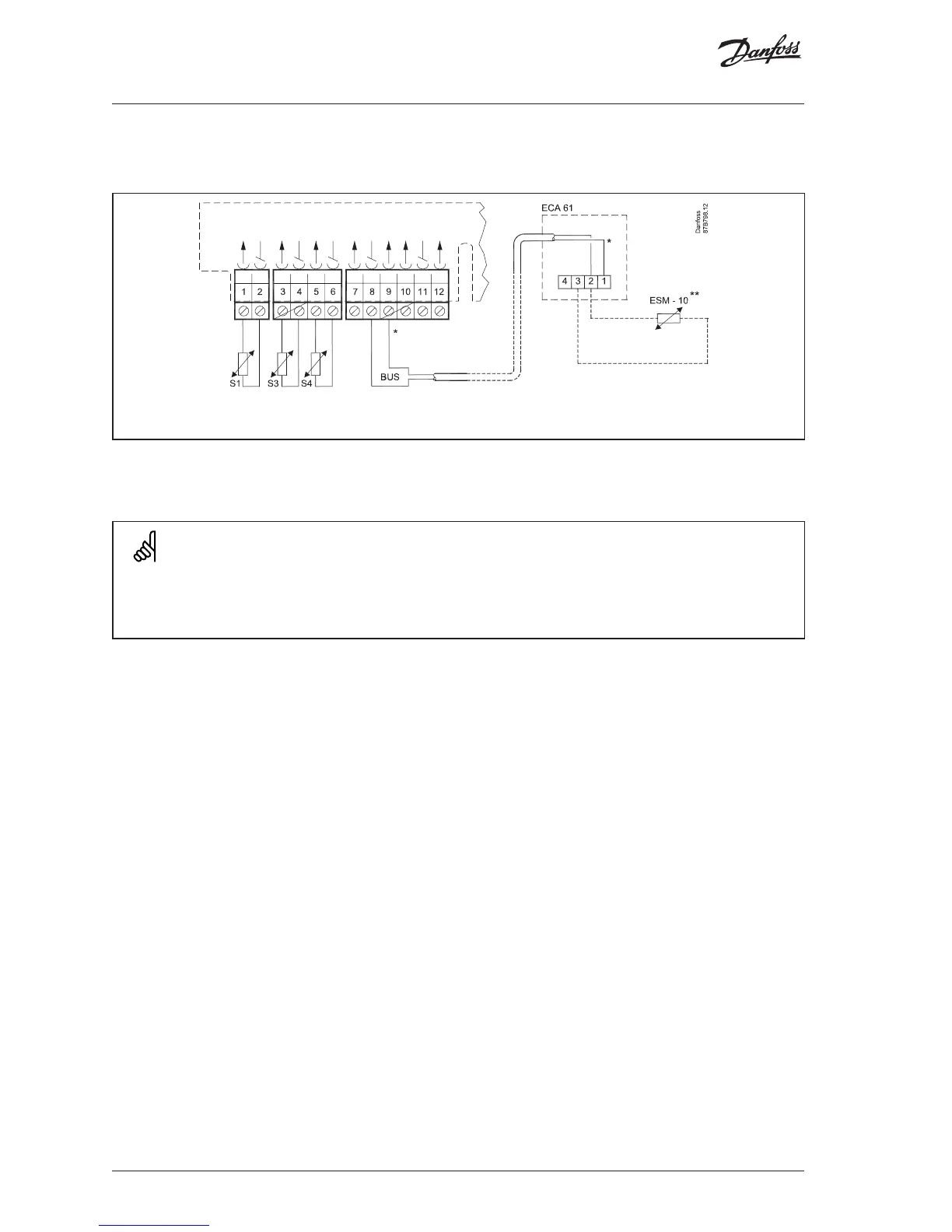

Connec
t ECL termin
al 9 to 1 and term
inal 8 to 2.
Th
e ECA 6
1 is ac
ti
vated by t
he set
tin
g in line 70
10.
Th
e ECA 6
1 is p
owere
d by the ECL BUS wh
ich mea
ns that the B
US must b
e act
ive.
Th
e BUS is ac
tivat
ed by se
tti
ng the cont
rolle
r addr
ess to 1
5 (l
ine 71
99).
Connec
ting the room pane
l / remote control
Installation
43
45
Table of Contents
Default Chapter
3
Table of Contents
3
Table of Contents
5
Introduction
5
Settings Overview
6
Daily Use
7
Temperatures
7
Select Control Mode
8
Set Your Personal Schedule
8
Maintenance
10
Date - Time 1000
10
Flow Temp. (Flow Temperature Control) 2000
10
Slope 2175
11
Slope
11
Displace (Parallel Displacement) 2176
13
Temp. Min. (Flow Temp. Limit, Min.) 2177
13
Temp. Max. (Flow Temp. Limit, Max.) 2178
13
Room T Limit (Room Temperature Limitation) 3000
14
Intgr. Time (Time Constant for Room Temp.) 3015
16
Gain - Max. (Room Temp. Limitation, Max.) 3182
16
Gain - Min. (Room Temp. Limitation, Min.) 3183
16
Return T Limit (Return Temp. Limitation) 4000
17
Limit (Return Temp. Limitation) 4030
17
Gain - Max. (Return Temp. Limitation - Max. Influence) 4035
18
Gain - Min. (Return Temp. Limitation - Min. Influence) 4036
18
Intgr. Time (Time Constant for Return Temp. Limitation) 4037
19
Priority (Priority for Return Temp. Limitation) 4085
19
Optimize 5000
20
Auto-Reduct (Setback Temp. Dependent on Outdoor Temp.) 5011
20
Boost 5012
20
Ramp (Reference Ramping) 5013
21
Optimizer (Optimizing Time Constant) 5014
21
Based on (Optimization Based on Room / Outdoor Temp.) 5020
22
Total Stop 5021
23
S1 T Filter (Outdoor Temp. Filter) 5081
23
Cut-Out (Limit for Heating Cut-Out) 5179
24
Control Param. (Control Parameters) 6000
25
Motor Prot. (Motor Protection) 6174
25
Xp (Proportional Band) 6184
25
Tn (Integration Time Constant) 6185
25
M1 Run (Running Time of the Motorized Control Valve) 6186
25
Nz (Neutral Zone) 6187
26
Application 7000
28
ECA Address (Choice of Room Panel / Remote Control) 7010
28
P1 Exercise (Pump Exercise) 7022
28
M1 Exercise (Valve Exercise) 7023
28
Actuator (Gear Motor / Thermo Actuator) 7024
28
DHW Prior. (Closed Valve / Normal Operation) 7052
29
P1 Frost T (Frost Protection) 7077
29
P1 Heat T (Heat Demand) 7078
30
Standby T (Standby Temperature) 7093
30
Ext. (External Override) 7141
30
Knee Point 7162
31
Min. on Time (Min. Activation Time Gear Motor) 7189
31
Daylight (Daylight Saving Time Changeover) 7198
31
ECL Address (Master / Slave Address) 7199
31
Type 7600
32
Service 8000
33
Code No. 8300
33
Ver. (Version No.) 8301
33
Backlight (Display Brightness) 8310
33
Contrast (Display Contrast) 8311
33
Language 8315
34
MOD Address (MODBUS Address) 8320
34
Installation
35
Mounting the ECL Comfort Controller
35
Electrical Connections - 230 V A.C. - in General
36
Electrical Connections - 24 V A.C. - in General
37
Connecting the Temperature Sensors and the ECL BUS
38
How to Identify Your System Type
39
Adapting the ECL Comfort 110 Controller
41
English
41
Manual Control
42
Placing the Temperature Sensors
43
Connecting the Room Panel / Remote Control
44
Checklist, Electrical Connections
45
Frequently Asked Questions
46
Definitions
47
*Viktg602
52
