Danfoss DSH Series Application Guide

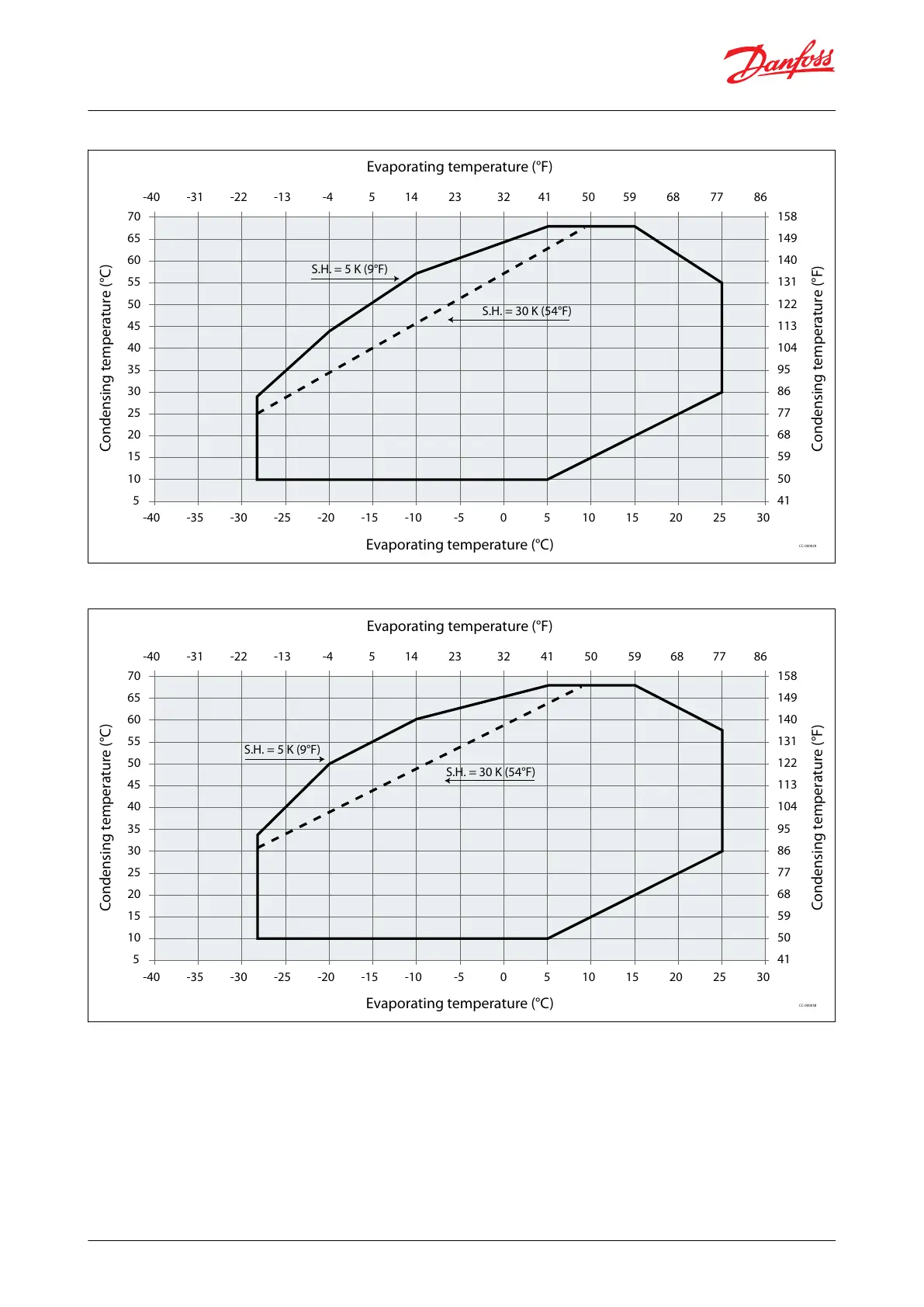

Figure 7: R452B / R454B - DSH090 to DSH105 (Max. DGT 150°C)
Condensing temperature (°C)
Evaporating temperature (°C)
Evaporating temperature (°F)
Condensing temperature (°F)
5
10
15
20
25
30
35
40
45
50
55
60
65
70
-40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30
-40 -31 -22 -13 -4 5 14 23 32 41 50 59 68 77 86
41
50
59
68
77
86
95
104
113
122
131
140
149
158
S.H. = 30 K (54°F)
S.H. = 5 K (9°F)
CC-000039
Figure 8: R452B / R454B - DSH120 to DSH184 (Max. DGT 150°C)
Condensing temperature (°C)
Evaporating temperature (°C)
Evaporating temperature (°F)
Condensing temperature (°F)
5
10
15
20
25
30
35
40
45
50
55
60
65
70
-40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30
-40 -31 -22 -13 -4 5 14 23 32 41 50 59 68 77 86
41
50
59
68
77
86
95
104
113
122
131
140
149
158
S.H. = 5 K (9°F)
S.H. = 30 K (54°F)
CC-000038
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 19
Scroll compressors, DSH090 to DSH600 | Operating envelope data
