Danfoss DSH Series Application Guide

Compressors compatible R410A only
Table 42: Single pack compressors compatible R410A only
Compressor model
Connections
Motor protection
Code no.
3
4
7
9
208-230/3/60
380-415/3/50
460/3/60
575/3/60
380-400/3/60
DSH090
Brazed
Internal
120H1507
-
120H1513
120H1515
DSH105
Brazed
Internal
120H1517
-
120H1523
120H1525
DSH120
Brazed
Internal
120H1527
-
120H1533
120H1535
DSH140
Brazed
Internal
120H1537
-
120H1543
120H1545
DSH161
Brazed
Internal
120H1547
-
120H1553
120H1555
DSH184
Brazed
Internal
120H1557
-
120H1563
120H1565
DSH240
Brazed
Module 24V AC
(1)
120H1291
120H1331
120H1299
120H1315
DSH240
Brazed
Module 110-240V
(1)
120H1289
120H1329
120H1298
120H1313
DSH295
Brazed
Module 24V AC
(1)
120H1287
120H1327
120H1297
120H1311
DSH295
Brazed
Module 110-240V
(1)
120H1285
120H1325
120H1296
120H1309
(1)
Electronic motor protection, module located in terminal box.
Mounting kit for DSH240-295-381-485-600 single compressor applications : Ref 8156138
(1)
Electronic motor protection, module located in terminal box.
Mounting kit for DSH240-295-381-485-600 single compressor applications : Ref 8156138
Industrial pack
Compressors compatible R454B, R452B and R410A

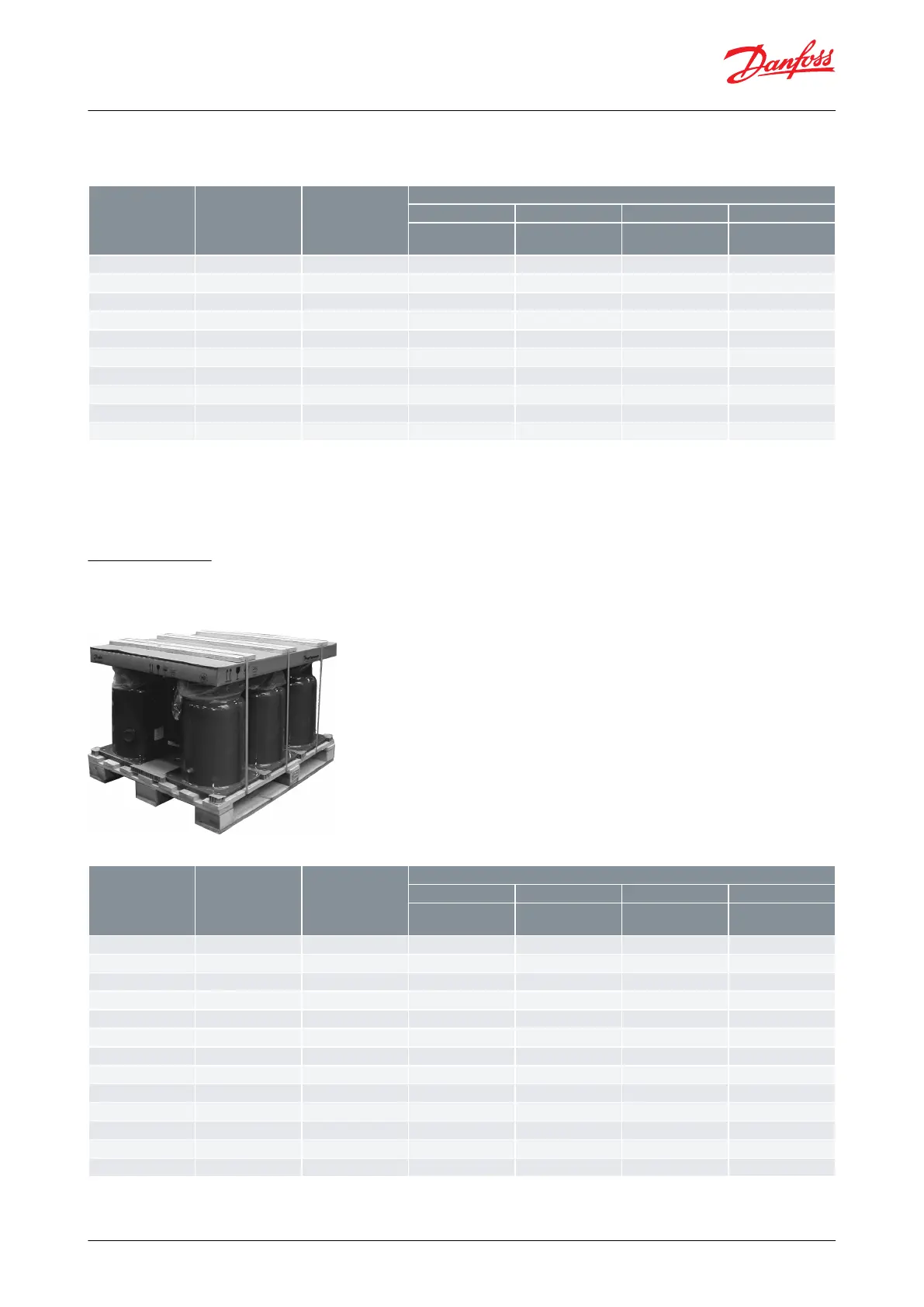

Figure 70: Industrial pack
Table 43: Industrial pack compressors compatible R454B, R452B and R410A
Compressor model
Connections
Motor protection
Code no.
3
4
7
9
208-230/3/60
380-415/3/50
460/3/60
575/3/60
380-400/3/60
DSH090
Brazed
Internal
120H1865
120H1512
120H1863
120H1861
DSH105
Brazed
Internal
120H1859
120H1522
120H1857
120H1855
DSH120
Brazed
Internal
120H1853
120H1532
120H1851
120H1849
DSH140
Brazed
Internal
120H1807
120H1542
120H1847
120H1845
DSH161
Brazed
Internal
120H1809
120H1552
120H1843
120H1841
DSH184
Brazed
Internal
120H1811
120H1562
120H1839
120H1837
DSH240
Brazed
Module 24V AC
(1)
120H1748
120H1375
-
120H1725
DSH240
Brazed
Module 110-240V
(1)
120H1750
120H1373
-
120H1727
DSH295
Brazed
Module 24V AC
(1)
120H1744
120H1371
-
120H1721
DSH295
Brazed
Module 110-240V
(1)
120H1746
120H1369
-
120H1723
DSH381
Brazed
Module 24V AC
(1)
120H1740
120H1367
-
20H1717
DSH381
Brazed
Module 110-240V
(1)
120H1742
120H1365
-
120H1719
DSH485
Brazed
Module 24V AC
(1)
120H1736
120H1363
-
120H1713
