Danfoss DSH Series Application Guide

M A D E I N F R A N C E
Model no : DSH485B4APC
Serial no : JC112345678
380-415V 3~50Hz
460V 3~60Hz
LR 389A MAX OPER. 91 A
Thermally protected system
P.E.D.
Marking
PS
TS Max
TS Min
Volume
Lubricant:P.O.E. 160SZ
LP Side HP Side
31,20 bar
52,0 C
-35,0 C
28,5 L
48,70 bar
150 C
-35 C
3,9 L
H
2019
Refrigerant: R410A R452B R454B
876543210
PROTECTED BY DOMESTIC AND FOREIGN PATENTS
0038 089
1
5
6
7
2
3
4
1
2
3
4
5
6
7
Model number
Serial number
Approvals
Refrigerant
Supply voltage, Starting current & Maximum
operating current
Housing service pressure
Factory charged lubricant
Product identication
Name Plate

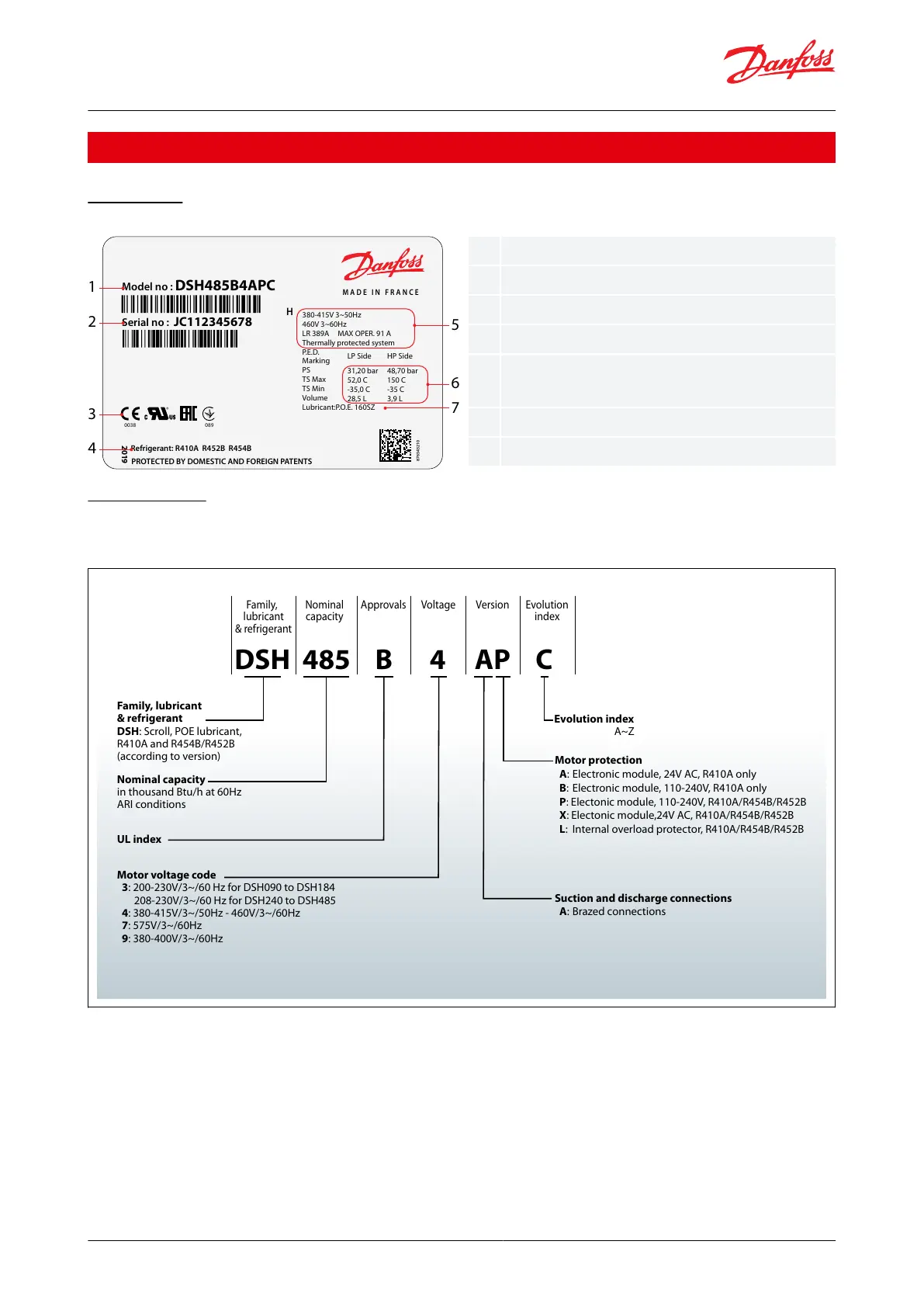

Figure 4: Name Plate
Nomenclature
The example below presents the compressor nomenclature which equals the technical reference as shown on the
compressor nameplate. Code numbers for ordering are listed in section Ordering.
Family, lubricant
& refrigerant
DSH: Scroll, POE lubricant,
R410A and R454B/R452B
(according to version)
Motor protection
A: Electronic module, 24V AC, R410A only
B: Electronic module, 110-240V, R410A only
P: Electonic module, 110-240V, R410A/R454B/R452B
X: Electonic module,24V AC, R410A/R454B/R452B
L: Internal overload protector, R410A/R454B/R452B
Suction and discharge connections
A: Brazed connections
Family,
lubricant
& refrigerant
Nominal
capacity
Approvals Voltage Version Evolution
index
Evolution index
A~Z
C4DSH B AP485
Motor voltage code
3: 200-230V/3~/60 Hz for DSH090 to DSH184
208-230V/3~/60 Hz for DSH240 to DSH485
4: 380-415V/3~/50Hz - 460V/3~/60Hz
7: 575V/3~/60Hz
9: 380-400V/3~/60Hz
UL index
Nominal capacity
in thousand Btu/h at 60Hz
ARI conditions
Scroll compressors, DSH090 to DSH600 | Product identication
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 8
