Danfoss DSH Series Application Guide

Code no.
Description
Application
Packaging
Pack size
8153013
Solder sleeve P07 (1"3/4 Rotolock - 7/8" ODF)
Models with 1"3/4 rotolock connection (R410A)
Multipack
10
8153003
Solder sleeve P10 (1"3/4 Rotolock - 1"3/8 ODF)
Models with 1"3/4 rotolock connection (R410A)
Multipack
10
8153006
Solder sleeve P03 (2"1/4 Rotolock - 1"5/8 ODF)
Models with 2"1/4 rotolock connection (R410A)
Multipack
10

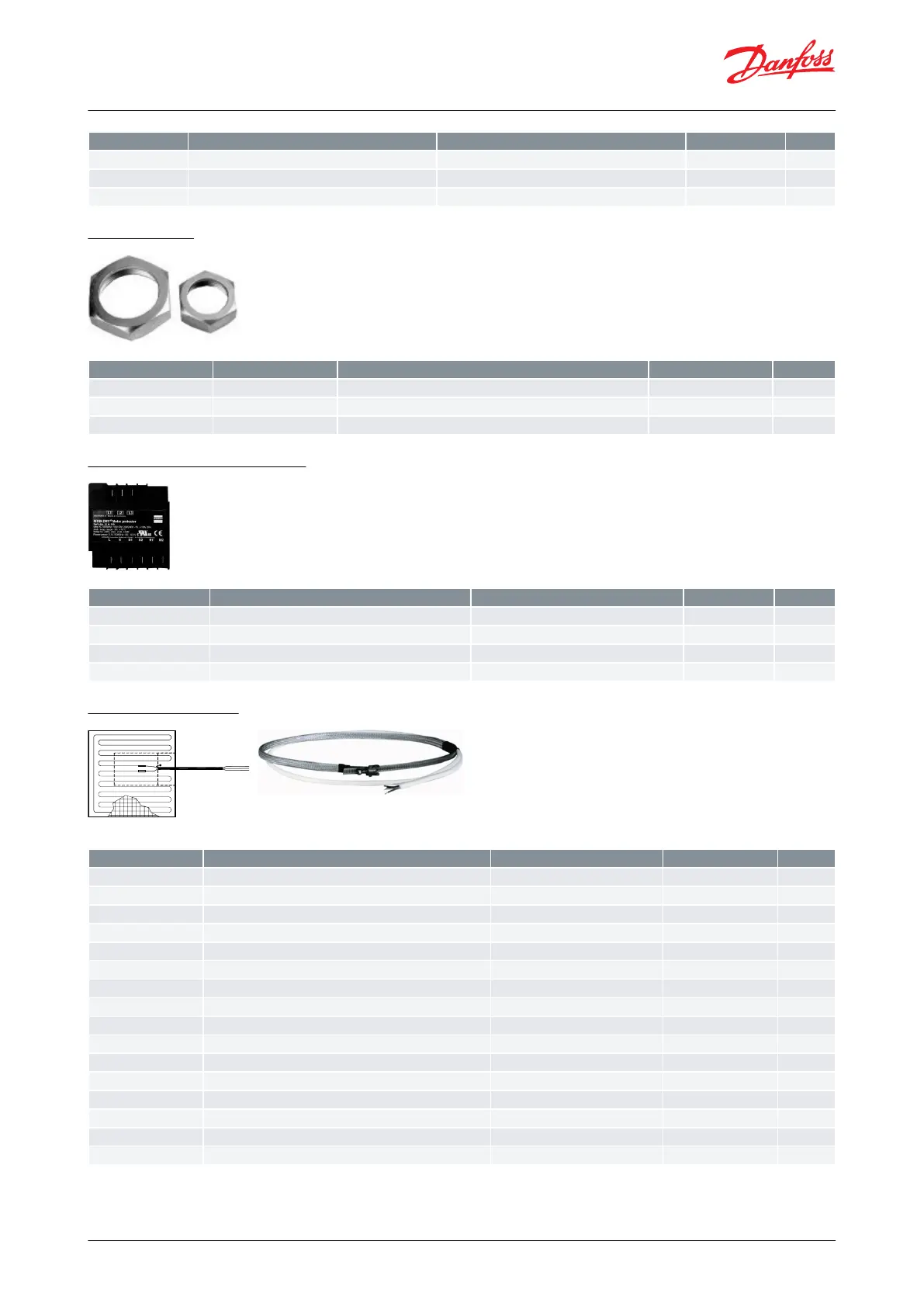

Rotolock nut
Table 49: Rotolock nut
Code no.
Description
Application
Packaging
Pack size
8153123
Rotolock nut,1"1/4
Models with 1-1/4" rotolock connection
Multipack
10
8153124
Rotolock nut,1"3/4
Models with 1-3/4" rotolock connection
Multipack
10
8153126
Rotolock nut, 2"1/4
Models with 2-1/4" rotolock connection
Multipack
10
Motor protection modules
Table 50: Motor protection modules
Code no.
Description
Application
Packaging
Pack size
120Z0584
Electronic motor protection module, 24 V AC
DSH240-295-381-485*-600(*except code 3)
Single pack
1
120Z0585
Electronic motor protection module, 110/240 V
DSH240-295-381-485*-600(*except code 3)
Single pack
1
120Z0624
Electronic motor protection module, 24V AC
DSH485 code 3
Single pack
1
120Z0802
Electronic motor protection module, 110/240 V
DSH485 code 3
Single pack
1
Crankcase heaters
Table 51: Surface sump heaters and belt type heaters
Code no.
Description
Application
Packaging
Pack size
120Z0667
48W 24V surface sump heater CE and UL
DSH090 to 184
Single pack
1
120Z0668
48W 230V surface sump heater CE and UL
DSH090 to 184
Single pack
1
120Z0669
48W 400V surface sump heater CE and UL
DSH090 to 184
Single pack
1
120Z0670
48W 460V surface sump heater CE and UL
DSH090 to 184
Single pack
1
120Z0671
48W 575V surface sump heater CE and UL
DSH090 to 184
Single pack
1
120Z0388
80W 24V surface sump heater CE and UL
DSH090 to 184
Multipack
8
120Z0389
80W 230V surface sump heater CE and UL
DSH090 to 184
Multipack
8
120Z0390
80W 400V surface sump heater CE and UL
DSH090 to 184
Multipack
8
120Z0391
80W 460V surface sump heater CE and UL
DSH090 to 184
Multipack
8
120Z0402
80W 575V surface sump heater CE and UL
DSH090 to 184
Multipack
8
7773108
Belt type crankcase heater,75W,230V,CE & UL
DSH240-295-381-485-600
Multipack
6
7973005
Belt type crankcase heater,75W,230V,CE & UL
DSH240-295-381-485-600
Industry pack
50
7773118
Belt type crankcase heater,75W,400V,CE & UL
DSH240-295-381-485-600
Multipack
6
120Z0464
Belt type crankcase heater,75W,460V,CE & UL
DSH240-295-381-485-600
Multipack
6
120Z0465
Belt type crankcase heater,75W,575V,CE & UL
DSH240-295-381-485-600
Multipack
6
120Z0870
Belt type crankcase heater,75W,24V,CE & UL
DSH240-295-381-485-600
Multipack
6
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 69
Scroll compressors, DSH090 to DSH600 | Accessories and Spare parts
