Danfoss DSH Series Application Guide

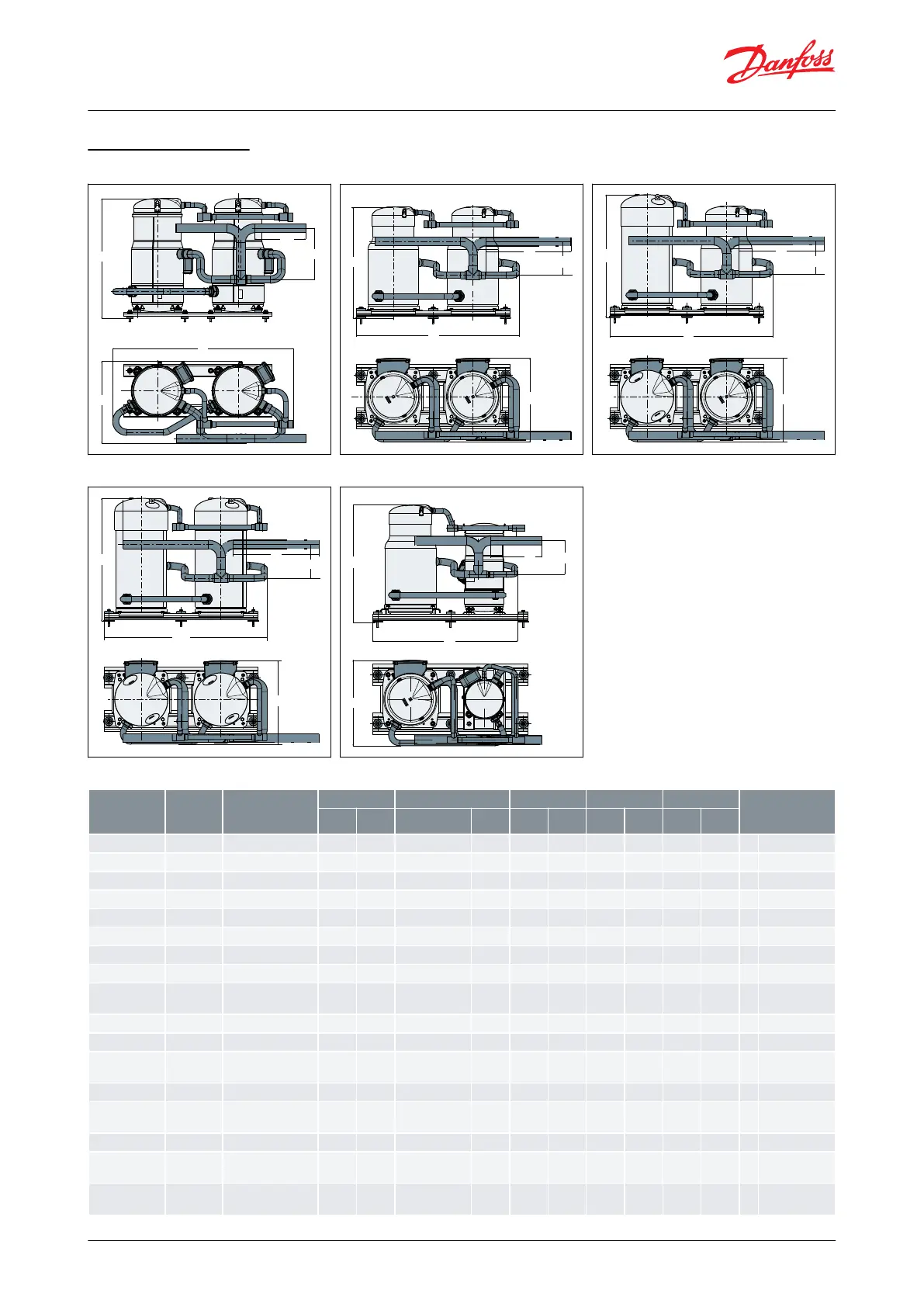

Figure 13: Outline drawing number 1
H
L
8556230
D
L1
H1
Figure 14: Outline drawing number 2
H
L
L1
H1
D
8556228
Figure 15: Outline drawing number 3
D
H
L
L1
H1
8556222
Figure 16: Outline drawing number 4
L1
H1
H
L
D
8556223
Figure 17: Outline drawing number 5
H1
CC-000056
L1
L
H
D
Tandem assemblies
Table 15: Tandem assemblies
Tandem mod‐
el
Motor
voltage
code
Composition
L
D
H
L1
H1
Outline drawing
number
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
DSH180E
3, 4, 7, 9
DSH090 + DSH090
850
33.46
384
15.12
507
19.96
240
9.45
242
9.53
1
8560115
DSH195U
3, 4, 7, 9
DSH090 + DSH105
850
33.46
386
15.2
565
22.24
240
9.45
242
9.53
1
8556233
DSH210U
3, 4, 7, 9
DSH090 + DSH120
850
33.46
386
15.2
565
22.24
240
9.45
242
9.53
1
8556233
DSH210E
3, 4, 7, 9
DSH105 + DSH105
850
33.46
384
15.12
565
22.24
240
9.45
242
9.53
1
8560114
DSH230U
3, 4, 7, 9
DSH090 + DSH140
850
33.46
386
15.2
565
22.24
240
9.45
242
9.53
1
8556233
DSH240E
3, 4, 7, 9
DSH120 + DSH120
850
33.46
384
15.12
565
22.24
240
9.45
242
9.53
1
8560114
DSH251U
3, 4, 7, 9
DSH090 + DSH161
850
33.46
386
15.2
565
22.24
240
9.45
242
9.53
1
8556233
DSH260U
3, 4, 7, 9
DSH140 + DSH120
850
33.46
386
15.2
565
22.24
240
9.45
242
9.53
1
8556230
DSH274U
4/3, 7, 9
DSH090 + DSH184
850
33.46
386 / 428
15.2 /
16.85
580
22.83
240
9.45
242
9.53
1
8556232
DSH281U
3, 4, 7, 9
DSH161 + DSH120
850
33.46
386
15.2
565
22.24
240
9.45
242
9.53
1
8556230
DSH280E
3, 4, 7, 9
DSH140 + DSH140
850
33.46
384
15.12
565
22.24
240
9.45
242
9.53
1
8560114
DSH289U
4/3, 7, 9
DSH105 + DSH184
850
33.46
386 / 428
15.2 /
16.85
580
22.83
240
9.45
242
9.53
1
8556231
DSH301U
3, 4, 7, 9
DSH161 + DSH140
850
33.46
386
15.2
565
22.24
240
9.45
242
9.53
1
8556230
DSH304U
4/3, 7, 9
DSH120 + DSH184
850
33.46
386 / 428
15.2 /
16.85
580
22.83
240
9.45
242
9.53
1
8556231
DSH322E
3, 4, 7, 9
DSH161 + DSH161
850
33.46
384
15.12
565
22.24
240
9.45
242
9.53
1
8560114
DSH324U
4/3, 7, 9
DSH140 + DSH184
850
33.46
386 / 428
15.2 /
16.85
580
22.83
240
9.45
242
9.53
1
8556231
DSH345U
4/3, 7, 9
DSH161 + DSH184
850
33.46
386 / 428
15.2 /
16.85
580
22.83
240
9.45
242
9.53
1
8556231
