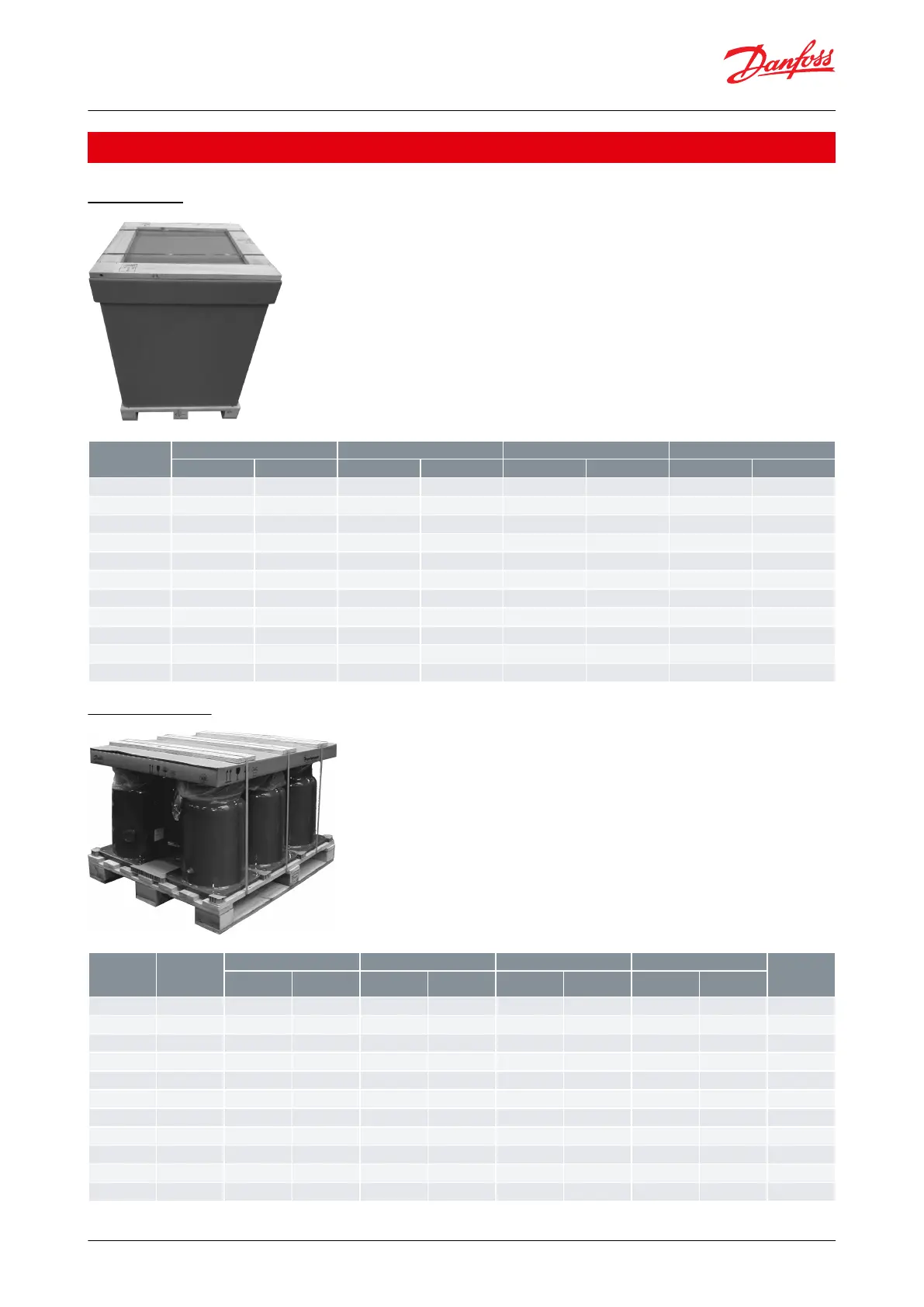

Danfoss DSH Series Application Guide

Packaging
Single pack
Table 39: Single pack packaging
Compressor
model
Length
Width
Height
Gross weight
mm
inch
mm
inch
mm
inch
kg
lbs
DSH090
565
22.2
470
18.5
718
28.3
69
152
DSH105
565
22.2
470
18.5
718
28.3
76
168
DSH120
565
22.2
470
18.5
718
28.3
76
168
DSH140
565
22.2
470
18.5
718
28.3
79
174
DSH161
565
22.2
470
18.5
718
28.3
81
179
DSH184
565
22.2
470
18.5
718
28.3
84
185
DSH240
750
29.5
750
29.5
1050
41.3
128
282
DSH295
750
29.5
750
29.5
1050
41.3
131
289
DSH381
750
29.5
750
29.5
1050
41.3
178
392
DSH485
750
29.5
750
29.5
1050
41.3
195
430
DSH600
750
29.5
750
29.5
1050
41.3
234
516
Industrial pack
Table 40: Industrial pack packaging
Compressor
model
Compres‐
sors per
pack
Length
Width
Height
Gross weight
Static stack‐
ing pallets
mm
inch
mm
inch
mm
inch
kg
lbs
DSH090
8
1150
45.3
950
37.4
680
26.8
494
1089
2
DSH105
8
1150
45.3
950
37.4
750
29.5
544
1199
2
DSH120
8
1150
45.3
950
37.4
750
29.5
544
1199
2
DSH140
8
1150
45.3
950
37.4
750
29.5
566
1248
2
DSH161
8
1150
45.3
950
37.4
750
29.5
582
1283
2
DSH184
8
1150
45.3
950
37.4
750
29.5
606
1336
2
DSH240
6
1150
45.3
965
38
768
30.2
693
1528
2
DSH295
6
1150
45.3
965
38
768
30.2
712
1570
2
DSH381
4
1150
45.3
965
38
800
31.5
678
1494
2
DSH485
4
1150
45.3
965
38
800
31.5
744
1640
2
DSH600
4
1150
45.3
965
38
800
34.7
900
1984
2
Scroll compressors, DSH090 to DSH600 | Packaging
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 64
