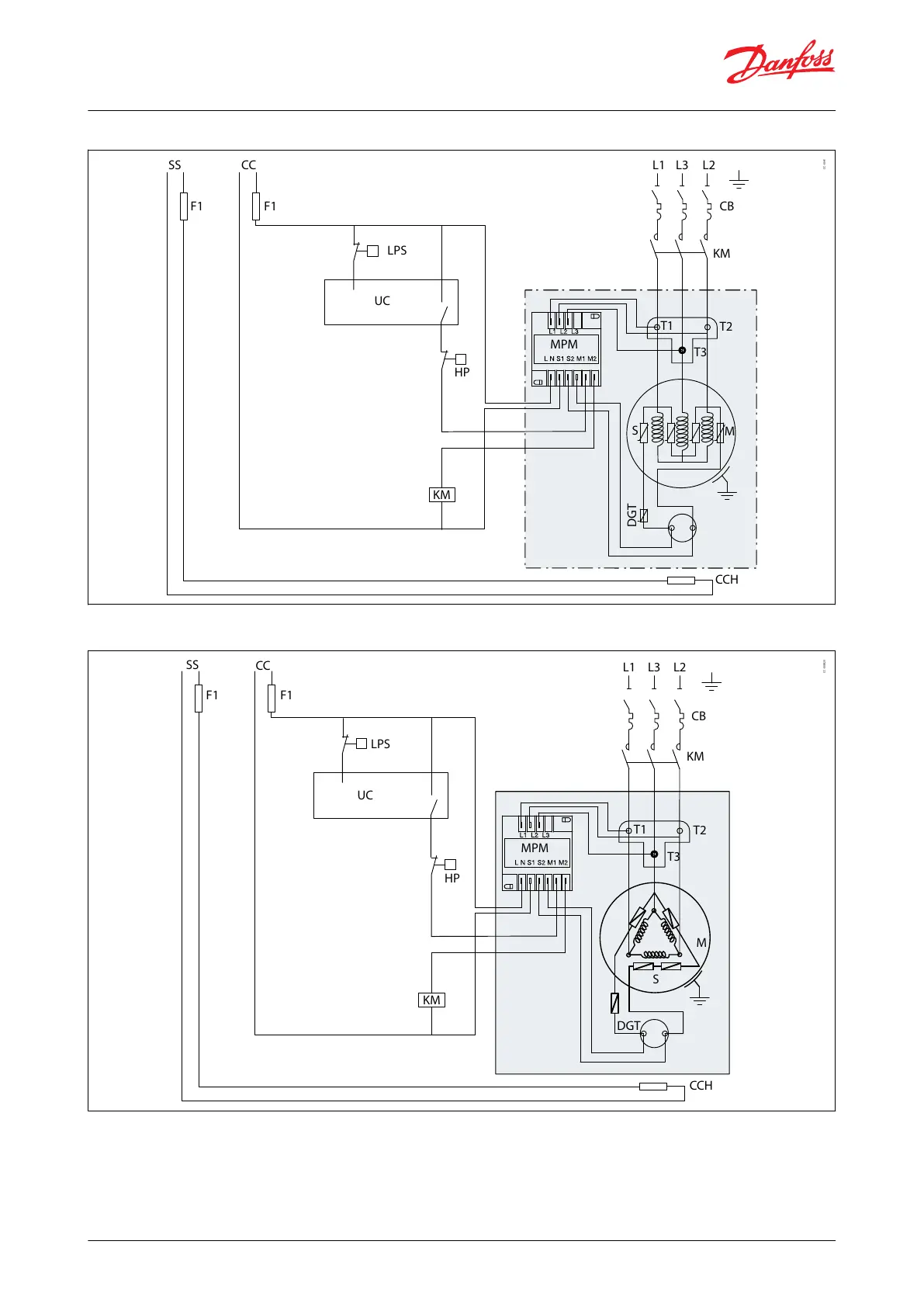

Figure 60: Compressor model DSH240-295-381
MPM
S
CCSS
LPS
KM
CB
F1 F1
HP
L1 L3 L2
KM
T2
M
T1
T3
DGT
UC
CCH
CC-0041
Figure 61: Compressor model DSH485 (except code 3) and model DSH600
CC
SS
LPS
KM
F1 F1
HP
L1 L3 L2
KM
DGT
MPM
CB
UC
M
S
CCH
T2
T1
T3
CC-000020
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 55
Scroll compressors, DSH090 to DSH600 | Application
