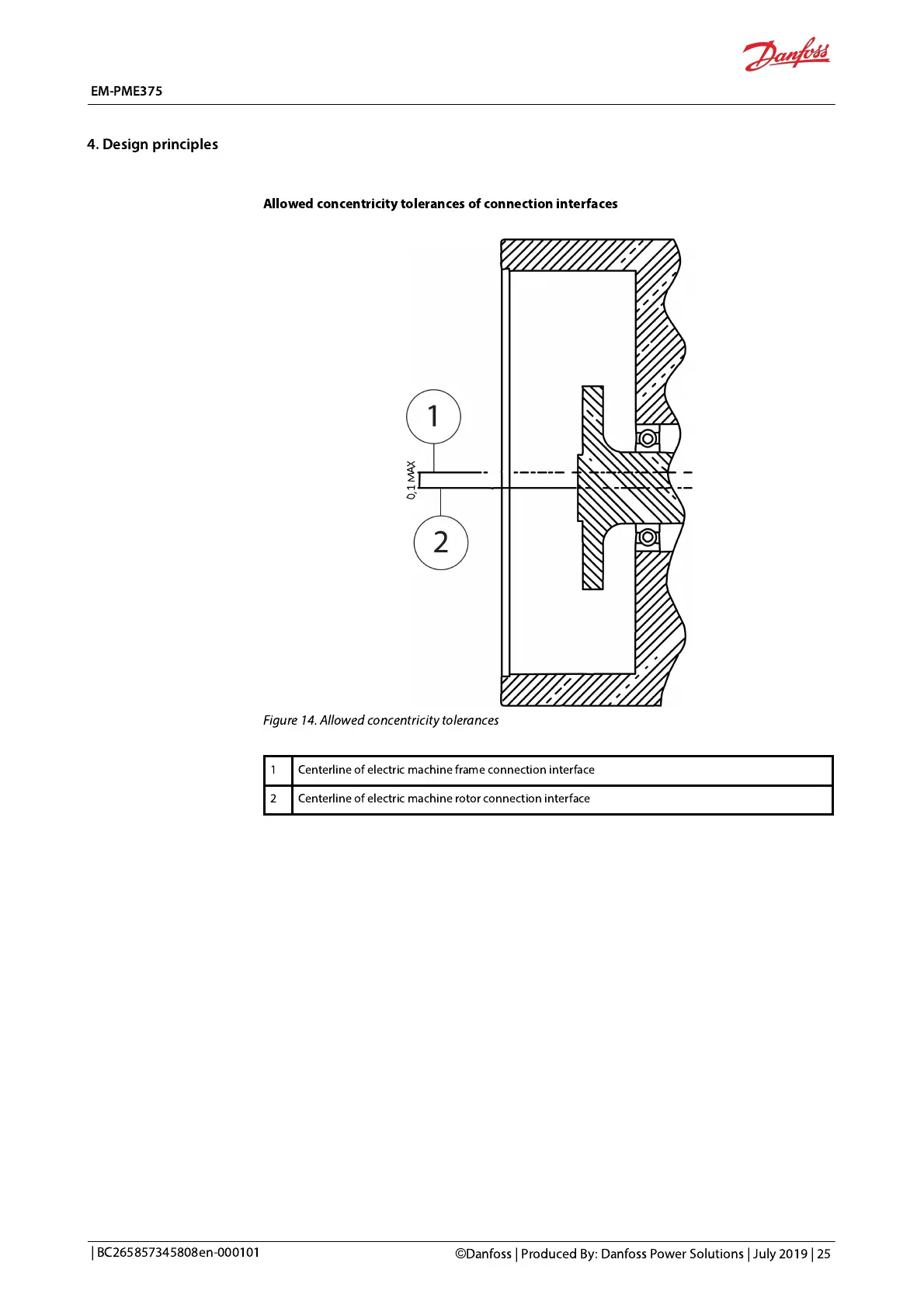

Allowed concentricity tolerances of
connection interfaces
Figure 14. Allowed concentricity tolerances
1 Centerline of electric machine frame connection interface
2 Centerline of electric machine rotor connection interface
EM-PME375
4. Design principles
| BC265857345808en-000101
©
