Danfoss ERC 102 User Manual

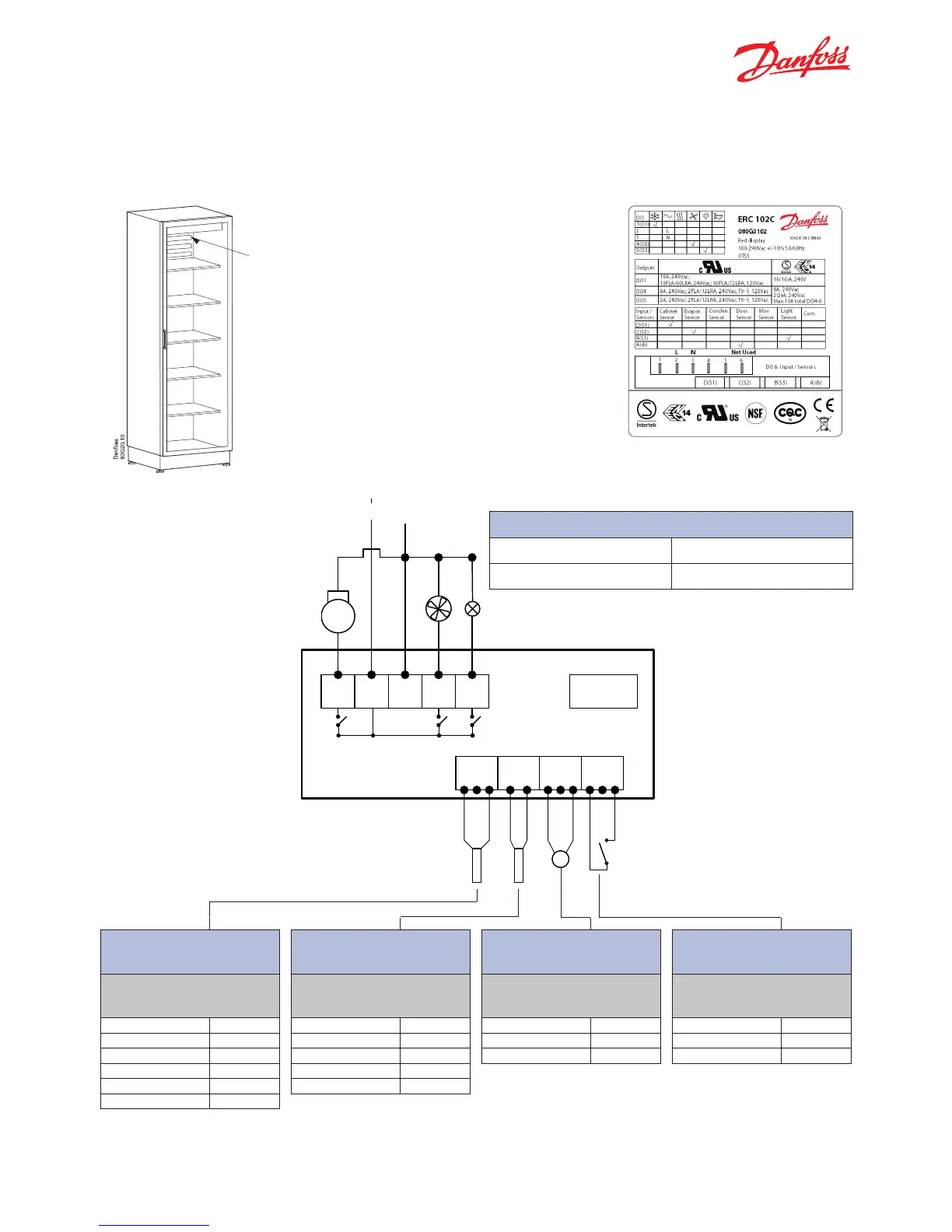

54 ERC 102 Reference manual – APPENDIX IV:  WIRING DIAGRAMS
ERC 102C Controller
Red LED without buzzer 080G3102
Blue LED without buzzer 080G3106
IV.2 ERC 102C
Glass Door Merchandiser
Lights
Fan
DO3
DO1
DO2
1 5432
ERC102C
Controller
DO’s
L
Compressor
N
100 – 240VAC SMPS
A(di)D(S1) C(S2) B(S3)AI/DI’s
LL
Temperature Sensor for Cabi-
net Temperature Control
Temperature Sensor for
Evaporator Temperature
Control
Ambient Light Door input
PVC Standard
Connector type (C1) 3-pole
PVC Standard
Connector type (C2) 2-pole
Light sensor
Connector type (C3) 3-pole
Door-sensor cable
Connector type (C4) 3-pole
470 mm 077F8751 470 mm 077F8780 1000 mm 080G3311 1000 mm 080G3332
1000 mm 077F8757 1000 mm 077F8786 2000 mm 080G3313 2000 mm 080G3334
1500 mm 077F8761 1500 mm 077F8790 3000 mm 080G3315 3000 mm 080G3336
2000 mm 077F8765 2000 mm 077F8794
2200 mm 077F8767 3000 mm 077F8798
3000 mm 077F8769
