FC 300 Profibus

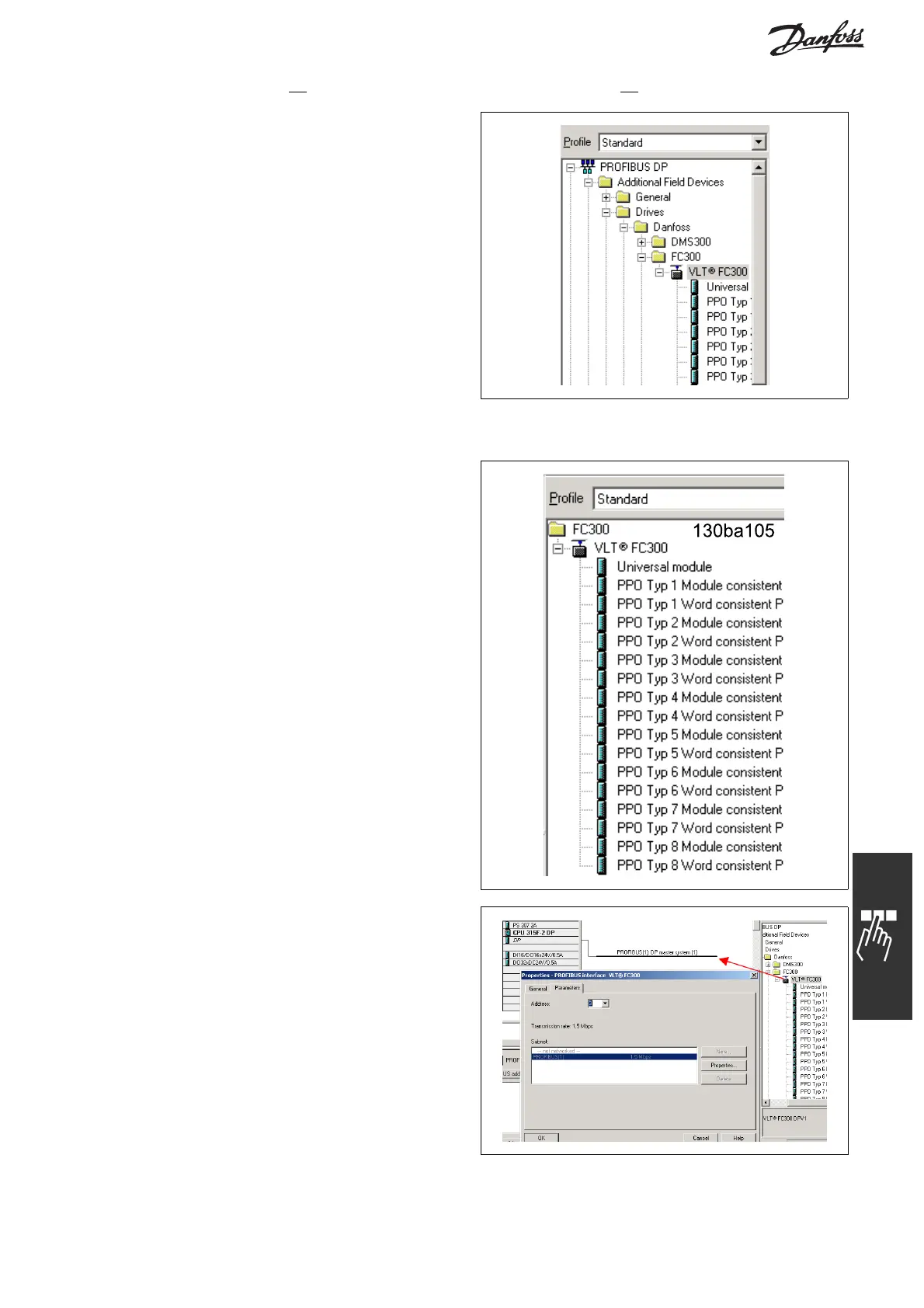

How to Con figure the System
The FC 300 GSD file is now imported and will be
accessible via the following path in the Hardware
catalogue:
Open a Project, set up the Hardware and add a
PROFIBUS Master system. Select FC 300 then drag
and drop it onto the PROFIBUS in the Hardware
diagram.
A window for the address of the FC 300 now
appears. Select the address from the scroll-down
list. Note that this address setting must match the
previous address setting in par. 9-18 Node address.
21
MG.33.C2.02 - VLT is a registered Danfoss trademark
