By selecting this menu, assign a name to the new network.
In this example “Danfoss” has been chosen.

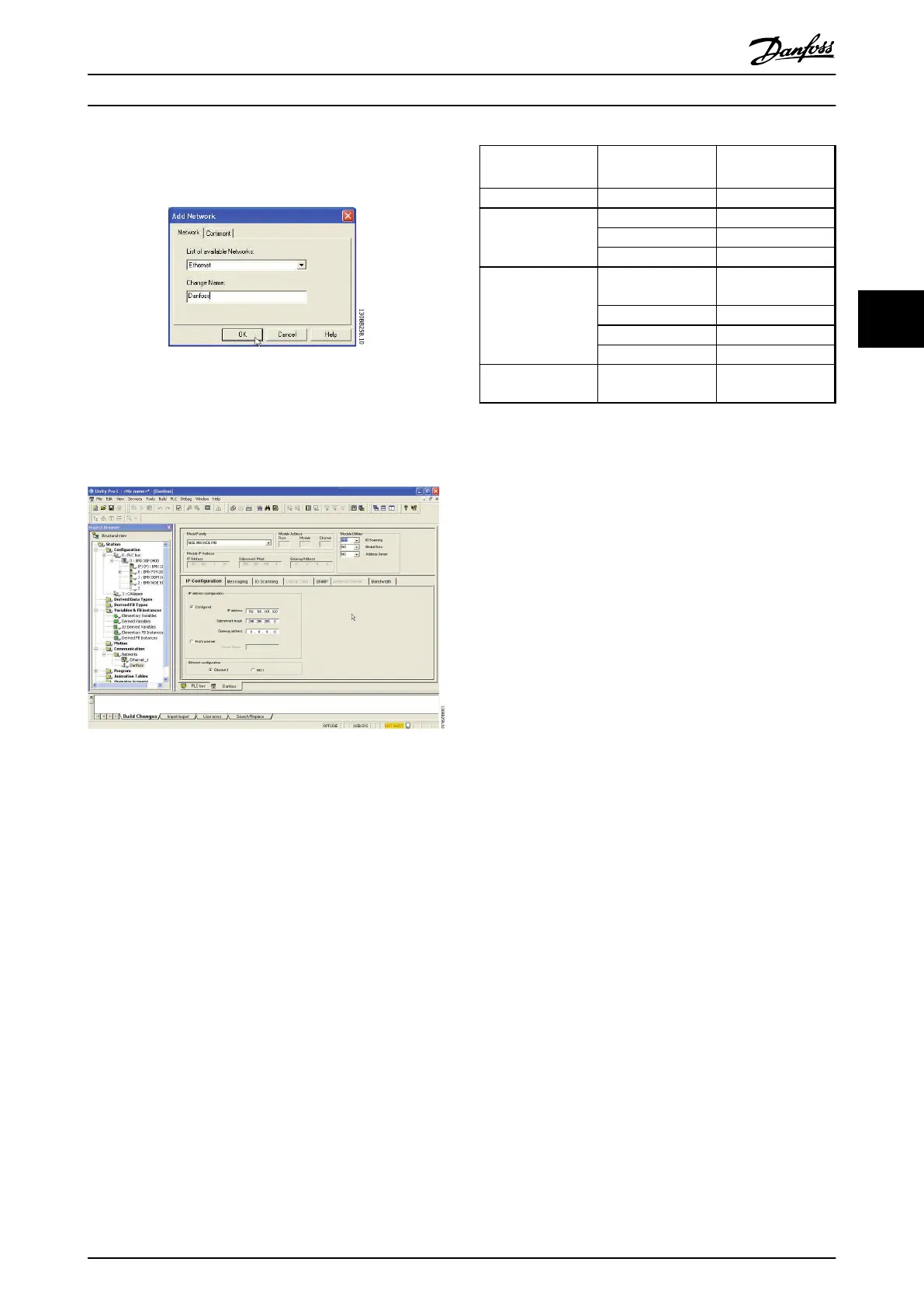

Illustration 3.2 Assigning a Network Name
After clicking [OK], the network “Danfoss” should show up
under Networks and by selecting the Network, the main
configuration page is shown.
Illustration 3.3 Main Configuration Page
Menu Menu point Setting
Model Family Model Family NOE 0100, NOE 110
Model Utilities IO Scanning YES
Global Data NO
Address Server NO
IP address configu-
ration
Configured/From a
server
Configured
IP address 192.168.001.020
Subnetwork mask 255.255.255.0
Gateway address 0.0.0.0
Ethernet Configu-
ration
Ethernet Configu-
ration
Ethernet II
Table 3.4 Menu Settings
In the IP Configuration tab, press the [Configured] key, and the IP
address and fill out [Subnetwork mask]. In this example the address
192.168.1.20 is used as the address for the master.
The step assigns the protocol to the scanner, which is done
by selecting the scanner and selecting the “Function” menu
and enables the Ethernet by selecting “ETH TCP IP” This brings
up the Net Link menu, where “Danfoss” has to be selected. At
this time, the “Danfoss” Protocol is assigned to the Scanner
and the last step is to configure the scanner to read and write
holding registers of the FC 302.
How to Configure MCA 122 Modbus TCP
MG90P202 - VLT
®
is a protected Danfoss trademark 13
3 3
