Enclosure size size E1 E2 F1 F2 F3 F4
315–450 kW
(425–600 hp) at
400 V
(380–480 V)
450–630 kW
(600–850 hp) at
690 V
(525–690 V)
315–450 kW
(425–600 hp) at
400 V
(380–480 V)
450–630 kW
(600–850 hp) at
690 V
(525–690 V)
500–710 kW
(650–950 hp) at
400 V
(380–480 V)
710–900 kW
(950–1200 hp) at
690 V
(525–690 V)
800–1000 kW
(1075–1350 hp)
at 400 V
(380–480 V)
1000–1200 kW
(1350–1600 hp)
at 690 V
(525–690 V)
500–710 kW
(650–950 hp) at
400 V
(380–480 V)
710–900 kW
(950–1200 hp) at
690 V
(525–690 V)
800–1000 kW
(1075–1350 hp)
at 400 V
(380–480 V)
1000–1400 kW
(1350–1875 hp)
at 690 V
(525–690 V)
IP
NEMA
21, 54
Type 1/Type 12
00
Chassis
21, 54
Type 1/Type 12
21, 54
Type 1/Type 12
21, 54
Type 1/Type 12
21, 54
Type 1/Type 12
Shipping
dimensions
[mm (in)]
Height 840 (33.1) 831 (32.72) 2324 (91.5) 2324 (91.5) 2324 (91.5) 2324 (91.5)
Width 2197 (86.5) 1705 (67.13) 1569 (61.77) 1962 (77.24) 2159 (85) 2559 (100.75)
Depth 736 (29) 736 (29) 1130 (44.5) 1130 (44.5) 1130 (44.5) 1130 (44.5)
Adjustable
frequency
drive
dimensions
[mm (in)]
Height 2000 (78.74) 1547 (60.91) 2204 (86.77) 2204 (86.77) 2204 (86.77) 2204 (86.77)
Width 600 (23.62) 585 (23.03) 1400 (55.12) 1800 (70.87) 2000 (78.74) 2400 (94.5)
Depth 494 (19.45) 498 (19.61) 606 (23.86) 606 (23.86) 606 (23.86) 606 (23.86)
Max.
weight
[kg
(lb)]
313 (690) 277 (611) 1004 (2214) 1246 (2747) 1299 (2864) 1541 (3397.4)

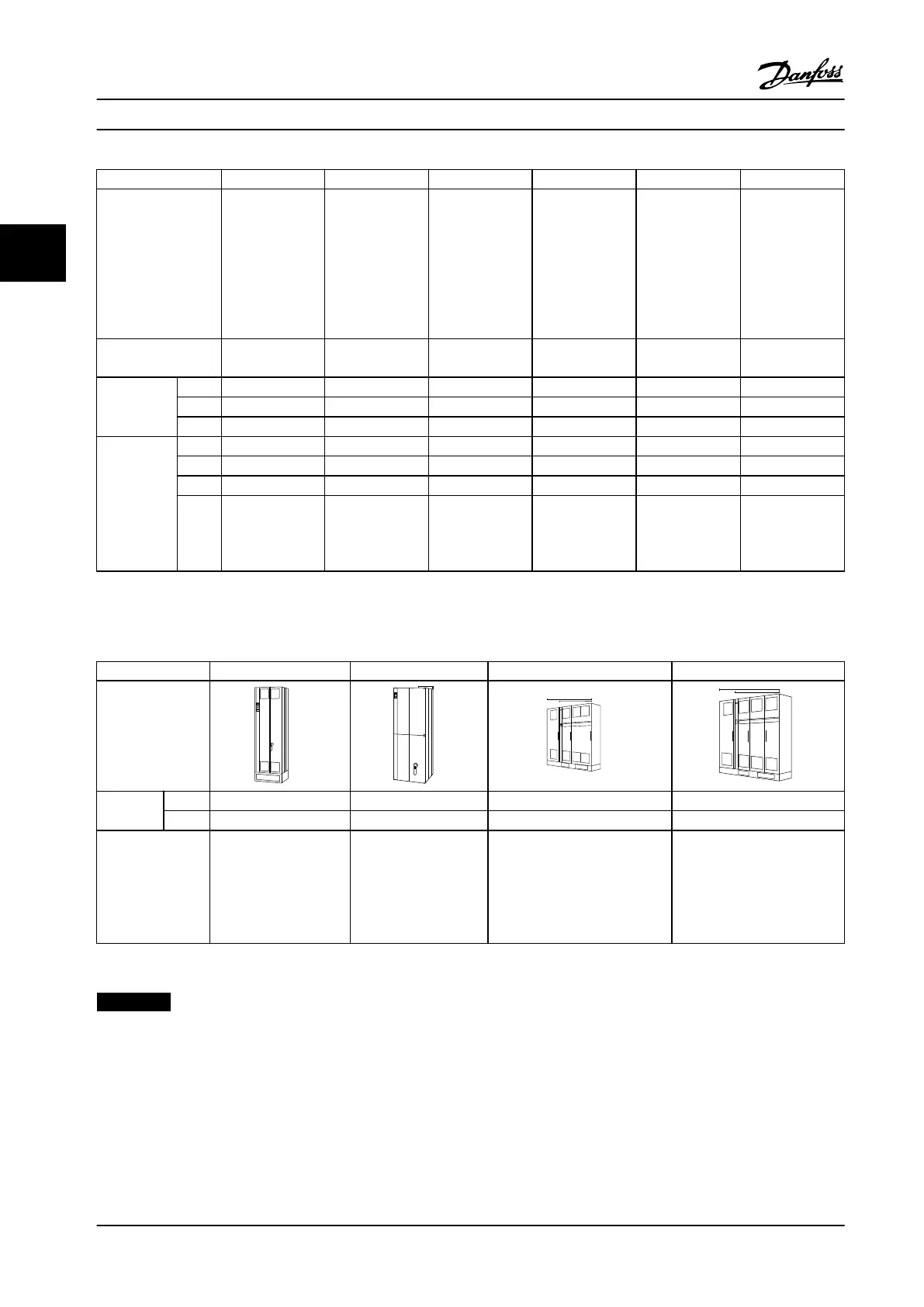

Table 3.3 Mechanical Dimensions, Enclosure Sizes E and F
3.2.6
Rated Power
Enclosure size E1 E2 F1/F3 F2/F4
130BA818.10
130BA821.10
F3
F1
130BA959.10
F4
F2
130BB092.11
Enclosure
protection
IP 21/54 00 21/54 21/54
NEMA Type 1/Type 12 Chassis Type 1/Type 12 Type 1/Type 12
Normal overload
rated power -
110% overload
torque
315–450 kW (425–600
hp) at 400 V
(380–480 V)
450–630 kW (600–850
hp) at 690 V
(525–690 V)
315–450 kW (425–600
hp) at 400 V
(380–480 V)
450–630 kW (600–850
hp) at 690 V
(525–690 V)
500–710 kW (650–950 hp) at 400
V
(380–480 V)
710–900 kW (950–1200 hp) at
690 V
(525–690 V)
800–1000 kW (1075–1350 hp)
at 400 V
(380–480 V)
1000–1400 kW (1350–1875 hp)
at 690 V
(525–690 V)
Table 3.4 Rated Power, Enclosure Types E and F
NOTICE!
The F enclosures are available in four dierent sizes, F1, F2, F3 and F4. The F1 and F2 consist of an inverter cabinet on
the right and rectier cabinet on the left. The F3 and F4 have an extra options cabinet left of the rectier cabinet. The
F3 is an F1 with an extra options cabinet. The F4 is an F2 with an extra options cabinet.
Mechanical Installation
VLT
®
HVAC Drive FC 102
16 Danfoss A/S © 08/2014 All rights reserved. MG11F522
