5 How to Operate the Adjustable Frequency Drive
5.1 Operating with LCP
5.1.1 Three Ways of Operating
The adjustable frequency drive can be operated in 3
ways:
•
Graphical local control panel (GLCP).
•
Numeric local control panel (NLCP).
•
RS-485 serial communication or USB, both for PC
connection.
If the adjustable frequency drive is
tted with serial
communication option option, refer to the relevant
documentation.
5.1.2
How to Operate the Graphical LCP
(GLCP)
The following instructions are valid for the GLCP (LCP 102).
The GLCP is divided into four functional groups:
1. Graphical display with status lines.
2. Menu keys and indicator lights (LEDs) - selecting
mode, changing parameters and switching
between display functions.
3. Navigation keys and LEDs (LEDs).
4. Operation keys and LEDs.
Graphical display
The LCD display is backlit with a total of six alpha-numeric
lines. All data is displayed on the LCP which can show up
to ve operating variables while in [Status] mode.
Display lines:
a.
Status line
Status messages displaying icons and graphics.
b.
Line 1–2
Operator data lines displaying data and variables
dened or selected by the user. Press [Status] to
add one extra line.
c.
Status line
Status messages displaying text.
Auto
on
Reset
Hand
on
O
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
Status
1(0)
1234rpm 10,4A 43,5Hz
Run OK
43,5Hz
On
Alarm
Warn.
130BA018.13
1
2
3
4
b
a
c

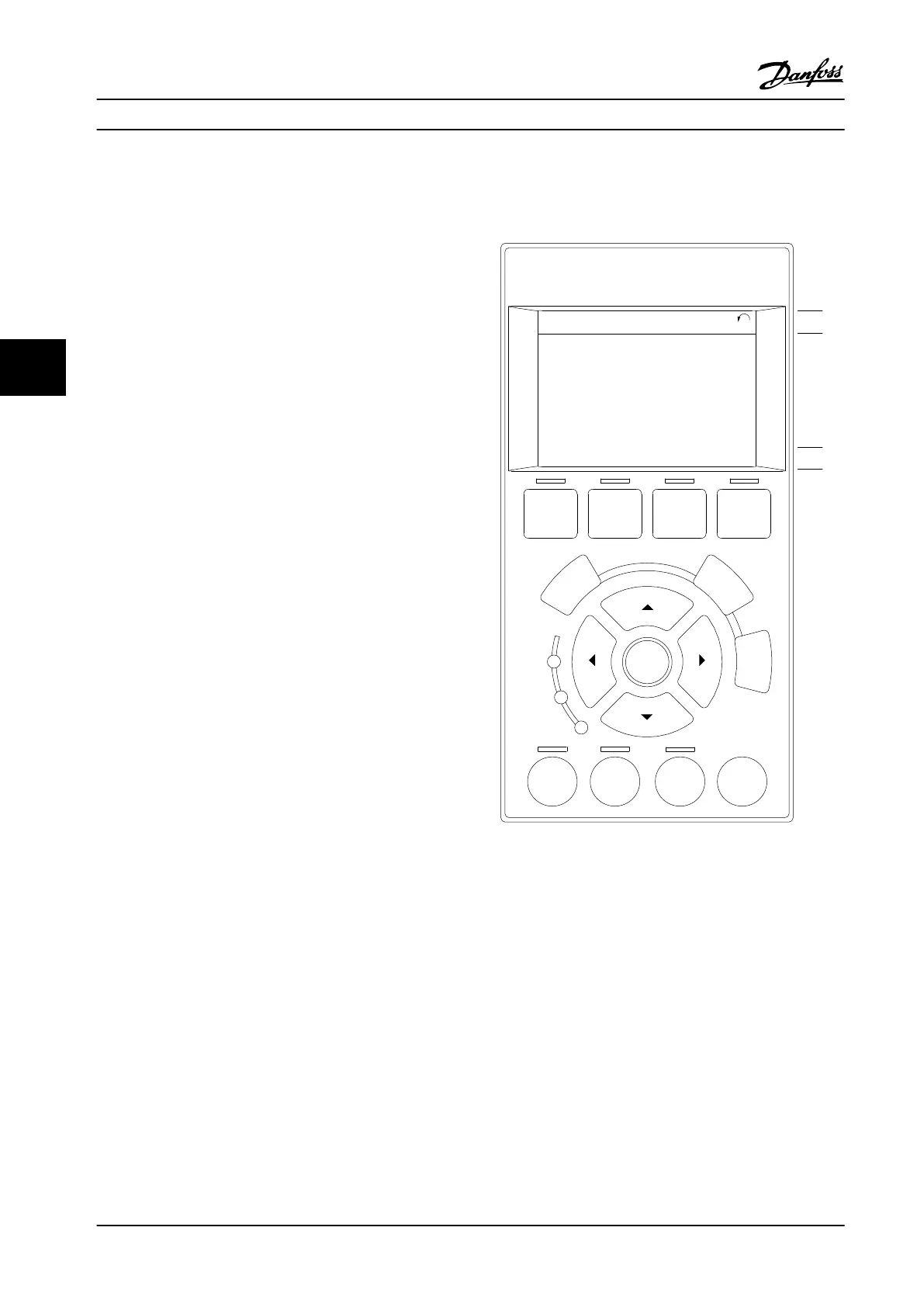

Figure 5.1 LCP
The display is divided into three sections:
Top section
(a) shows the status when in status mode, or up to two
variables when not in status mode, and in the case of
Alarm/Warning.
The number of the active set-up (selected as the active
set-up in parameter 0-10 Active Set-up) is shown. When
programming in another set-up than the active set-up, the
number of the set-up being programmed appears to the
right in brackets.
Middle section
(b) shows up to ve variables with related unit, regardless
of status. In the event of an alarm/warning, the warning is
shown instead of the variables.
How to Operate the Adjustab...
VLT
®
HVAC Drive FC 102
66 Danfoss A/S © 08/2014 All rights reserved. MG11F522
