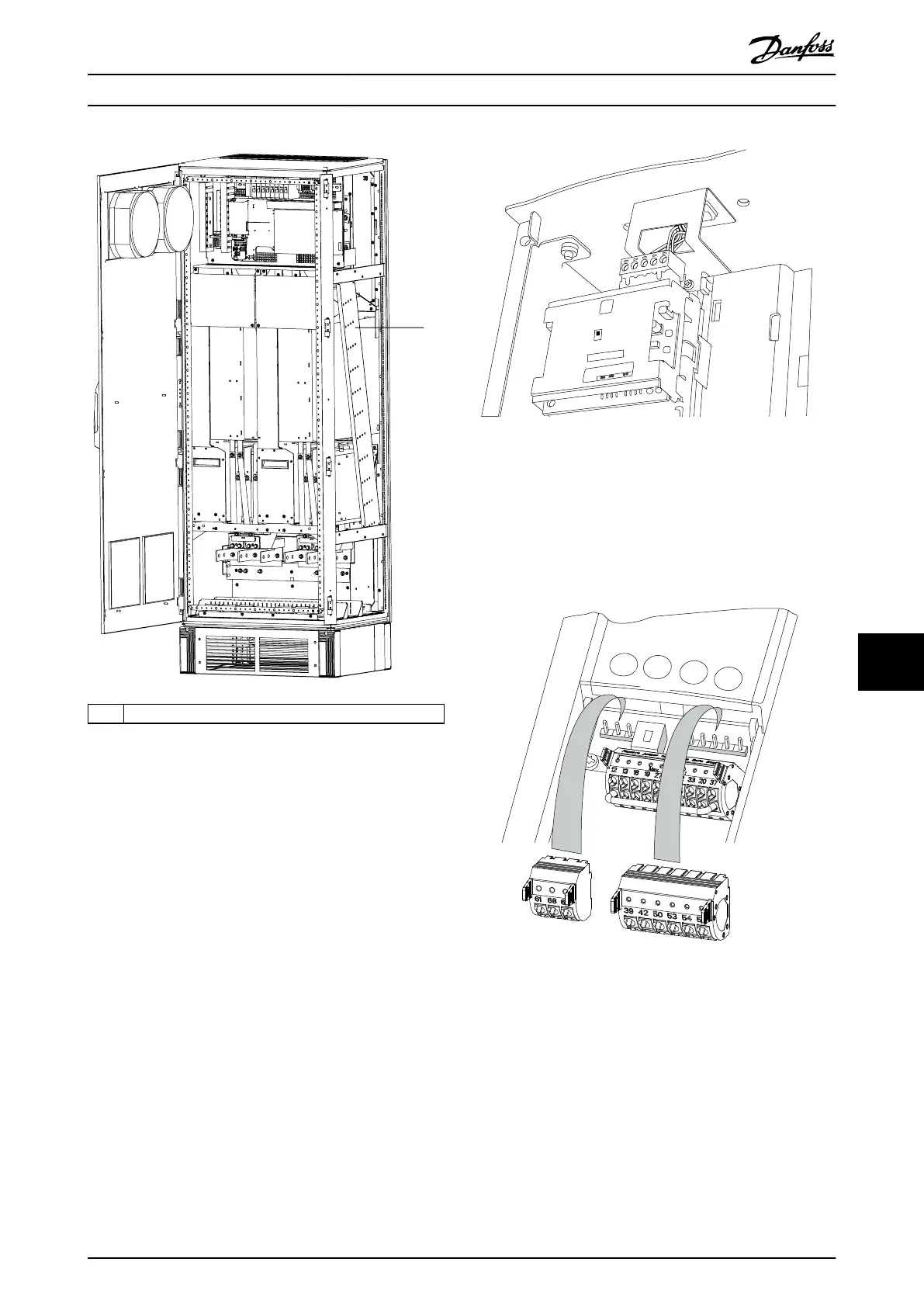

1 Cable tray for routing control cables in F1–F13 enclosures
Illustration 10.9 Control Card Wiring Path for the F1/F3.
Control Card Wiring for the F2/F4 and F8–F13 Use the Same
Path
In the enclosure E drives, it is possible to connect the
eldbus from the top of the unit, as shown in the
following illustrations. On the IP21/54 (NEMA-1/NEMA-12)
unit, a cover plate must be removed.
The kit number for the eldbus top connection is
176F1742.
130BA867.10
Probus Option A
FC300 Service
Illustration 10.10 Top Connection for Fieldbus
10.4.2 Control Terminals
Illustration 10.11 shows the removable drive connectors.
Terminal functions and default settings are summarized in
Table 10.7 – Table 10.9.
Illustration 10.11 Control Terminal Locations
Electrical Installation Con... Design Guide
MG16C302 Danfoss A/S © 11/2017 All rights reserved. 173
10 10
