Danfoss MP1 - Forward-Neutral-Reverse (FNR) Electric Control; FNR Principle

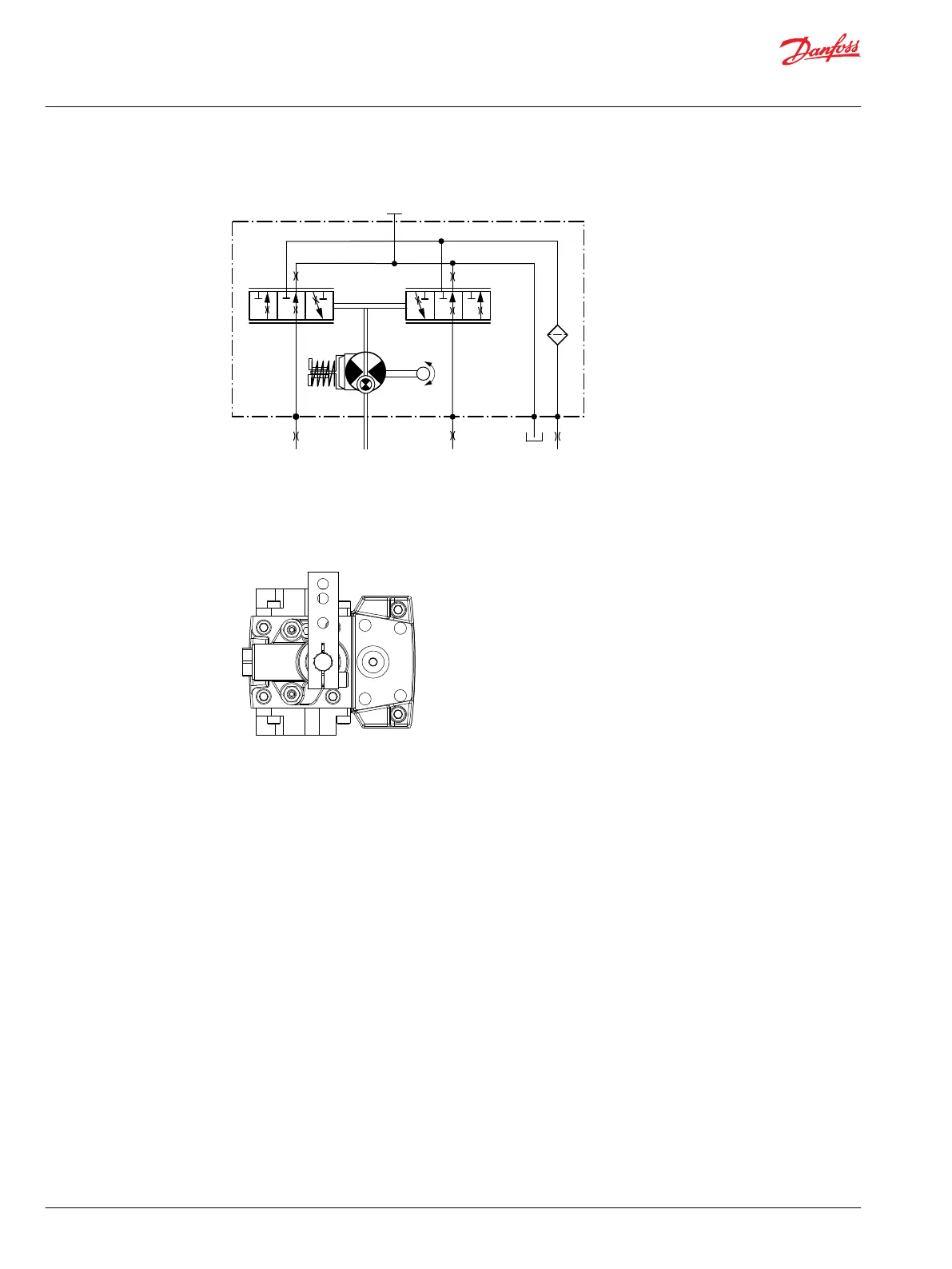

MDC schematic diagram
P005 701
M14
M5
M4
M3
Lever
MDC controls are available with optional lever/handle. Align with Settings: Y module in the model code.
Standard orientation 90° from input shaft
P301 749
Forward-neutral-reverse (FNR) electic control
FNR principle
The 3-position FNR control uses an electric input signal to switch the pump to a full stroke position.
Under some circumstances, such as contamination, the control spool could stick and cause the pump to
stay at some displacement.
A 170 μm screen is located in the supply line immediately before the control porting spool.
