Danfoss MP1 Service Manual

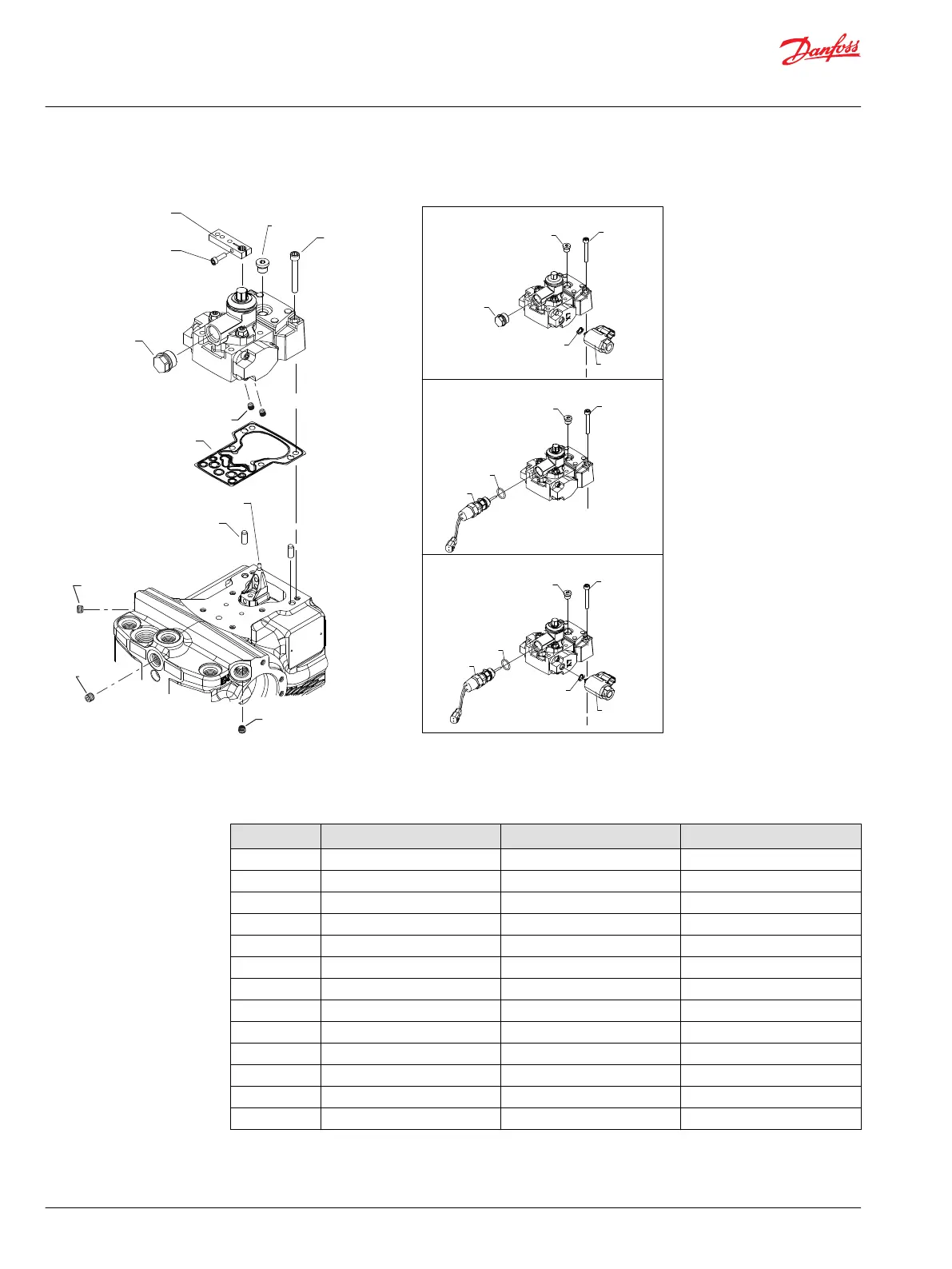

MDC Illustration
D250
D065
QD73
D300 (2x)
D200
D150
Y010
Y020
F00T (2x)
F00B
F00P
F00A
MDC with CCO
MDC with neutral start switch
MDC with neutral start switch and CCO
QD75
D065
D250
QD81
QD70
QD75
D065
D250
QD81
QD70
D250
D065
QD75
QD751
QD751
MDC Legend
Wrench size and torque
Item Description Wrench size Torque
D065 O-ring plug 3/16 internal hex 12 N•m [9 lbf•ft]
D200 feedback pin 5 mm internal hex 13.3 Nm [9.8 lbf•ft]
D250 cap screw 5 mm internal hex 13.3 Nm [9.8 lbf•ft]
QD70 solenoid - -
QD81 O-ring - -
QD75 neutral start switch assembly - -
QD751 O-ring - -
QD73 plug 3/4 inch
F00A servo orifice 7/16 inch hex 7.9 Nm [5.8 lbf•ft]
F00B servo orifice 7/16 inch hex 7.9 Nm [5.8 lbf•ft]
F00P supply orifice 1/4 inch hex 14 Nm [10.8 lbf•ft]
F00T tank orifice 3 mm internal hex 2.5 Nm [1.8 lbf•ft]
Y020 cap screw 5 mm internal hex 13.3 Nm [9.8 lbf•ft]
Service Manual
MP1
Minor repair
56 |
©
Danfoss | April 2019 AX00000244en-000201
