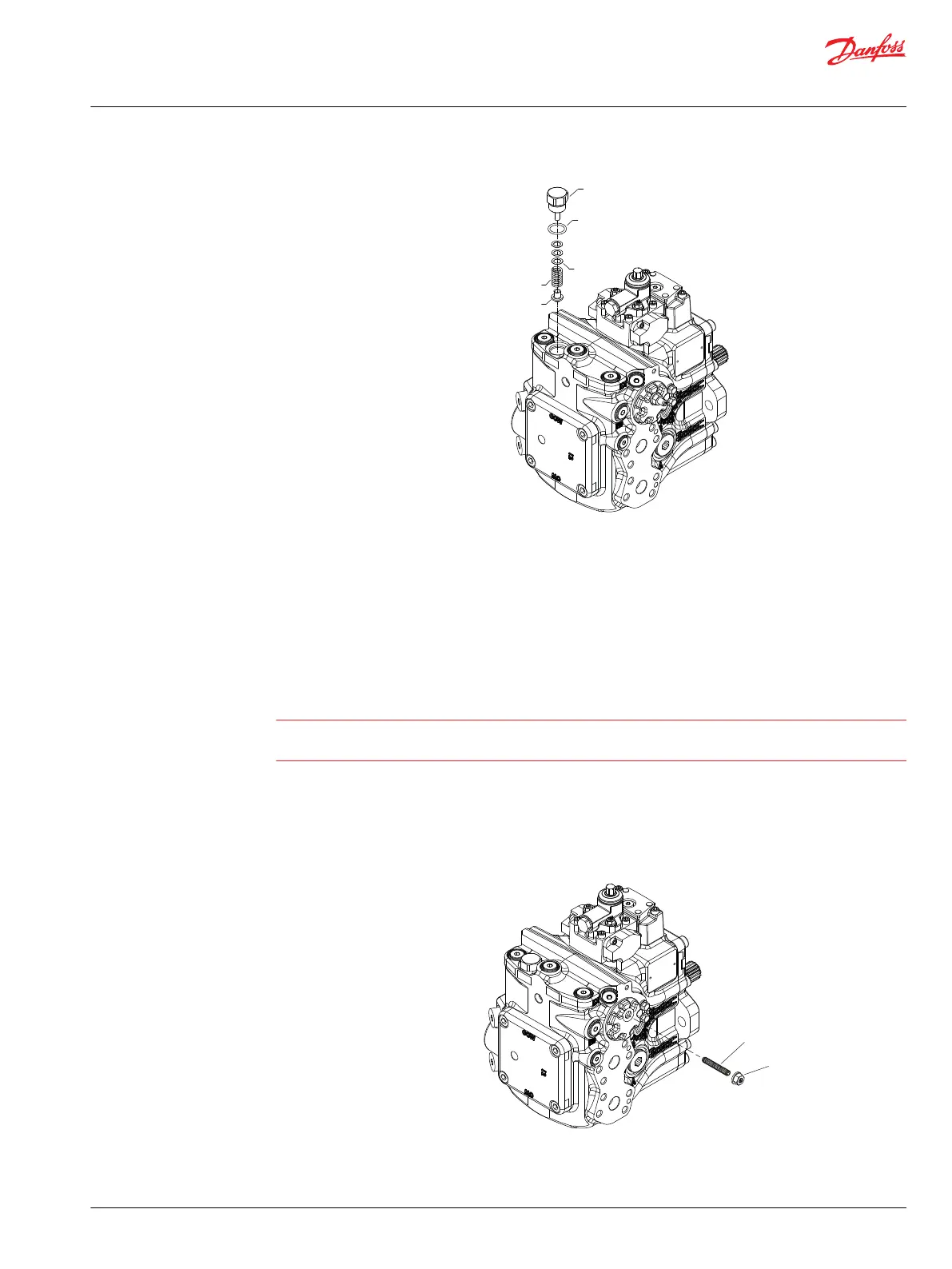

V100
QV110
V200
V300
V400
P108951
2. Add or remove shims (V200) until the desired setting is achieved.
3. Remove the gauges and plug the open ports.
Displacement Limiter
If your pump has displacement limiters, you will find them on either servo cover. You can limit forward
and reverse displacement independently.
Caution
Before adjusting the displacement limiter, mark the position of the servo cylinder. Be sure the servo
cylinder does not turn when setting the displacement limiter locknut.
1. Loosen the lockingnut.
2. Rotate the adjusting screw to achieve the desired displacement.
3. After establishing the desired maximum displacement setting, hold the adjusting screw while
torquing the locknut to the value shown.
P108965
Locknut
Adjusting screw
Service Manual
MP1
Adjustments
©
Danfoss | April 2019 AX00000244en-000201 | 47
