Danfoss PVG 256

PVG 16 installation
Standard assembled PVG 16

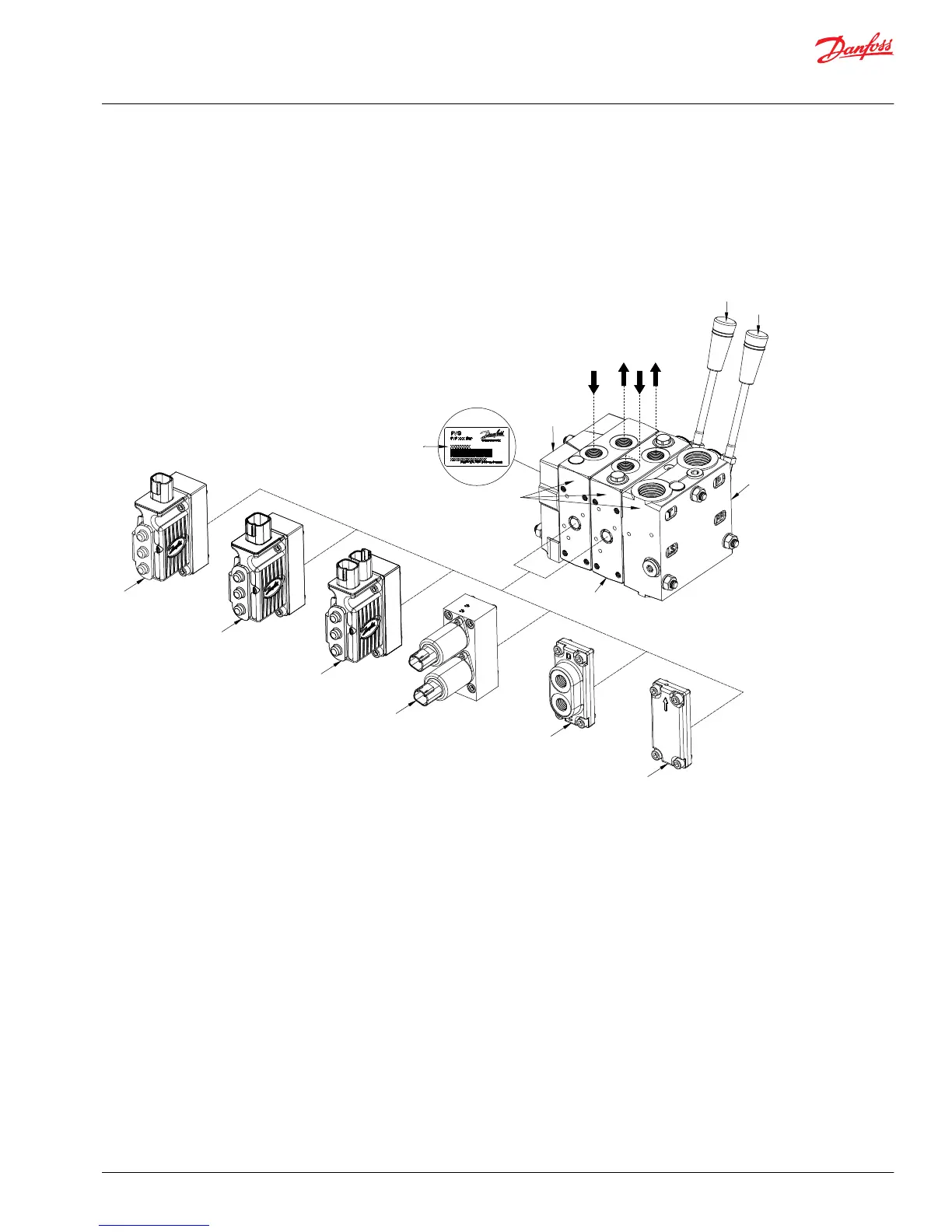

The exploded view illustration helps identify PVG 16 components to assist in installation.
Oil flow direction for standard assembled PVG 16
PVEO/A
PVHC
PVH
PVMD
PVP
PVS
PVB16
PVM
PVM
PVEA-F
PVEO/A-CI
C
xxxxxxxx
xxxxxxxx
xxxxxxxx
D
B
A
A
B
Identification
C: PVG number, week and year of installation and series number PVP- pressure setting
D: Engraved part number on PVP and PVB
Service and Parts Manual
PVG 16/32/128/256
Installation
©
