Danfoss PVG 256

PVG 128/256 PVBS main spool

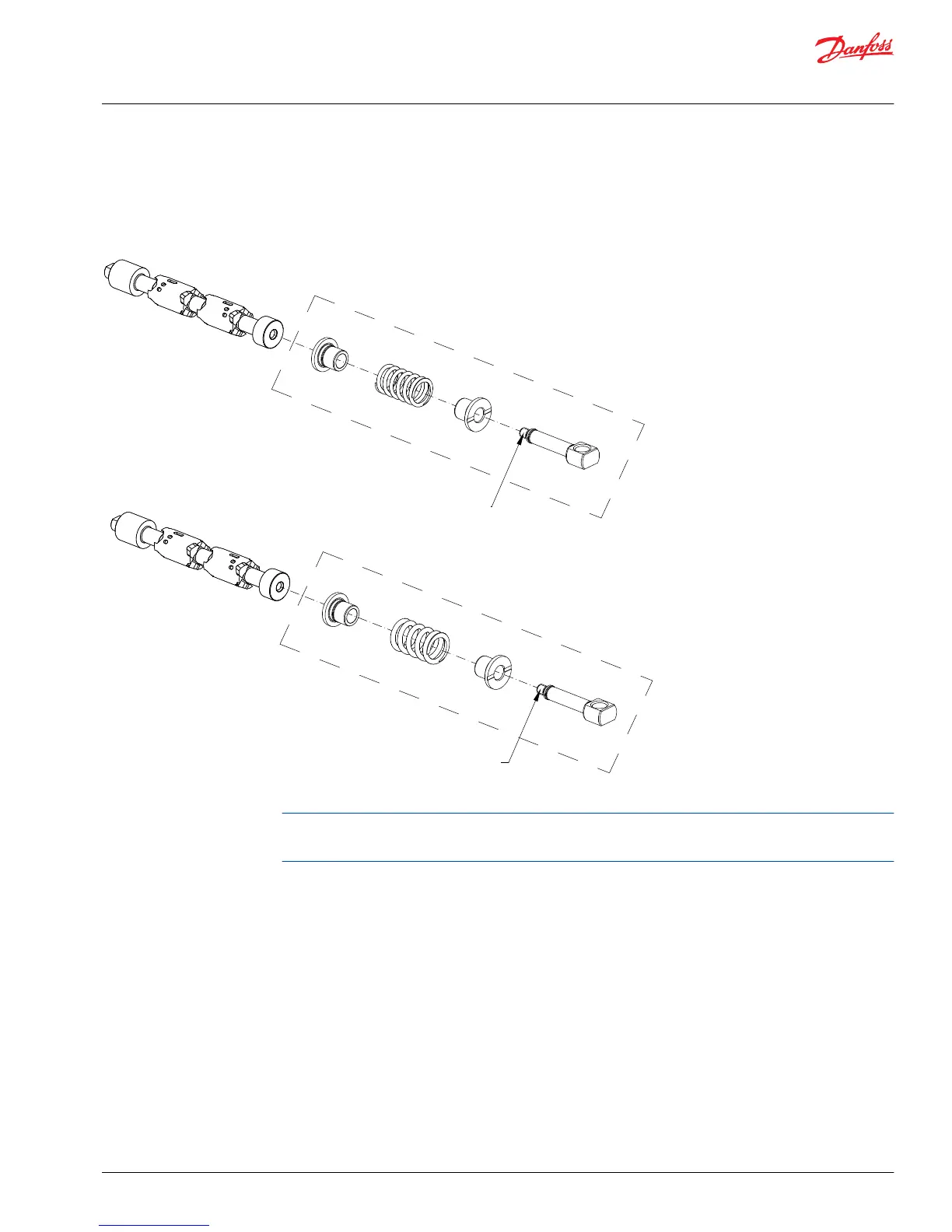

PVBS exploded view
16±2Nm
[141±18lbf-in]
16±2Nm
[141±18lbf-in]
Spool for PVE
Spool for PVH/PVHC
Do not use hole in tension bar for tightening spool assembly. Use a 17 mm wrench instead.
For spool part numbers, see PVG 128/256 Technical Information, pages 42-57.
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
