Danfoss PVG 256

PVG 16/32 PVS/PVSI end plates

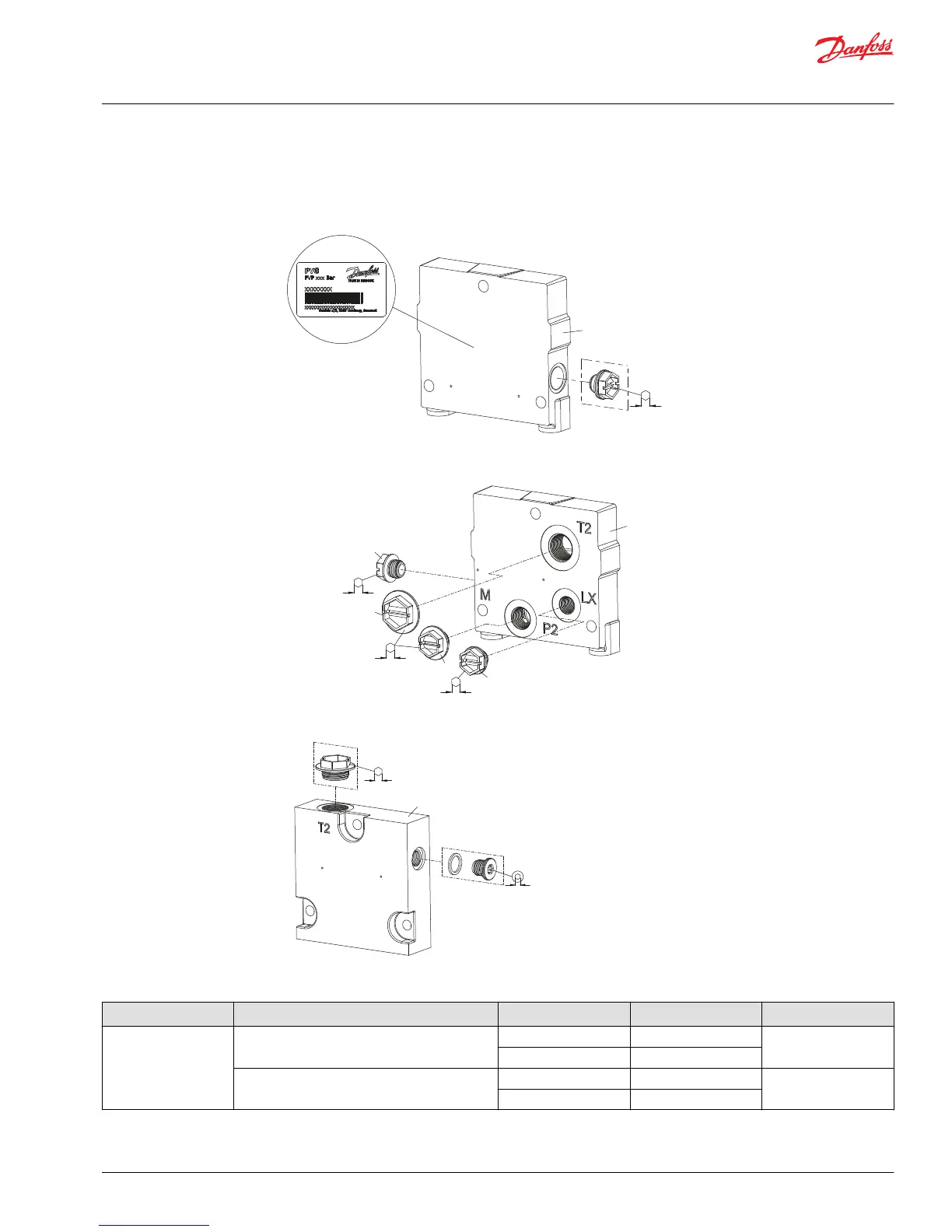

PVS/PVSI exploded view
2
1
5±0.5Nm
[44±4.4lbf-in]
PVSI with P, T, LX, and M connection exploded view
3
4
5
6
4
5±0.5Nm
[44±4.4lbf-in]
4±0.5Nm
[35±4.4lbf-in]
4±0.5Nm
[35±4.4lbf-in]
PVST with T connection exploded view
7
8
9
6[0.24]
30±3Nm
[266±27lbf-in]
5±0.5Nm
[44±4.4lbf-in]
PVS/PVSI kits
Type Description Mounting Code number Letter
PVS (Aluminum) End plate M8 157B2000 A
5/16-18 UNC 157B2020
End plate with LX-connection M8 157B2011 B
5/16-18 UNC 157B2021
