Danfoss PVG 256 User Manual

PVG 16 PVB with PVLP/PVLA, basic module

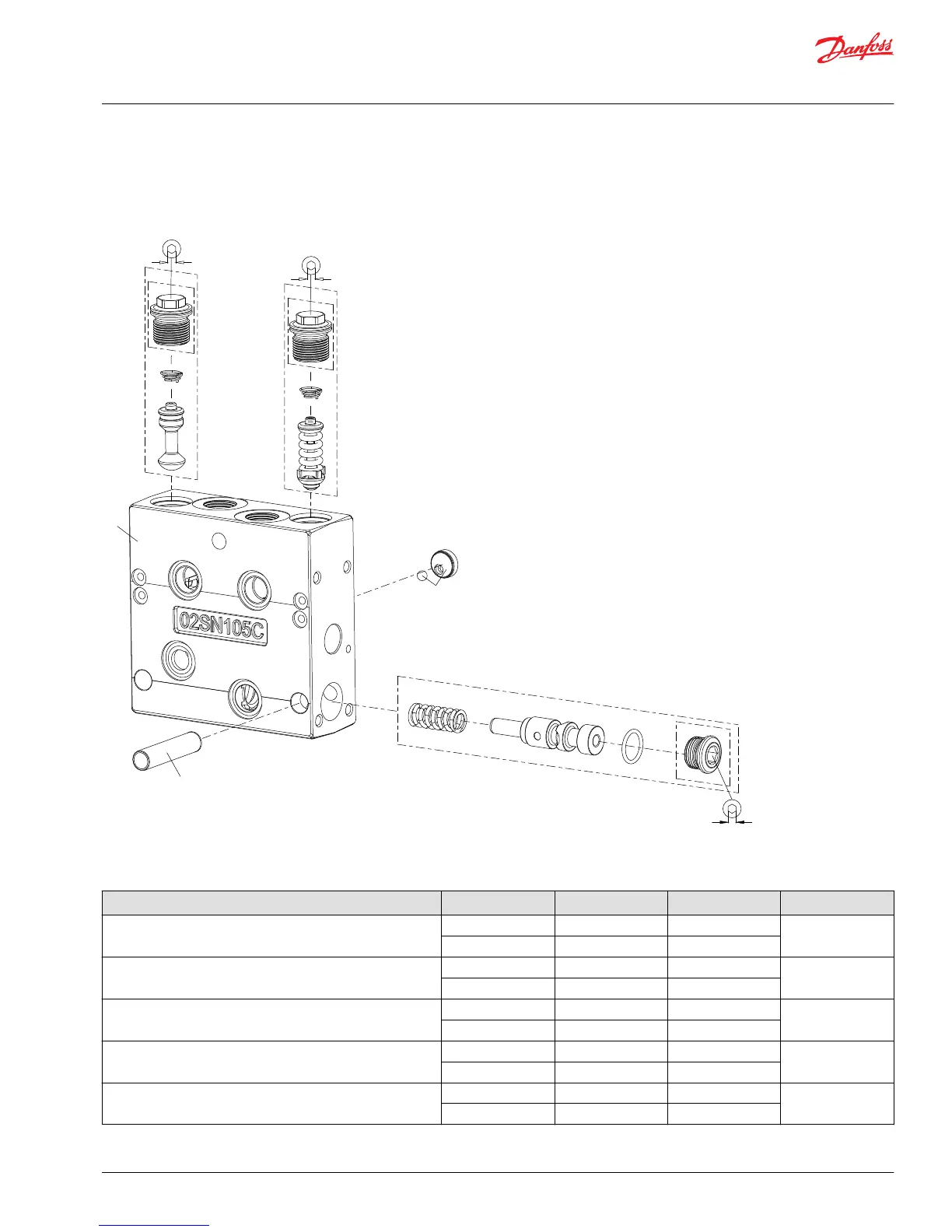

PVB with PVLP/PVLA exploded view
13[0.51]
35±3Nm
[310±27lbf-in]
13[0.51]
35±3Nm
[310±27lbf-in]
6[0.24]
30±3Nm
[266±27lbf-in]
4
2
3
4
1
8
6
7
5
PVB with PVLP/PVLA kits
Description Code number A-port B-port Letter
Compensated PVB 11130976 3/8” BSP 3/8” BSP A
11130977 3/4”-16 UNF 3/4”-16 UNF
Compensated PVB with PVLP/PVLA 11130978 3/8” BSP 3/8” BSP B
11130979 3/4”-16 UNF 3/4”-16 UNF
Non-Compensated PVB 11101421 3/8” BSP 3/8” BSP C
11106797 3/4”-16 UNF 3/4”-16 UNF
Non-Compensated PVB with check valve 11106801 3/8” BSP 3/8” BSP D
11101423 3/4”-16 UNF 3/4”-16 UNF
Non-Compensated PVB with PVLP/PVLA 11106754 3/8” BSP 3/8” BSP E
11106755 3/4”-16 UNF 3/4”-16 UNF
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
Danfoss | October 2018 AX284661889190en-000101 | 61
