Danfoss PVG 256

PVG 32 PVE series 7 PVEA

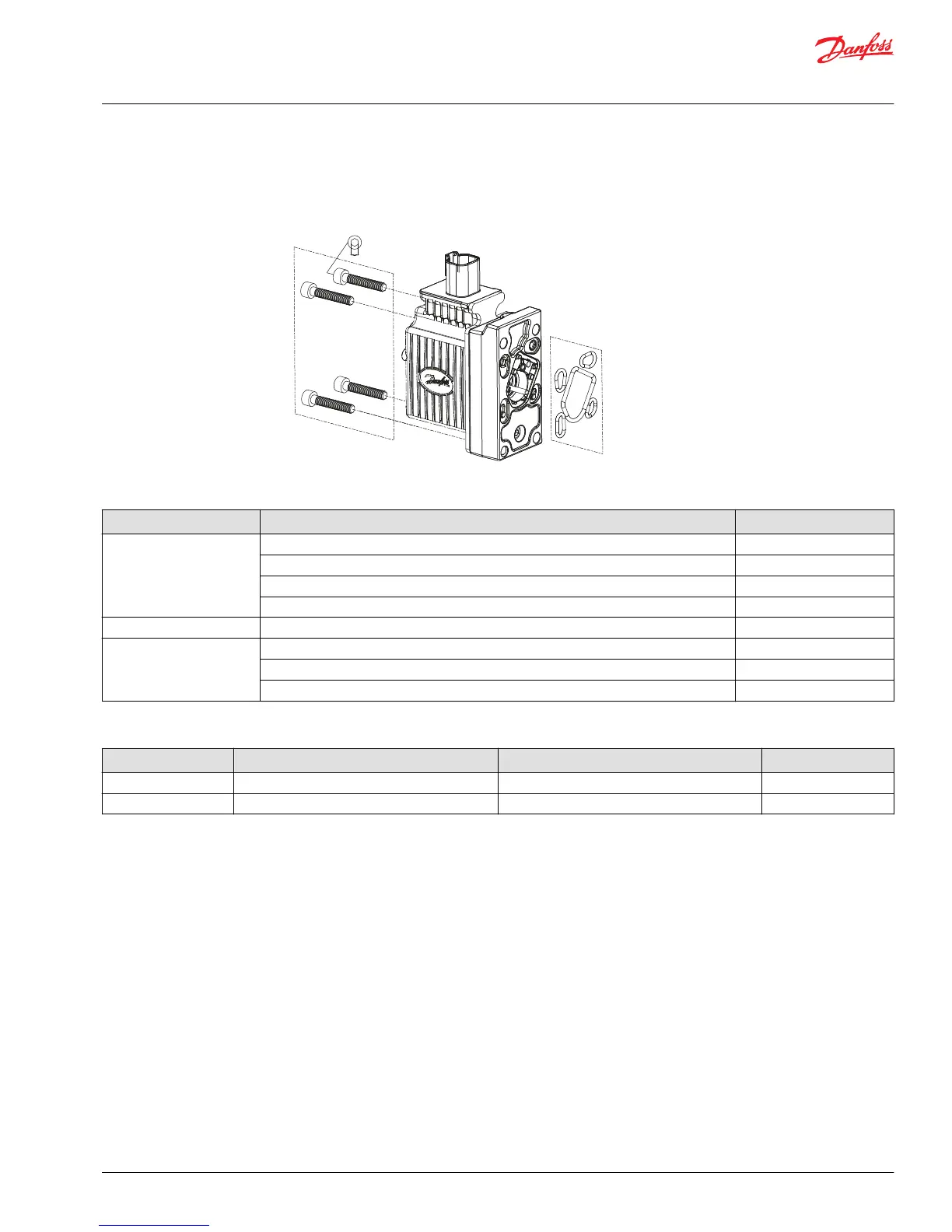

PVEA exploded view
1
5 [0.2]
8 ± 0.5 Nm
[70 ± 4.4 lbf in]
2
PVEA kits
Type Description Code number
PVEA 1x4 DEUTSCH - active 11177346
1x4 DEUTSCH - passive 11177347
1x4 AMP – active 11177353
1x4 AMP – passive 11177348
PVEA-NP 1x6 DEUTSCH – active 11177345
PVEA-DI 2x4 DEUTSCH – passive 11177357
2x4 AMP – active 11177356
2x4 AMP – passive 11177355
Parts list
Item Description Code number Amount
1 Screw - 4
2 Seal kit 157B3999 1
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
