Danfoss PVG 256

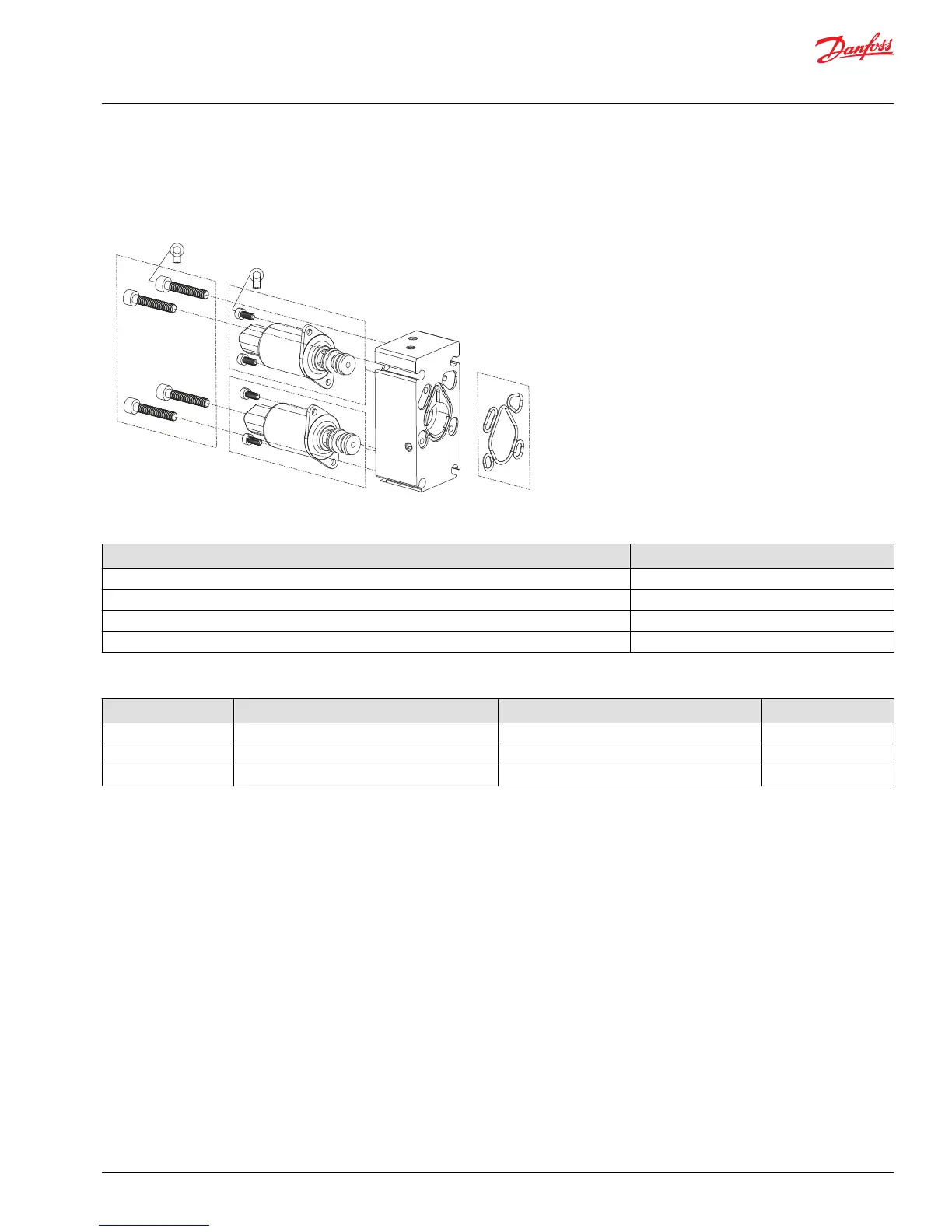

PVG 32 PVHC electrical actuation
PVHC exploded view
1
5 [0.2]
8 ± 0.5 Nm
[70 ± 4.4 lbf in]
3
4 [0.16]
3 Nm
[26.5 lbf in]
2
2
PVHC kits
Description Code number
AMP connector - 12 V 11112037
AMP connector - 24 V 11112036
DEUTSCH connector – 12 V 11112038
DEUTSCH connector – 24 V 11112039
Parts list
Item Description Code number Amount
1 Screw - 4
2 Solenoid valve - 2
3 Seal kit 157B3999 1
Service and Parts Manual
PVG 16/32/128/256
Service Parts
©
