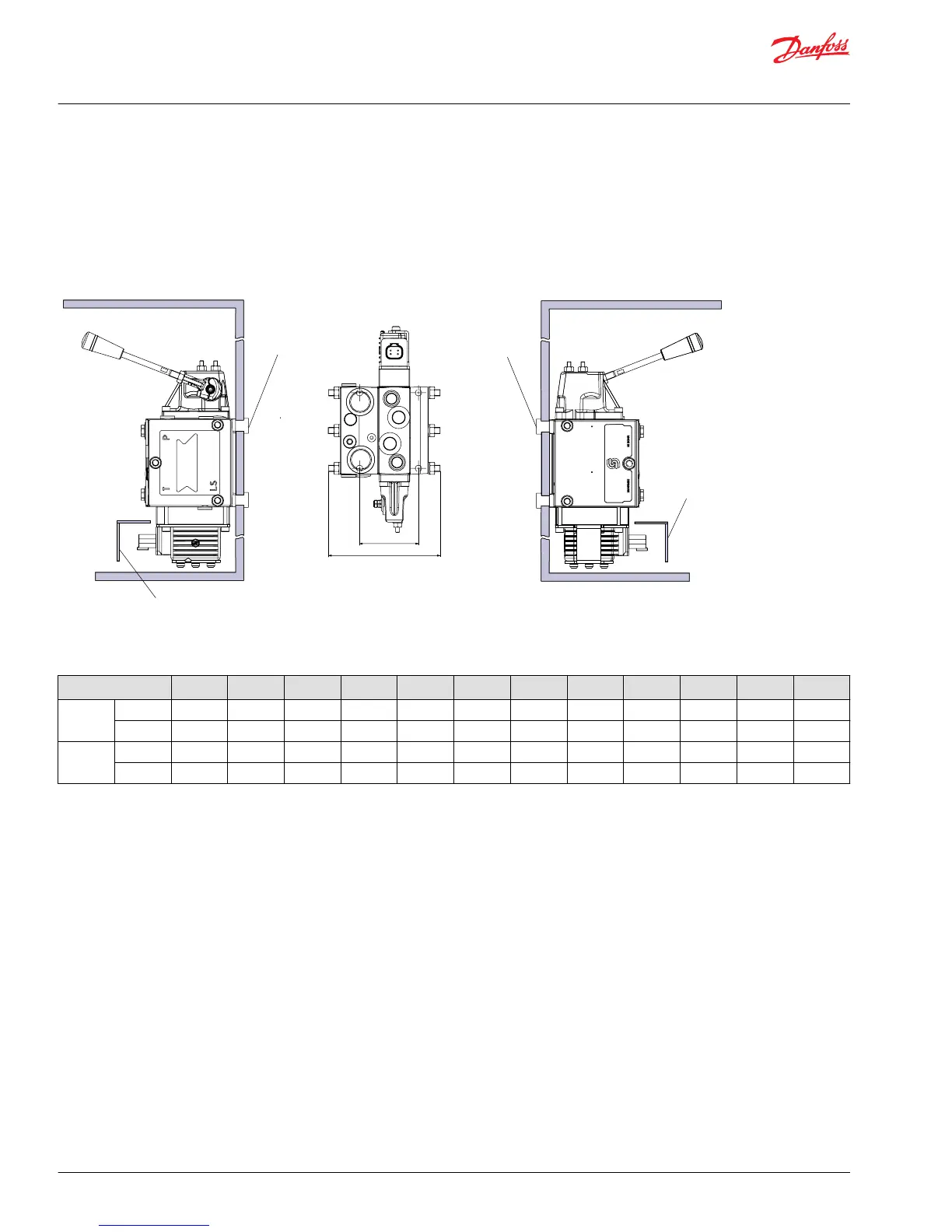

PVG 16 Plug orientation
The plug/port orientation shows dimensions of assembled product based on number of PVB used and
data on mounting threads.
In particularly exposed applications,
protection in the form of screening
of the electrical actuator is recommended
Mounting thread:
M8 x min 10 mm or
5/16-18 x min 0,39 in
Torque:
PVS: 20 N•m [177 lbf•in]
PVSI: 40 N•m [354 lbf•in]
Mounting thread:
M8 x min 10 mm or
5/16-18 x min 0.39 in
Torque:
40 N•m [354 lbf•in]
L2
L1
In particularly exposed
applications, protection in
the form of screening of the
electrical actuator is
recommended
Dimensions
No. of PVB 16 1 2 3 4 5 6 7 8 9 10 11 12
L1 mm 74 114 154 194 234 274 314 354 394 434 474 514
[in] [2.91] [4.49] [6.06] [7.64] [9.21] [10.79] [12.36] [13.94] [15.51] [17.09] [18.66] [20.24]
L2 mm 140 189 213 262 311 336 385 434 458 507 551 576
[in] [5.51] [7.44] [8.39] [10.31] [12.24] [13.23] [15.16] [17.09] [18.03] [19.96] [21.69] [22.68]
Service and Parts Manual
PVG 16/32/128/256
Installation
12 |
©
Danfoss | October 2018 AX284661889190en-000101
