Danfoss PVG 256

PVG 128/256 PVH hydraulic actuation

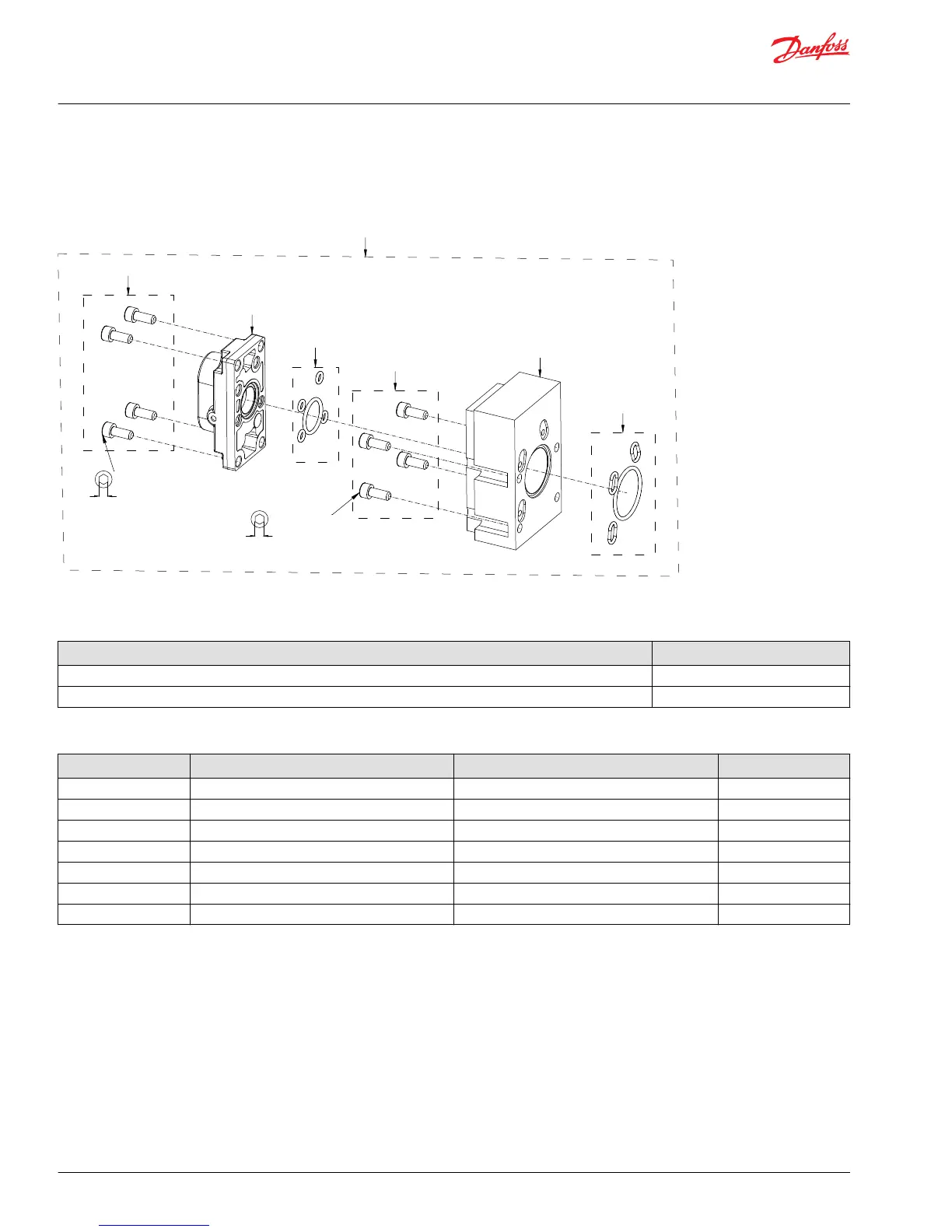

PVH exploded view
2
3
4
5
6
7
1
8±0.5 Nm
[70±4.5 lbf·in]
5[0.20]
8±0.5 Nm
[70±4.5 lbf·in]
5[0.20]
E103 670
PVH kits
Description Code number
G1/4" BSP 11187777
9/16"-18 UNF 11187776
Parts kits
Item Description Code number Amount
1 Assembly - 1
2 Screw kit - 1
3 PVH cover, including 2 and 4 157B0008 1
4 Seal kit 157B3999 1
5 Screw kit - 1
6 Interface block - inverted - 1
7 Seal kit 11191632 1
Service and Parts Manual
PVG 16/32/128/256
Service Parts
