Danfoss VLT AHF 005 Design Guide

316 (12.4)
179 (7.0) 135 (5.3)
80 (3.1) 36 (1.4)
0.0
130BF582.10
244 (9.6)
0.0
151 (5.9)
440 (17.3)
548 (21.6)
1
2
1 Mains terminals 2 Ground bar

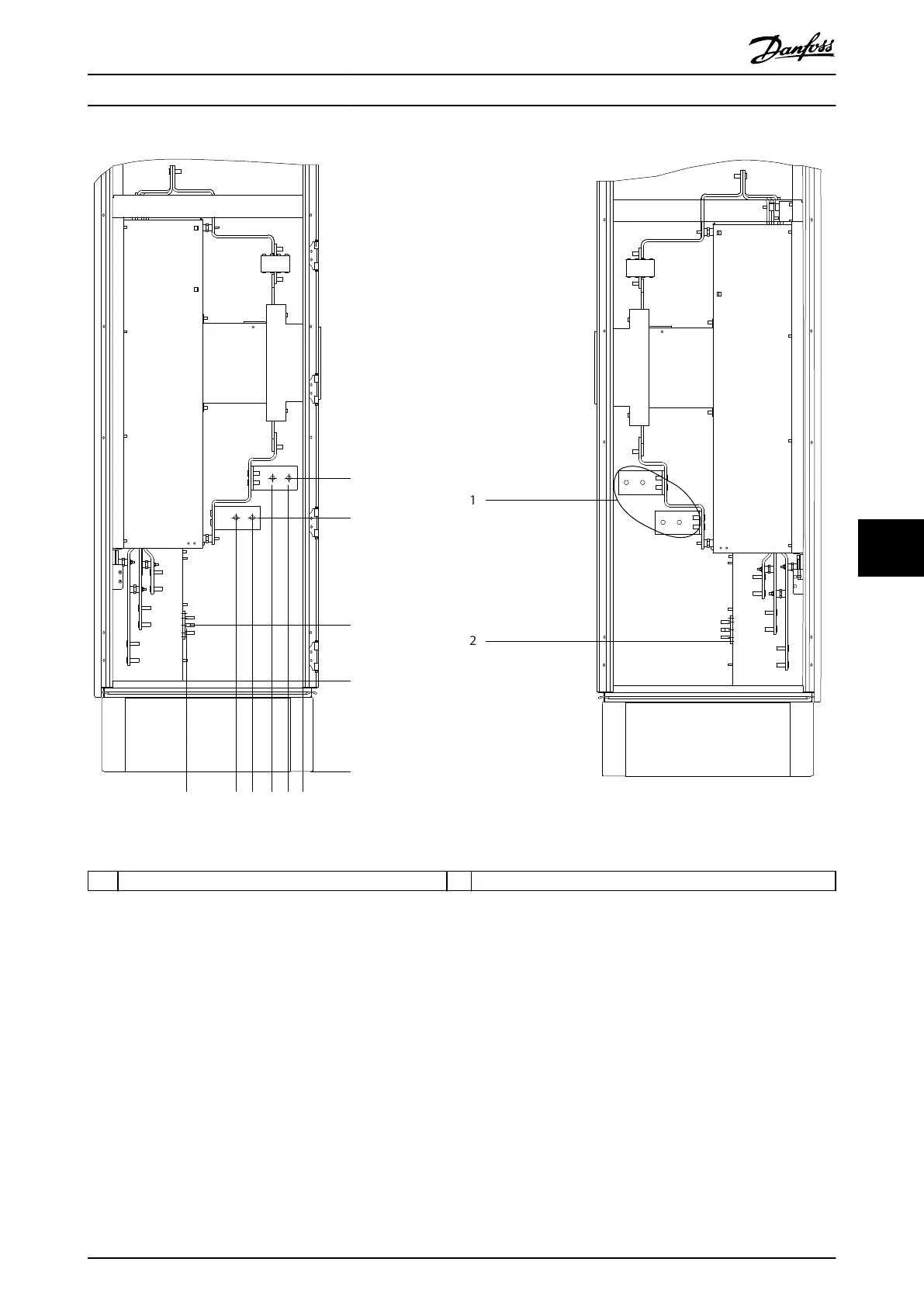

Illustration 8.75 Terminal Dimensions for F11/F13 Options Cabinet, Side View
Exterior and Terminal Dimen... Design Guide
MG16C302 Danfoss A/S © 11/2017 All rights reserved. 139
8 8
