Danfoss VLT AHF 005 Design Guide

10.3 Connections
10.3.1 Power Connections
NOTICE
All cabling must comply with national and local
regulations on cable cross-sections and ambient
temperature. UL applications require 75 °C (167 °F)
copper conductors. Non-UL applications can use 75 °C
(167 °F) and 90 °C (194 °F) copper conductors.
The power cable connections are located as shown in
Illustration 10.2. See chapter 7.6 Cable Specications for
correct dimensioning of motor cable cross-section and
length.
For protection of the drive, use the recommended fuses
unless the unit has built-in fuses. Recommended fuses are
listed in chapter 10.5 Fuses and Circuit Breakers. Ensure that
proper fusing complies with local regulations.
The connection of mains is
tted to the mains switch if
included.
3 Phase
power
input
130BA026.10
91 (L1)
92 (L2)
93 (L3)
95 PE

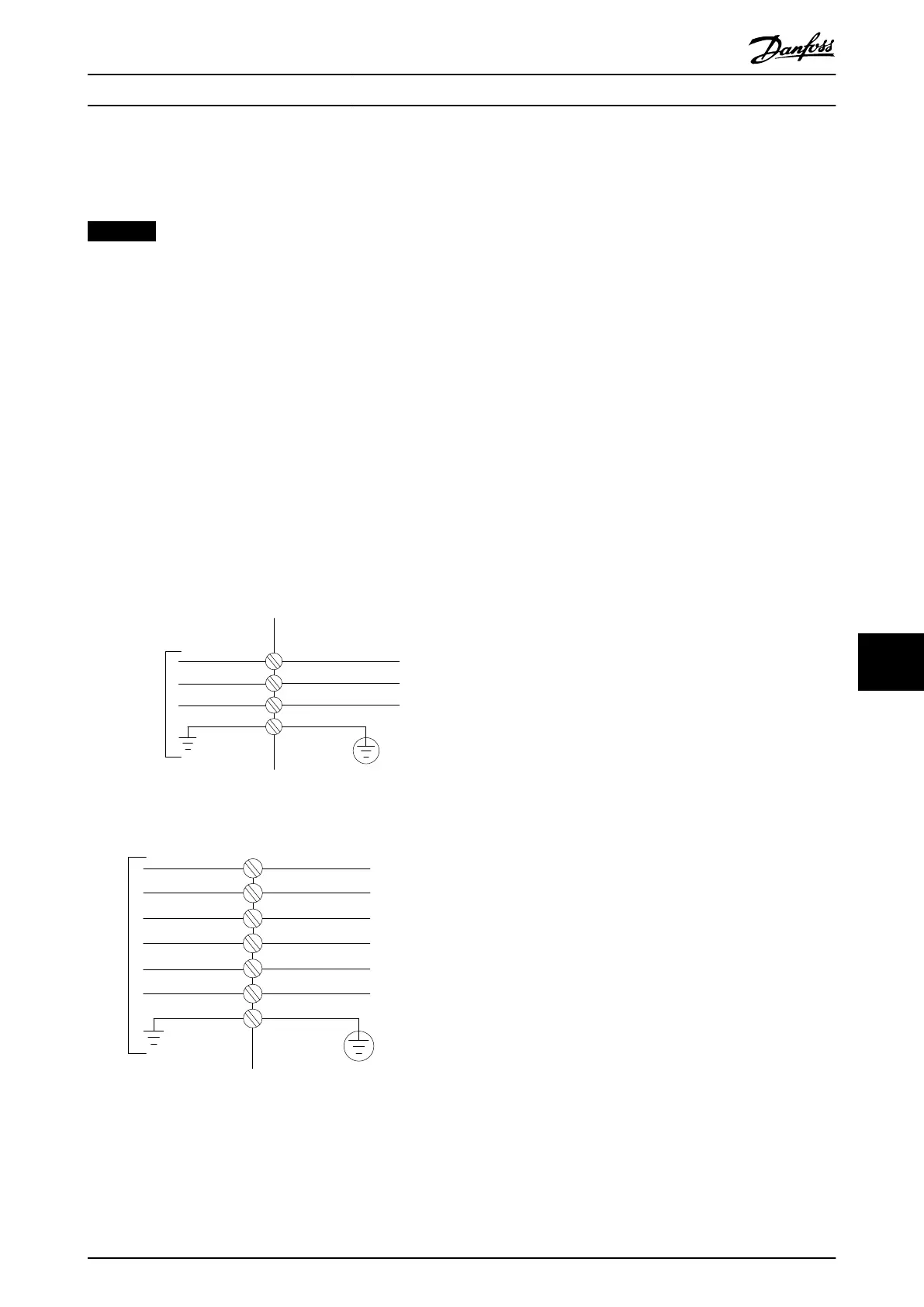

Illustration 10.2 Connection of Mains, Enclosures E1–E2 and
F1–F4
6 Phase
power
input
130BB693.10
91-1 (L1-1)
92-1 (L2-1)
93-1 (L3-1)
91-2
92-2
93-2
95 PE
(L2-2)
(L1-2)
(L3-2)
Illustration 10.3 Connection of Mains, Enclosures F8–F13
Electrical Installation Con... Design Guide
MG16C302 Danfoss A/S © 11/2017 All rights reserved. 167
10 10
