8.11.2 F12 Terminal Dimensions
Power cables are heavy and hard to bend. To ensure easy installation of the cables, consider the optimum placement of the
drive. Each terminal allows up to 4 cables with cable lugs or a standard box lug. Ground is connected to a relevant
termination point in the drive.
2
3
130BF645.10
R2/L12
R1/L11
91-1
91
S2/L22
S1/L21
92-1 T2/L32 93-1
92
T1/L31 93
U/T1 96 V/T2 97 W/T3 98
0.0
58 (2.3) 74 (2.9)
100 (3.9) 139 (5.5) 173 (6.8) 189 (7.4) 199 (7.8)
288 (11.3) 304 (12.0) 407 (16.0) 464 (18.2) 522 (20.6) 524 (20.6) 630 (24.8) 637 (25.1)
1
1 Mains terminals 2 Ground bar

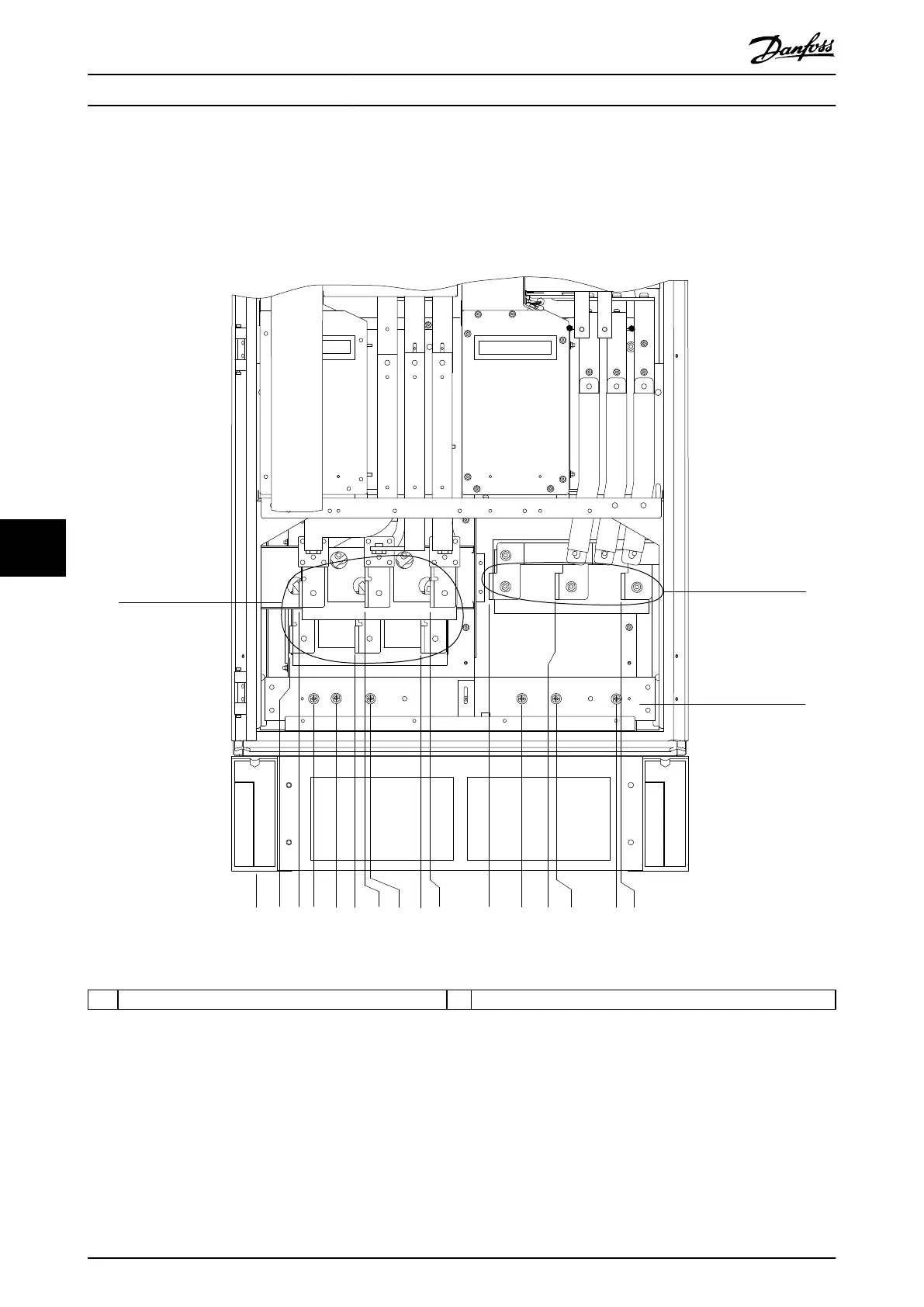

Illustration 8.82 Terminal Dimensions for F10–F13 Rectier Cabinet, Front View
