1 PLC 10 Mains cable (unshielded)
2
Minimum 16 mm
2
(6 AWG) equalizing cable
11 Output contactor
3 Control cables 12 Cable insulation stripped
4 Minimum 200 mm (7.9 in) between control cables, motor
cables, and mains cables.
13 Common ground busbar. Follow local and national
requirements for cabinet grounding.
5 Mains supply 14 Brake resistor
6 Bare (unpainted) surface 15 Metal box
7 Star washers 16 Connection to motor
8 Brake cable (shielded) 17 Motor
9 Motor cable (shielded) 18 EMC cable gland

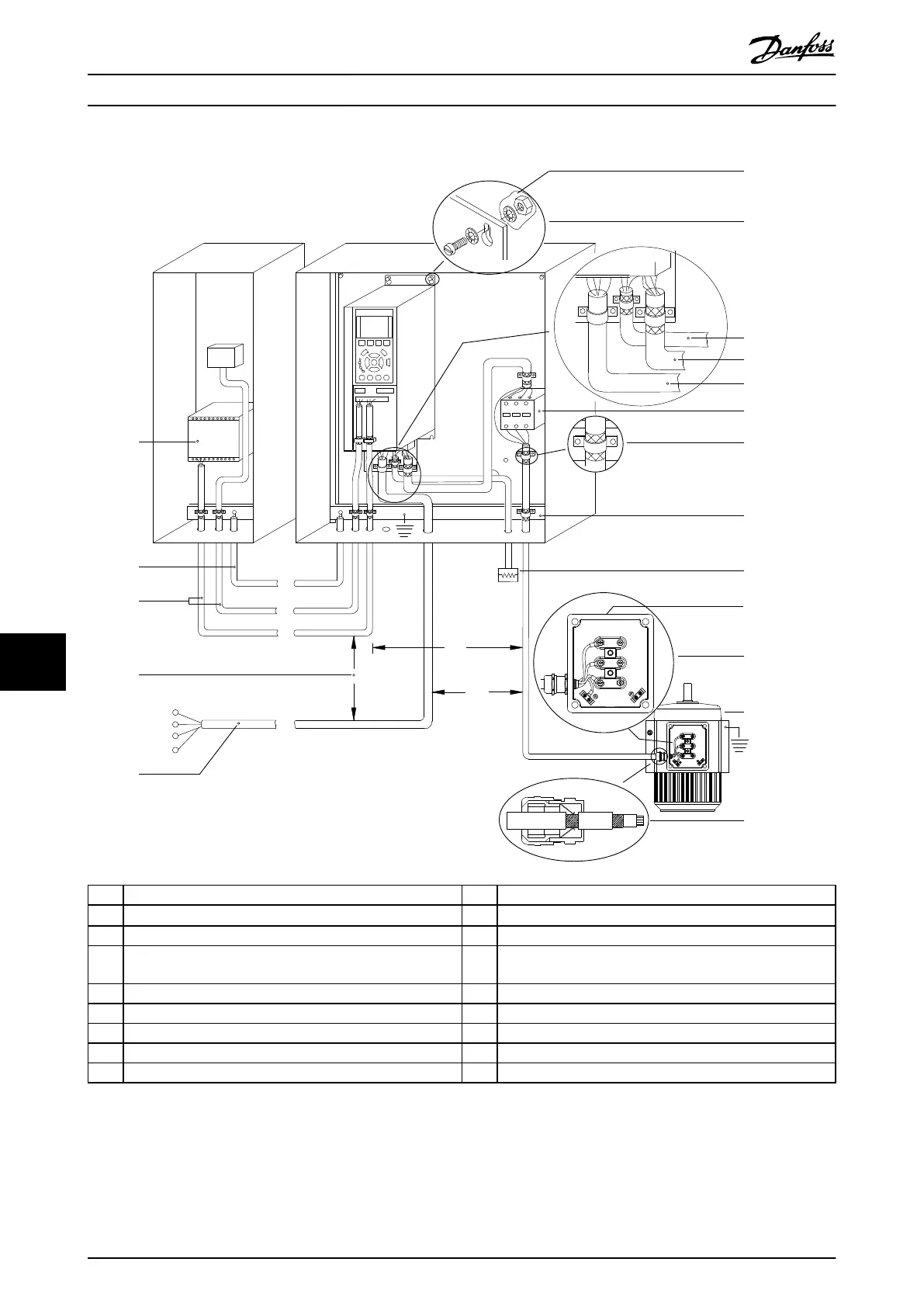

Illustration 10.28 Example of Proper EMC Installation
