Danfoss VLT AHF 005 Design Guide

130BF612.10
216 (8.6)
668 (26.3)
38 (1.5)
593 (23.3)
460 (18.1)
535 (21.1)
282 (11.1)
36 (1.4)
1
533 (21.0)
596 (23.4)
1329 (52.3)
200 (7.9)
258 (10.2)
36 (1.4)
1 Mains side 2 Motor side

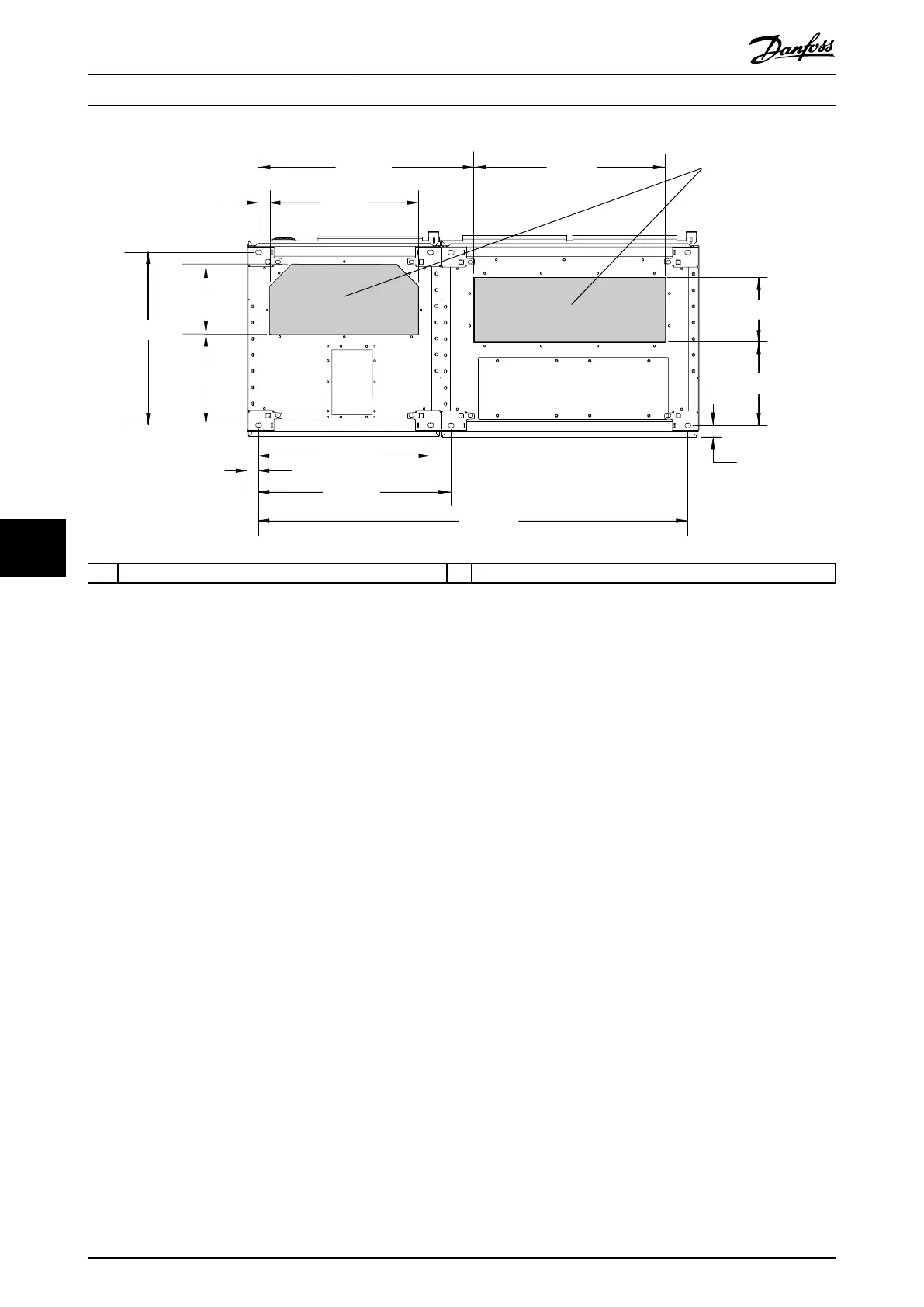

Illustration 8.20 Gland Plate Dimensions for F1
Exterior and Terminal Dimen...
VLT
®
HVAC Drive FC 102
84 Danfoss A/S © 11/2017 All rights reserved. MG16C302
