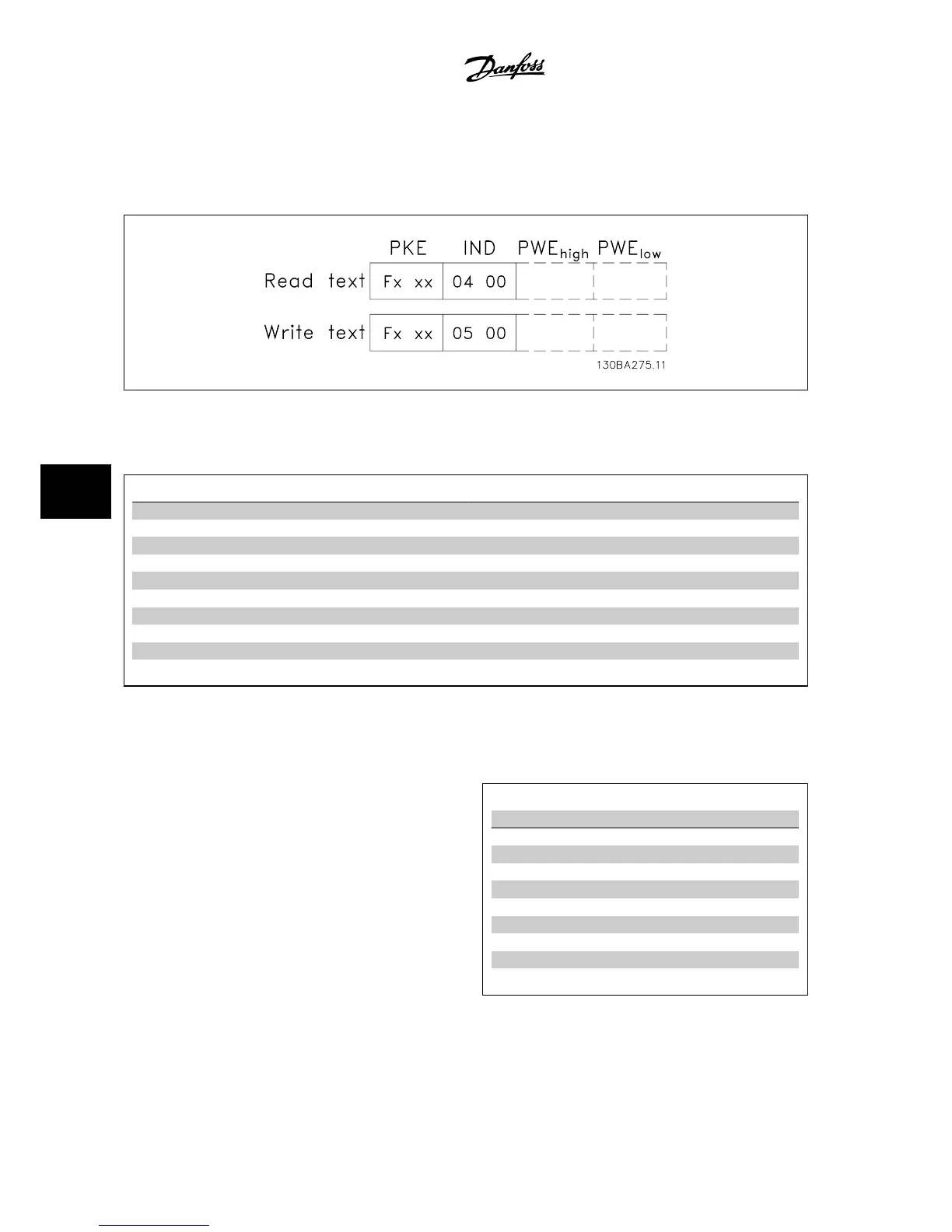

To read a text via the PWE block, set the parameter command (AK) to ’F’ Hex. The index character high-byte must be “4”.
Some parameters contain text that can be written to via the serial bus. To write a text via the PWE block, set the parameter command (AK) to ’F’ Hex.
The index character's high-byte must be "5".
7.4.11 Data Types Supported by VLT AQUA
Data types Description
3 Integer 16
4 Integer 32
5 Unsigned 8
6 Unsigned 16
7 Unsigned 32
9 Text string
10 Byte string
13 Time difference
33 Reserved
35 Bit sequence
Unsigned means that there is no operational sign in the message.
7.4.12 Conversion
The various attributes of each parameter are displayed in the section
Factory Settings. Parameter values are transferred as whole numbers
only. Conversion factors are therefore used to transfer decimals.
par. 4-12
Motor Speed Low Limit [Hz] has a conversion factor of 0.1.
To preset the minimum frequency to 10 Hz, transfer the value 100. A
conversion factor of 0.1 means that the value transferred is multiplied by
0.1. The value 100 is thus perceived as 10.0.
Conversion table
Conversion index Conversion factor
74 0.1
2 100
110
0 1
-1 0.1
-2 0.01
-3 0.001
-4 0.0001
-5 0.00001
7 RS-485 Installation and Set-up VLT
®
AQUA Drive Design Guide
7-10 MG.20.N5.22 - VLT
®
is a registered Danfoss trademark
7
