Danfoss vlt aqua Design Guide

3.6.2 General Purpose Input Output Module MCB 101
MCB 101 is used for extension of the number of digital and analog inputs
and outputs of the VLT AQUA Drive.
Contents: the MCB 101 must be inserted into slot B in the VLT
AQUA Drive.
• MCB 101 option module
•Extended LCP frame
• Terminal cover
Galvanic Isolation in the MCB 101
Digital/analog inputs are galvanically isolated from other inputs/outputs on the MCB 101 and in the control card of the drive. Digital/analog outputs in
the MCB 101 are galvanically isolated from other inputs/outputs on the MCB 101, but not from the ones on the control card of the drive.
If digital inputs 7, 8 or 9 are to be switched using the internal 24 V power supply (terminal 9), the connection between terminal 1 and 5 illustrated in the
drawing has to be established.

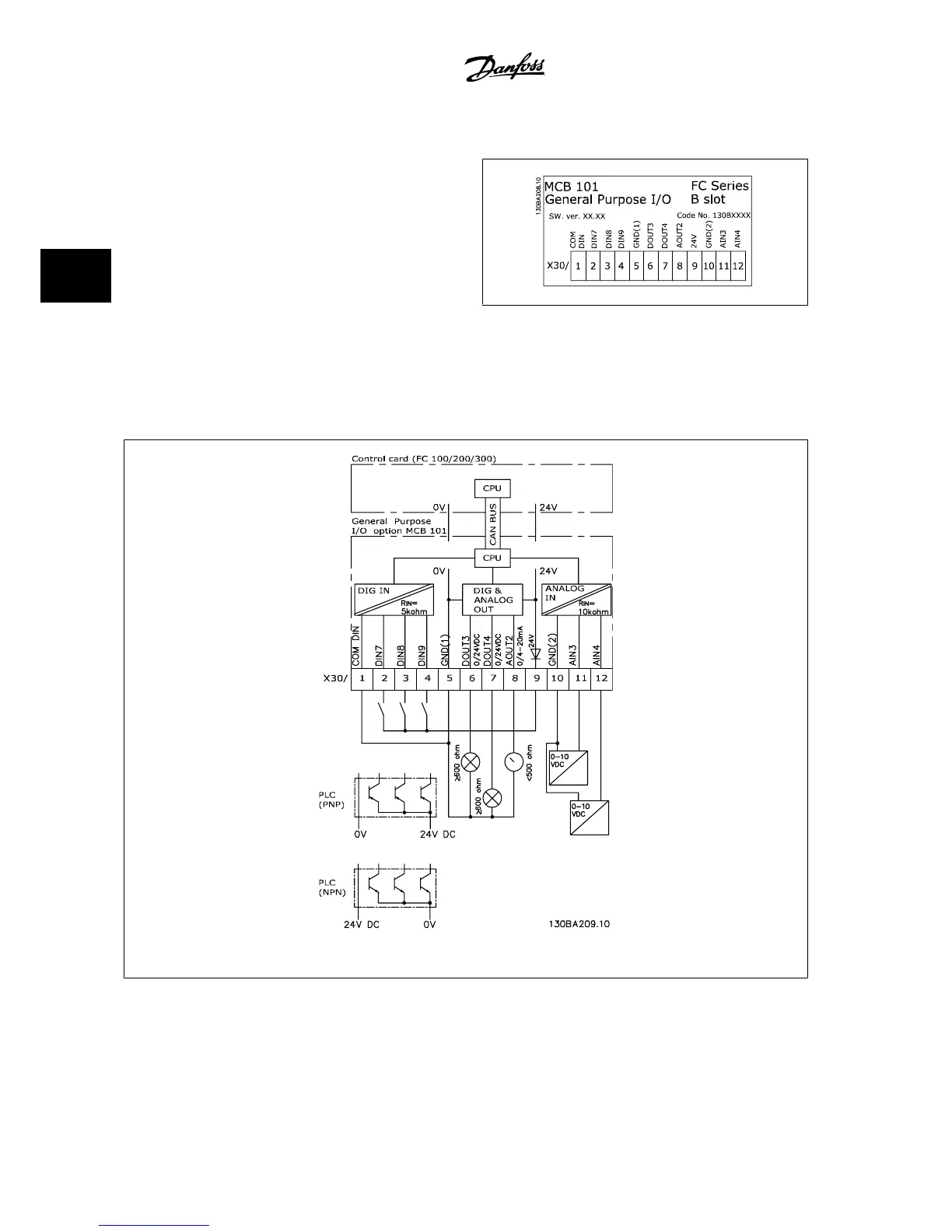

Figure 3.20: Principle Diagram
3 VLT AQUA Selection VLT
®
AQUA Drive Design Guide
3-32 MG.20.N5.22 - VLT
®
is a registered Danfoss trademark
3

Danfoss vlt aqua Specifications

General

Supply Voltage	200-240V, 380-500V, 525-600V
Enclosure	IP20
Features	Energy optimization
Approvals	CE, UL, cUL
Input Voltage Range	200-240V, 380-500V, 525-600V
Output Voltage Range	0 to supply voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Ground fault
Communication Interfaces	PROFIBUS
Cooling Method	Air-cooled
